Fluent Conveyors supplies staple splice kits for heavy-duty conveyor belts. Field-installable mechanical fastening systems for solid woven PVG/PVC belting and ply belts in mining, aggregate, recycling, and other demanding industries.
efficient conveyor maintenance.

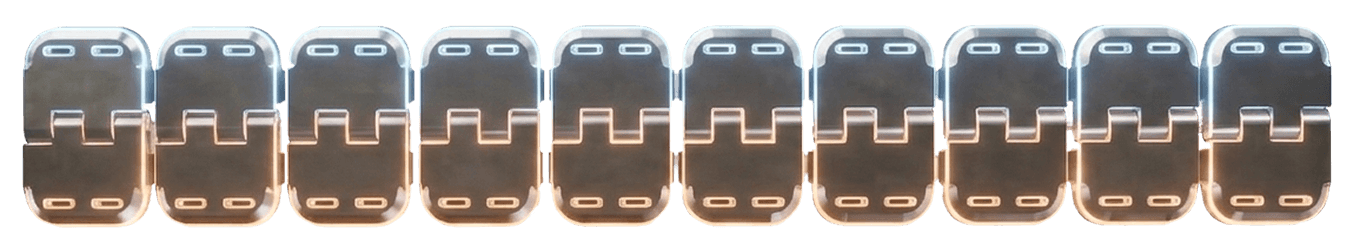

Staple splice systems use solid plate fasteners with preset staples that create permanent mechanical belt connections. Cold-rolled steel plates provide uniform mechanical properties and increased tensile strength.

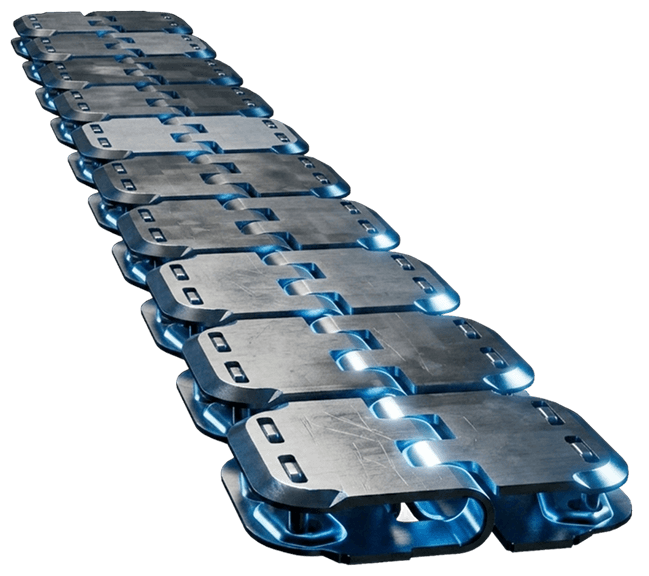

The installation process compresses the plate while driving and folding staples through both belt ends in a single operation. A hinge pin inserted through loops on each plate completes the finished connection, allowing the belt to flex around pulleys.
Features:
Belt thickness: 1/4"–25/32" (6–20 mm) after skive
PIW rating: 800–2000 PIW, depending on size
Minimum pulley diameter: 10"–20" (250–500 mm) depending on size
Installation methods: Manual applicator, hydraulic applicator, or pneumatic applicator
Available sizes: XP3, XP3-L, XP5, XP5-L, XP7, XP8, XP8-L
Material options: Steel fastener plates, stainless steel fastener plates
Hinge pin types: Bare armored cable, nylon-covered armored cable, stainless armored cable
Choose an installation method based on splice volume, available infrastructure, and portability requirements. All methods use identical fasteners and produce equivalent splice quality.

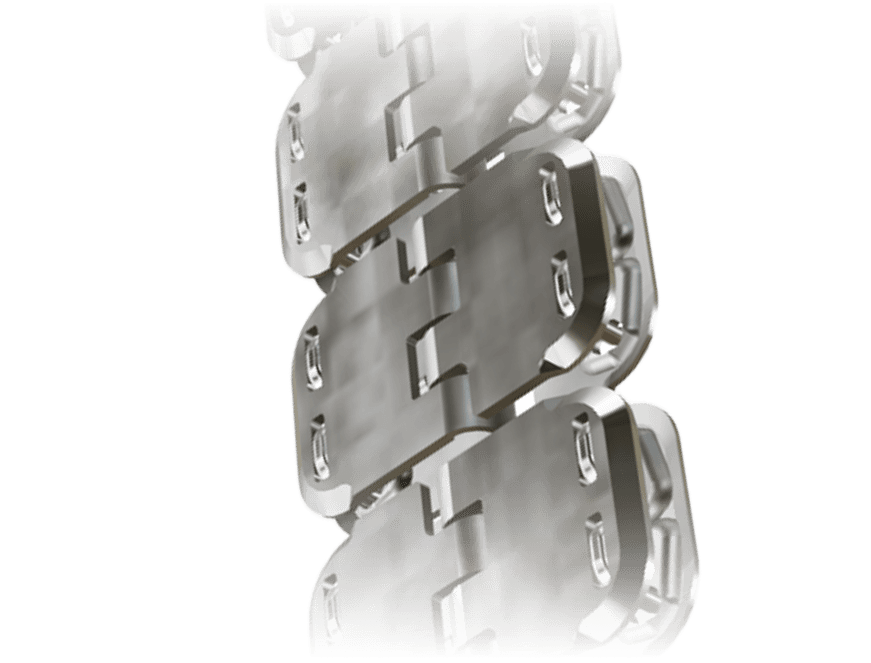

Measure your belt thickness after skiving (if countersunk installation is required). Staple systems accommodate belts from 1/4" to 25/32", depending on the fastener size selected.
If your application requires countersunk fasteners, remove a portion of the belt cover material before measuring. The skived belt thickness determines fastener size selection.
Standard and long (-L) versions within each size category provide different staple lengths for optimal penetration across varying thickness ranges within the same tension rating.

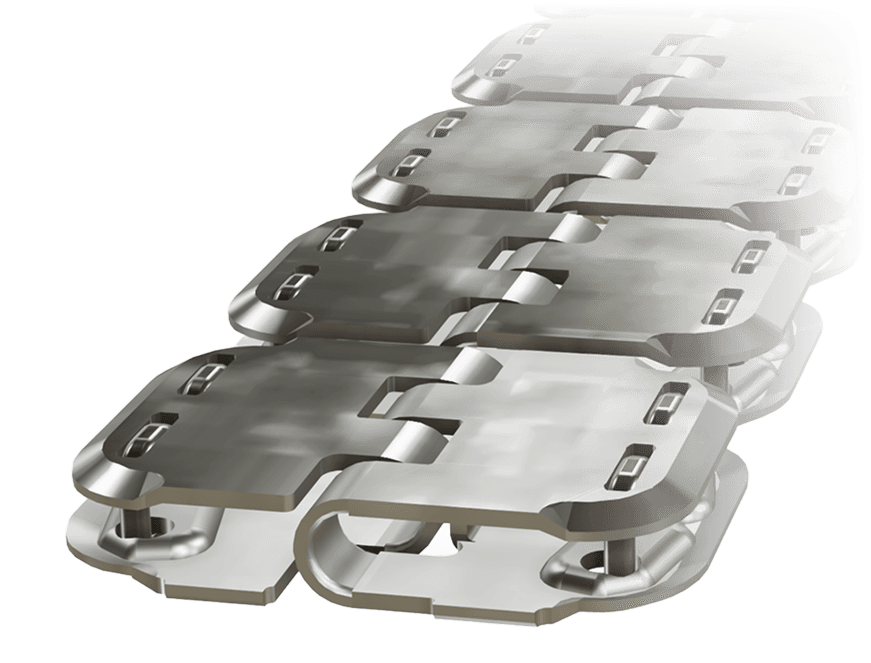

The minimum pulley diameter specification prevents excessive hinge stress and premature fastener wear. Measure the smallest pulley in your system where the belt makes at least a 90° wrap.
Staple systems require larger pulleys than lighter-duty fastening options. For self-cleaning wing-type pulleys, subtract 20% from the overall diameter to calculate the effective minimum diameter. Never install fasteners on pulleys smaller than specified.
Match the fastener rating to your belt's rated strength, measured in pounds per inch of width (PIW) or kN/m. The fastener rating must equal or exceed the belt rating to prevent splice failure under load.
Staple systems provide ratings from 800–2000 PIW.
Select fasteners compatible with your belt construction:
Solid woven PVG/PVC belts: Primary application for staple splice systems
Ply belts: Rubber-plied belting with multiple layers
Belts requiring skiving: Systems accommodate countersunk installations after cover removal
Consider operating environment and material compatibility:
Corrosion resistance: Stainless steel fastener plates available for corrosive environments, wet mine conditions, and chemical exposure
Mining applications: Steel and stainless options withstand abrasive materials and impact loading in underground and surface operations
Temperature extremes: Verify material compatibility for your operating temperature range
Outdoor installations: Stainless steel provides extended service life in weather-exposed applications
Select hinge pin material based on application: bare armored cable for heavy-duty mining, nylon-covered armored cable for dry conditions with pin migration concerns, stainless armored cable for corrosive or wet environments.
Designed to provide reliable performance and efficient conveyor belt maintenance solutions.
Cold-rolled steel plates with pre-inserted staples that compress and fold during installation. Plates are cut to length for standard belt widths (40"–72") in both steel and stainless steel materials. Each size is available in standard and long (-L) versions to accommodate different belt thickness ranges. Fastener packages contain enough plate strips to complete one splice at the specified belt width.
Material options:
Steel plates: Standard galvanized steel provides rust and corrosion protection for most industrial applications
Stainless steel plates: 300 series stainless steel for superior corrosion resistance in chemical plants, wet mine conditions, marine environments, and food processing operations
Bare armored cable pins (XAC): Heavy-duty, long-wearing pins for underground mining and demanding industrial applications. Armor wrapping protects interior wires from abrasion and impact damage.
Nylon-covered armored cable pins (XNAC): Combines armored steel core with smooth nylon covering for extended service life in dry conditions. Covering prevents pin migration during operation. Not recommended for wet or highly abrasive environments where nylon will degrade.
Bare armored stainless cable pins (XACS): Stainless steel construction provides maximum corrosion resistance for wet applications, chemical exposure, salt environments, and food-grade facilities.
Hinge pin retaining collars: Prevent pin migration through knurled point screws with self-locking nylon patches. Recommended for all installations to secure hinge pins during operation.
Hinge pins are ordered separately from fastener plates. Pin diameter and length must match the fastener size selected (XP3, XP5, XP7, or XP8).
Tool availability varies by system and purchase configuration. Options include:
Installation frames and applicators
Manual applicator with quick-adjust handle and integrated belt stops
Hydraulic applicator with single-lever compression and staple driving
Pneumatic applicator for compressed air-powered installation
Tool frames in multiple lengths to match belt widths (40"–72")
Integrated guide plates for easier belt loading on all frames
Belt preparation equipment
Single-blade belt skiver removes belt cover material for countersunk installations (maximum skive per pass: 10 mm / 3/8")
Belt thickness gauge measures belt for proper fastener size selection
Fastener selection gauge confirms correct size based on belt sample
Installation accessories
Sift Stop foam strips create sealed joints to prevent material sifting
XP-LOK tape prevents belt ripple for smooth operation over pulleys and under scrapers
Belt stops position fasteners accurately on belt ends
Complete tool kits
Comprehensive packages including applicator, frame, skiver, gauges, and storage case
Available for manual, hydraulic, or pneumatic installation preferences
Configured for specific belt width ranges and splice frequency requirements

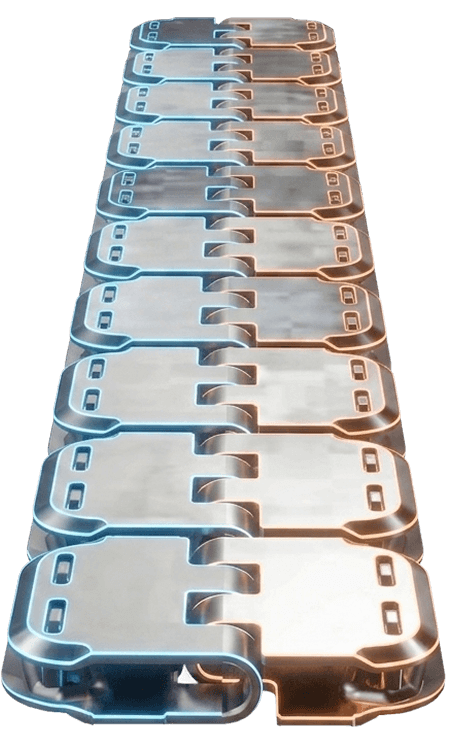

If you're shopping for splice kits because your belt is damaged, worn, or reaching end of life, a complete replacement belt may be more cost-effective than field splicing. Fluent supplies custom replacement conveyor belts cut to your specifications with factory-installed mechanical or vulcanized splices.
When you replace your belt with Fluent, you get:
Contact us about replacement belts with factory splicing. We'll help you determine whether a splice kit or complete belt replacement provides better value for your application. We can also match you with a regional dealer that can handle the install and provide ongoing support and maintenance.
Fluent Conveyors designs and manufactures conveyors for recycling, waste management, and other heavy industries. We understand how mechanical fasteners perform because we prepare custom belts with them every day.
Our engineering team provides technical guidance on splice kit selection, belt compatibility, and installation procedures grounded in hands-on conveyor manufacturing experience. Whether you need replacement splice kits for existing equipment or specifications for a new custom conveyor, contact us about your application, and enjoy working with the conveyor experts.
