Fluent Conveyors supplies Flexco Alligator splice kits for light- to medium-duty conveyor belt applications. Flexible installation options for field maintenance, emergency repairs, and new belt installations.
in demanding operations.
Various alligator fastening system types for different conveyor belt applications.

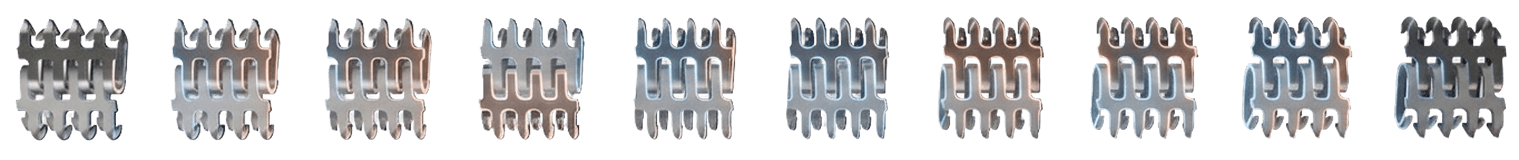

Hinged continuous-tooth lacing design provides low-profile splices with uniform tension distribution across belt width. Lacing fasteners install into both belt ends and join with a hinge pin that allows the conveyor belt to flex around pulleys. The one-piece fastener strip keeps loose pieces from working themselves out of the belt and into the conveyed product.
Features:
Belt thickness: Up to 1/2" (12.7 mm)
PIW rating: 25–200 PIW, depending on size
Minimum pulley diameter: 1"–14" (25–356 mm) depending on size
Installation method: Hammer only (no special tools required)
Available sizes: 00, 1, 7, 15, 20, 25, 27, 35, 45, 55, 65
Hinge pin types: Corrugated steel or nylon, depending on application
Material options: Steel (plated for rust and corrosion resistance), 300 series stainless steel
Applications: Light- to medium-duty conveyors, any belt width configuration, package and parts conveying, food and sanitary contact, agricultural harvesting and handling, recycling and scrap handling, wood products.
One-piece fastener strips with pre-inserted staples enable rapid field installation. Staple systems use specialized installation tools with guide blocks and final set plates for consistent fastener seating and splice quality.
Features:
Belt thickness: 1/16"–1/4" (1.5–6.4 mm) depending on size
PIW rating: 100–200 PIW, depending on size
Minimum pulley diameter: 2"–4" (50–102 mm) depending on size
Installation method: Installation tool with hammer (portable lightweight tooling)
Available sizes: RS125, RS187, and standard staple sizes
Material options: Steel, 316 stainless steel, 430 stainless steel, MegAlloy
Applications: Packaging lines, distribution centers, small pulley applications, light-duty conveyors requiring fast installation, emergency field repairs.
Rivet-based mechanical fasteners withstand high-abuse applications. Rivet systems provide strong mechanical attachment with corrosion-resistant material options.
Features:
Belt thickness: 3/16"–1/4" (5–5.8 mm)
PIW rating: Up to 300 PIW
Minimum pulley diameter: 3.5" (88 mm)
Installation method: Hammer or power driver
Material options: Steel, stainless steel
Special variant: Plastic rivet system for lightweight applications (up to 1/8" belt thickness, 40–65 PIW, 1.5"–3" minimum pulley diameter)
Applications: Round hay baling operations, agricultural conveyors, high-abuse environments, outdoor applications requiring corrosion resistance.

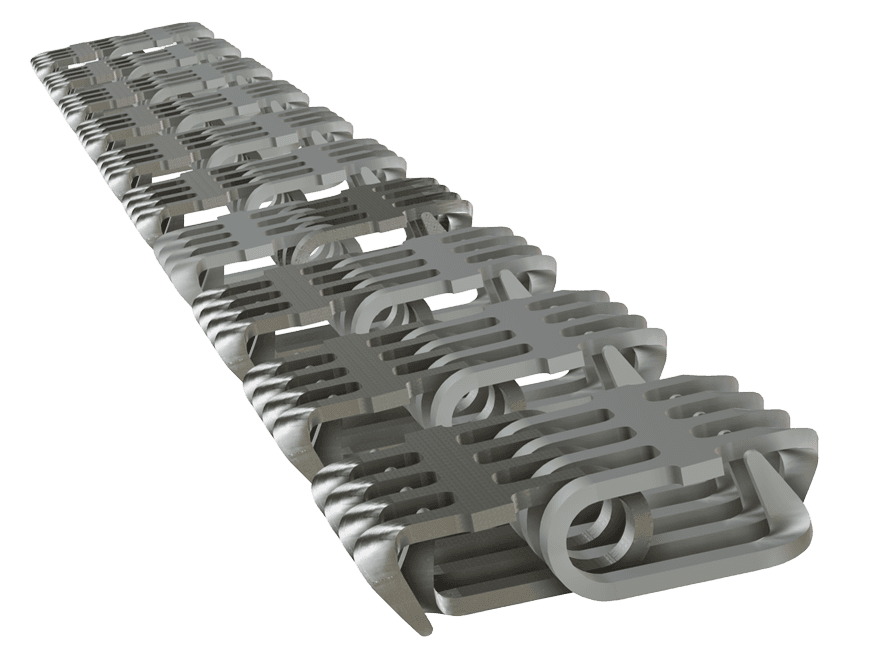

Measure your belt thickness, including top and bottom covers. Alligator systems accommodate belts from 1/16" to 1/2".
Alligator lacing handles the widest belt thickness range (up to 1/2"). Alligator staple systems work best with thinner belts (1/16"–1/4"). Alligator rivet systems handle high-abuse applications with belt thickness from 3/16"–1/4".
The minimum pulley diameter specification prevents excessive hinge stress and premature fastener wear. Alligator staple systems accommodate pulleys as small as 2". Alligator lacing systems range from 1"–14" minimum pulley diameter. Never install fasteners on pulleys smaller than specified.

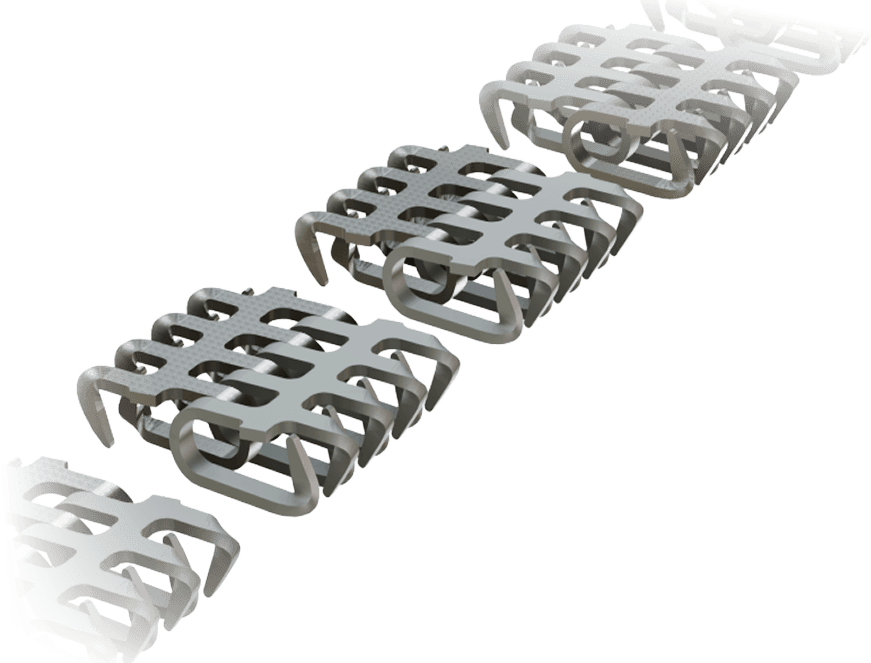

Match the fastener rating to your belt's rated strength, measured in pounds per inch of width (PIW). The fastener rating should equal or exceed the belt rating to prevent splice failure under load.
Select fasteners compatible with your belt construction.
Rubber-plied belts: Alligator lacing, alligator rivet systems
PVC solid woven belts: Alligator staple systems, alligator lacing
Fabric-reinforced belts: Alligator lacing, alligator staple systems
Rough top belts: Alligator systems with appropriate skiving and preparation

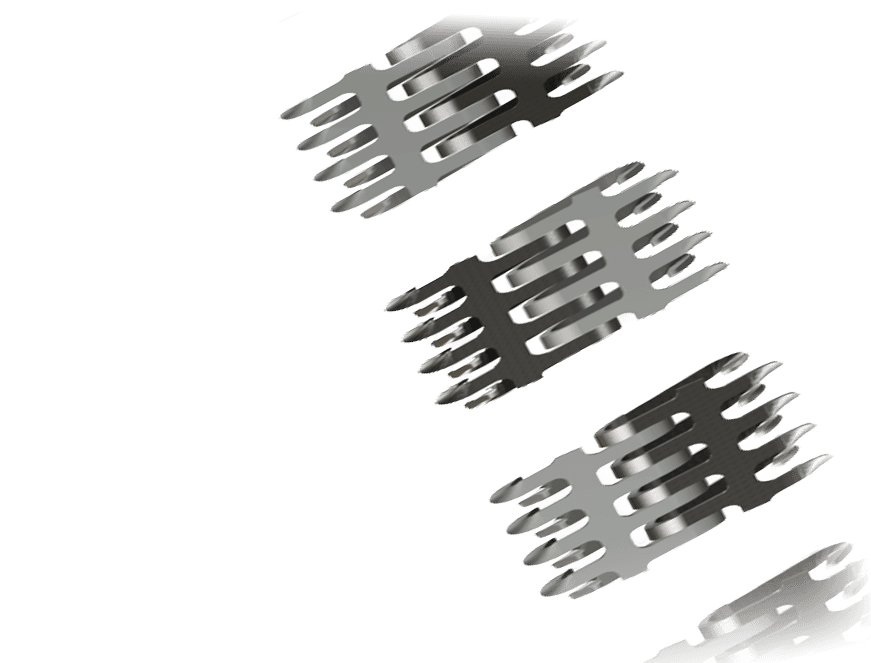

The installation method affects downtime and field serviceability.
Alligator staple systems provide the fastest installation with one-piece strips and pre-inserted staples. Ready Set installation tools enable rapid field repairs, typically completing splices in 30–60 minutes.
Alligator lacing systems require hammer installation of continuous-tooth lacing and hinge pin insertion. Installation time ranges from 45–90 minutes.
Alligator rivet systems use rivet-based fastening with hammer or power driver installation. Installation time ranges from 60–120 minutes.

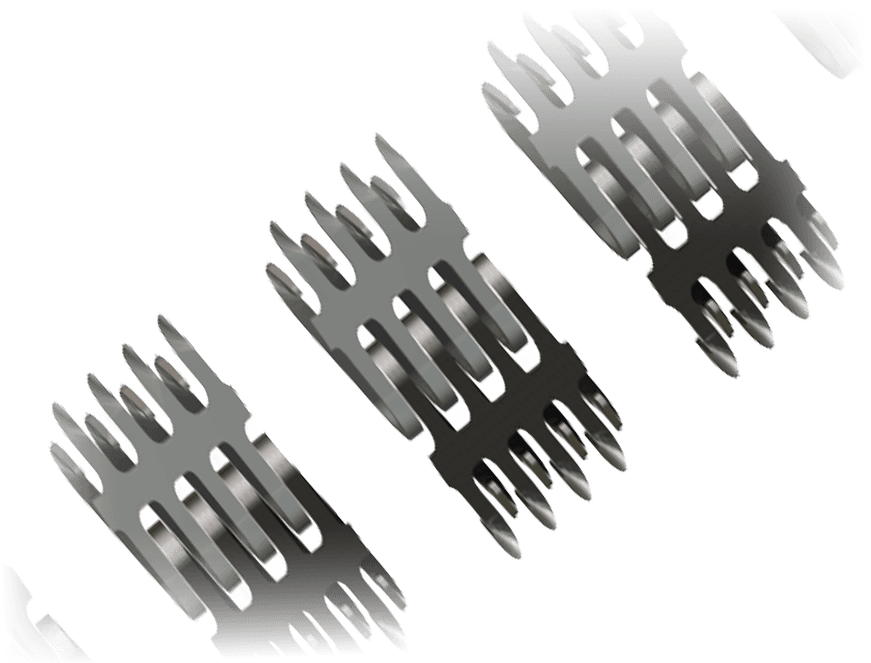

Match fastener materials to your operating environment.
Corrosion resistance: Stainless steel options available in 300 series for corrosive environments, acids, and chemicals
Food processing: 300 series stainless steel provides washdown compatibility and high sanitation requirements (food grade conveyor belts)
Abrasion resistance: Steel and stainless steel fastener materials provide durability in abrasive applications
Magnetic attraction: 300 series stainless steel displays extra resistance to magnetic attraction
Temperature extremes: Verify material compatibility for your operating temperature range

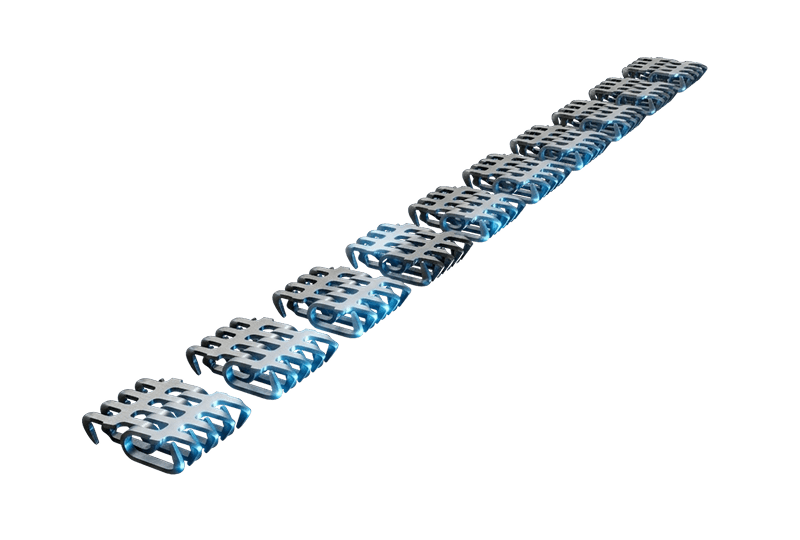

Alligator splice kits include fastener strips or lacing for completing the splice based on your belt width and chosen material. Kit contents and quantities vary by system type and belt specifications.
Alligator lacing systems: Corrugated hinge pins or nylon hinge pins that join the two lacing strips together, allowing the belt to flex around pulleys. Pin diameter and length are specified by the lacing size. Lugs on the hinge pin engage lacing loops, reducing the possibility of hinge pin migration.
Alligator staple systems: Pre-inserted staples in one-piece fastener strips eliminate separate fastener installation.
Alligator rivet systems: Rivet pins with retaining washers for mechanical attachment through belt material.
Installation gauge pins with clips hold lacing firmly and squarely against the belt during installation to get a straight splice. Recommended clip spacing: 3 clips per 12" of belt width.
Fluent can supply standard and proprietary belt splicing tools as part of your splice kit. Options include:
Belt cutters
Belt skivers
Installation tools
Staple setting plates
Belt nippers
Hand tools
Complete tool kits

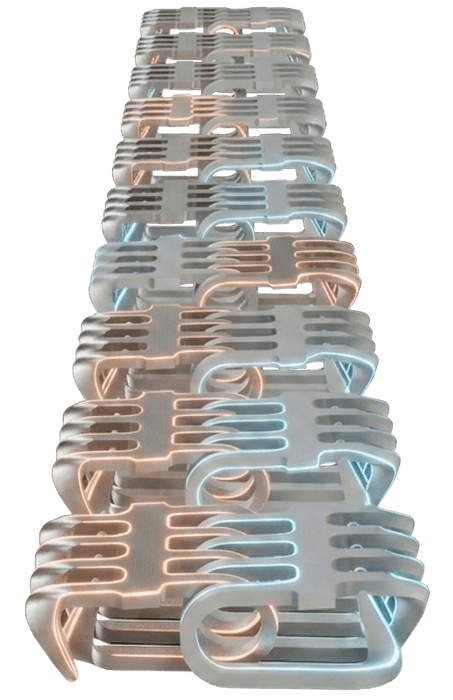

If you're shopping for splice kits because your belt is damaged, worn, or reaching end of life, a complete replacement belt may be more cost-effective than field splicing. Fluent supplies custom replacement conveyor belts cut to your specifications with factory-installed mechanical or vulcanized splices.
When you replace your belt with Fluent, you get:
Contact us about replacement belts with factory splicing. We'll help you determine whether a splice kit or complete belt replacement provides better value for your application.
Fluent Conveyors designs and manufactures conveyors for recycling, waste management, and other heavy industries. We understand how mechanical fasteners perform because we use the same Flexco splice kits to manufacture replacement belts every day.
Our engineering team provides technical guidance on splice kit selection, belt compatibility, and installation procedures grounded in hands-on conveyor manufacturing experience. Whether you need replacement splice kits for existing equipment or specifications for a new custom conveyor, contact us about your application, and enjoy working with the experts.
