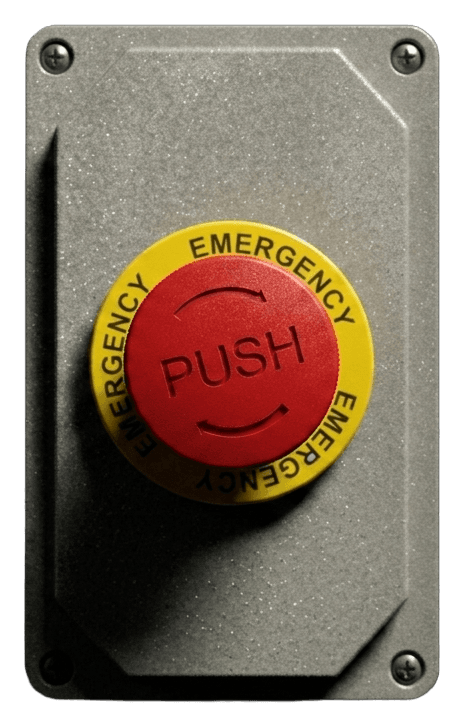

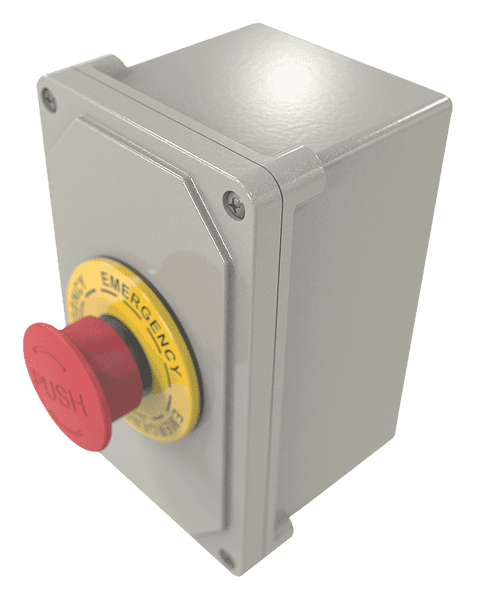

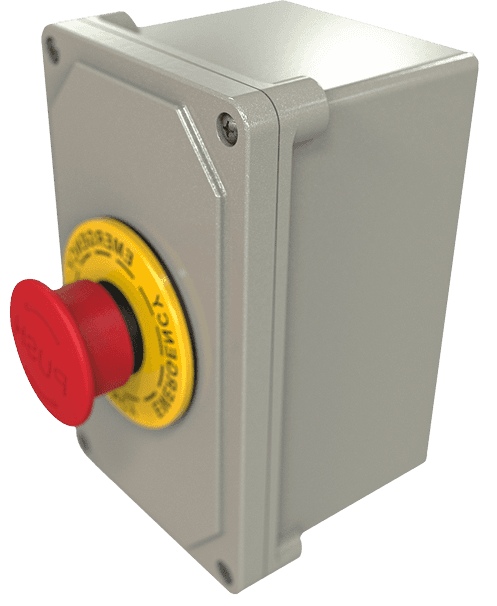

A large, distinctive button that operators can press to halt conveyor operations and requires deliberate resetting. Available in NEMA-rated enclosures for industrial environments.

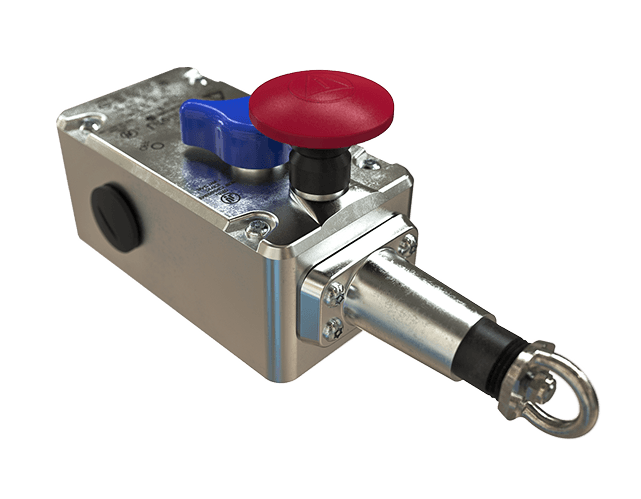

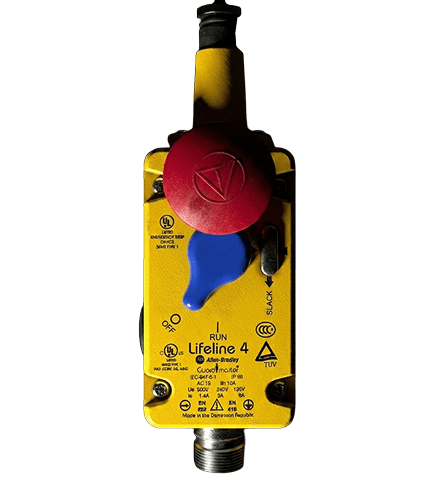

A cable running the length of the conveyor, allowing workers to stop the system from any point along its path. For long conveyor runs where workers may be far from fixed emergency stop buttons.

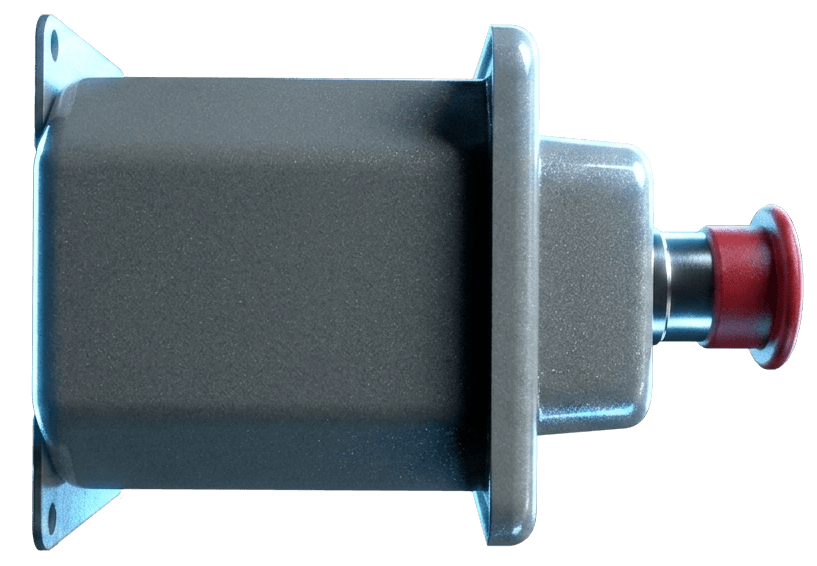

To replace a conveyor E-stop, adhere to safety procedures, manufacturer guidelines, and carefully plan the event. Here are the steps for E-stop replacement:
E-stops interrupt power flow to perform a safe, controlled shutdown of your conveyor and coordinating equipment.
E-stops cut power through safety relay circuits, de-energizing motors to stop belt movement.
Defective conveyor components should be promptly replaced as they pose a serious risk to employees and equipment.
Industrial conveyors must comply with multiple safety standards governing E-stop placement, testing, and operation. Understand these requirements to meet regulatory obligations and pass safety inspections.
The US standard for conveyor safety establishes E-stop spacing, mounting, and electrical requirements.
Main requirements:
Maximum 100-foot spacing between E-stops
Mounting height is 24–67 inches above walking surface
Within 10 feet of all workstations
4–5 pound actuation force requirement
OSHA mandates emergency stop mechanisms on all conveyors and references ASME B20.1 as the accepted compliance standard.
Required documentation:
Regular E-stop testing records
Maintenance and repair logs
Employee training certifications
Lockout/tagout procedures
Global standard for E-stop design and operation, required for international facilities and export equipment.
Mandates:
Stop Category 0 (immediate power removal) or Category 1 (controlled stop, then power removal) only
E-stop must override all other functions without impairing protective measures
Manual reset by intentional human action at the activated E-stop location
Reset must not initiate machine startup; separate start command required
Minimum Performance Level PLC or SIL 1 for emergency stop function
The Conveyor Equipment Manufacturers Association provides installation guidance and quality benchmarks beyond minimum regulations.
Related standards:
Red actuator on yellow background for maximum visibility
Actuator must extend above surrounding surface for easy access
Emergency stop priority over all operational controls
Clear marking and signage at each E-stop location
Protection against accidental actuation while maintaining easy access
when safety matters most.

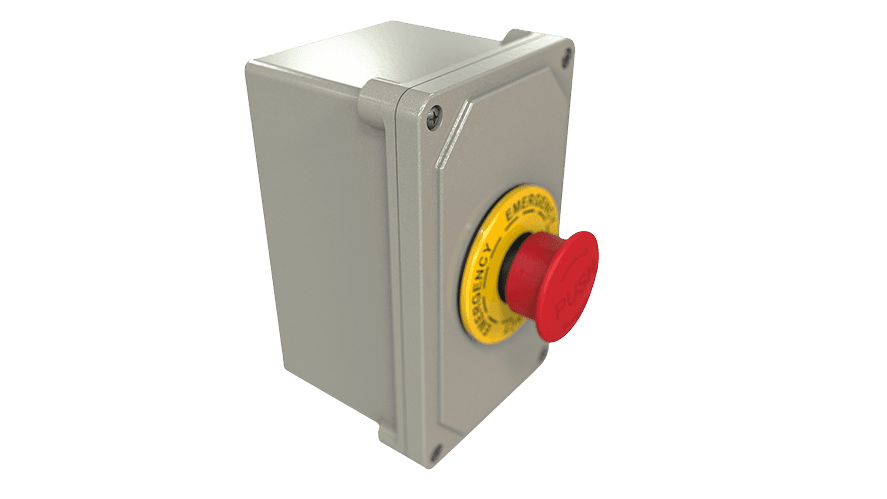

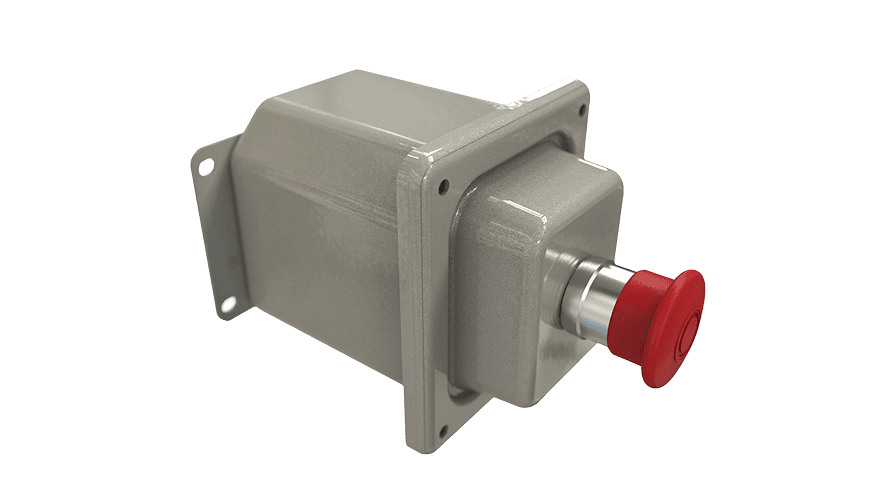

NEMA enclosure ratings define environmental protection levels for electrical enclosures. Select the appropriate rating based on your facility's operating conditions and regulatory requirements.
The following testing and maintenance protocols should be combined with manufacturer and regulatory agency requirements and recommendations.

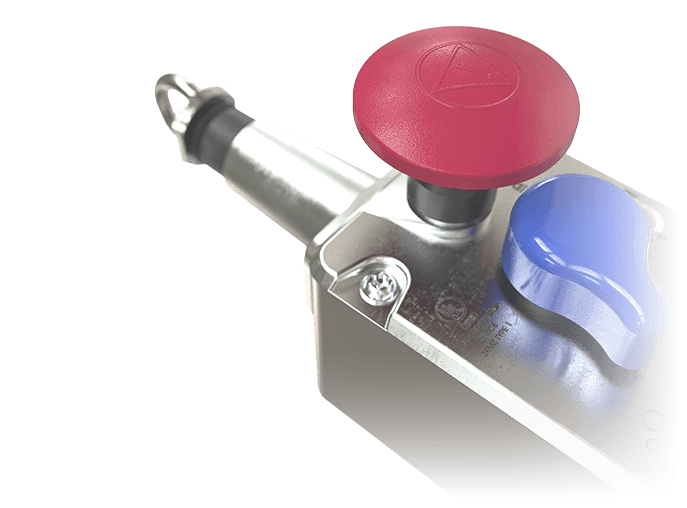

Time required: 5–10 minutes per E-stop
Test protocol:
Actuate each E-stop to verify mechanical function
Confirm motor power interruption
Check reset mechanism operation
Verify audible/visual alarms
Document results with date and signature

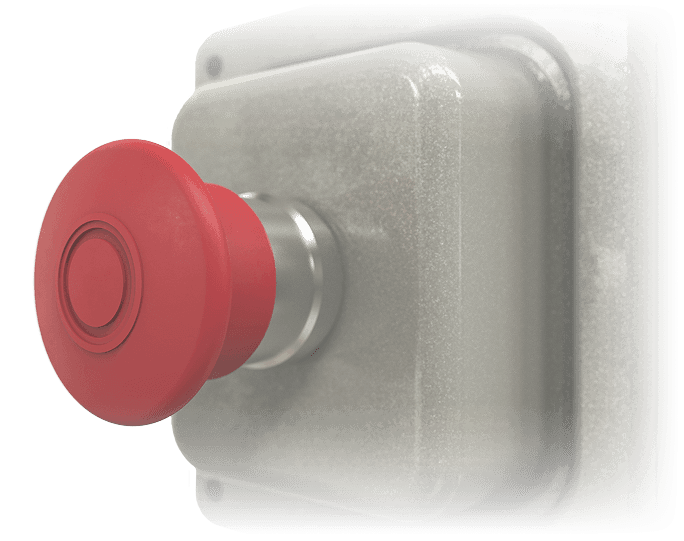

Time required: 15–20 minutes per E-stop
Comprehensive checks:
Measure contact resistance
Verify 4–5 pound actuation force
Inspect wiring connections and torque
Test enclosure gasket integrity
Evaluate mounting security
Review documentation completeness
Action required: Disable conveyor
Replace E-stops if:
Actuator fails to latch or cable fails to trip the switch
Reset mechanism sticks or binds
Visible cracks in enclosure
Intermittent electrical operation
Corrosion on contacts or terminals
Fluent designs and manufactures industrial conveyors. When you purchase E-stops from Fluent, you're working with engineers who understand safety PLC integration, stop coordination, and multi-conveyor emergency shutdown sequences because we engineer them into our conveyors every day.
Whether you need replacement E-stops for existing equipment or emergency stop specifications for a new custom conveyor system, our team provides technical guidance grounded in real-world safety applications.
