Fluent supplies NEMA-rated mushroom head E-stops for Fluent conveyors, general replacement, and new installations. Shop NEMA 4 enclosures for outdoor and washdown environments and NEMA 12 for indoor industrial use.
We carry the following pushbutton E-stop enclosures:

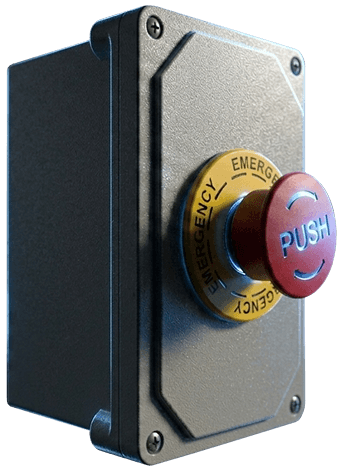

Standard industrial protection against dust, dirt, and dripping liquids. Sufficient for indoor recycling facilities, manufacturing plants, and general conveyor operations.

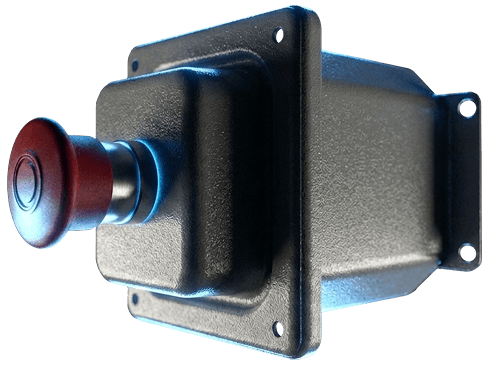

Weather-resistant sealed construction for outdoor conveyors, wash plants, and corrosive environments. Painted steel withstands rain and dust exposure.

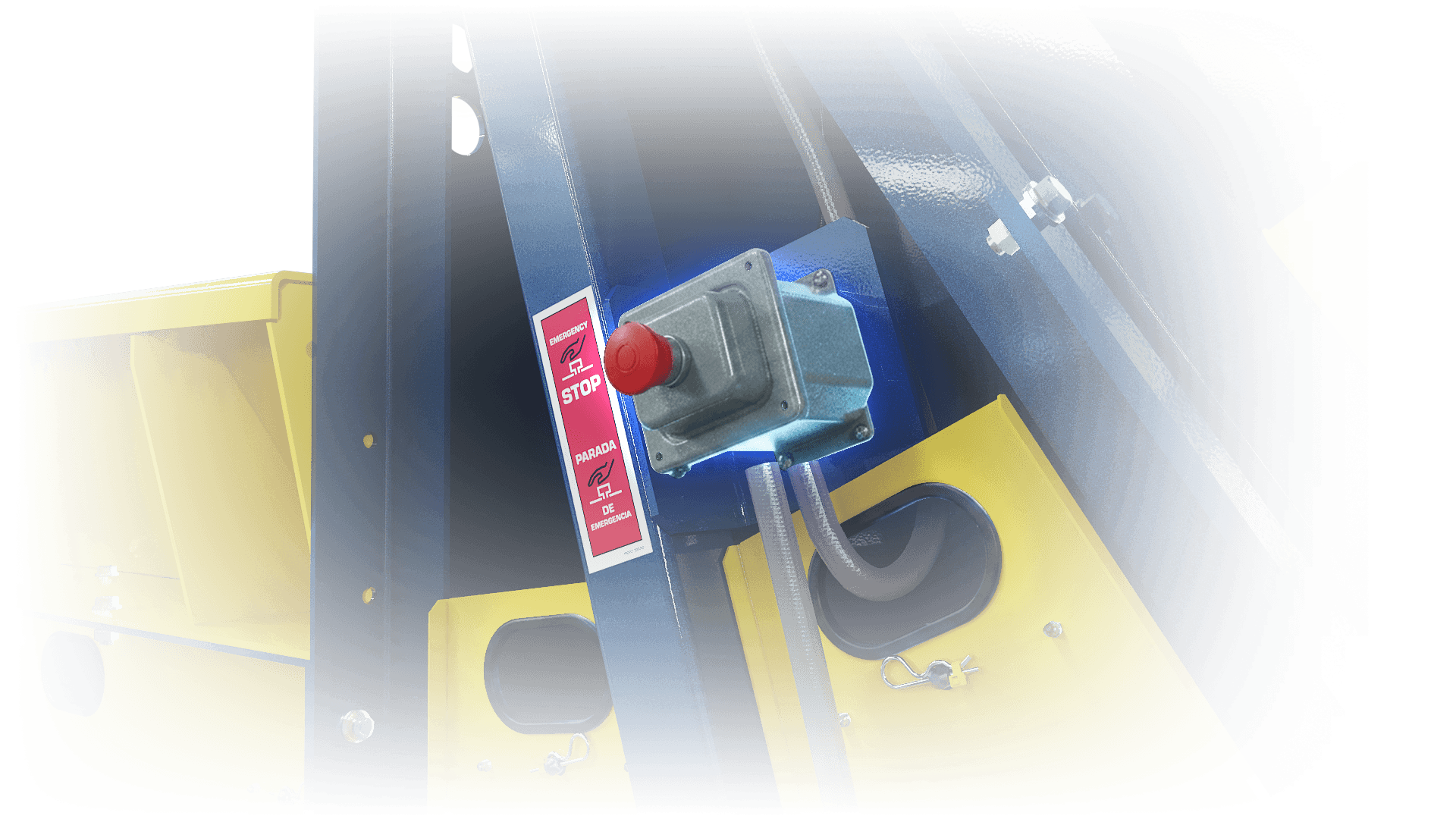

Specifications vary by product, but our mushroom head E-stops typically include:
Large mushroom-shaped red actuator (40mm typical diameter) for high visibility and palm activation
Yellow background achieved through enclosure color, legend plate, or stem coloring per NFPA 79
Positive latching mechanism that maintains depressed position until manually reset
Normally closed (NC) contact configuration for fail-safe operation
Available with 1, 2, or 4 contact blocks to suit control requirements
Impact-resistant polycarbonate or metal construction for harsh industrial environments
Pull-to-reset or twist-to-reset mechanisms to prevent accidental reactivation
Optional illuminated variants with LED status indication
Temperature-rated enclosures for general or extreme environments
22mm mounting hole standard for panel or enclosure installation

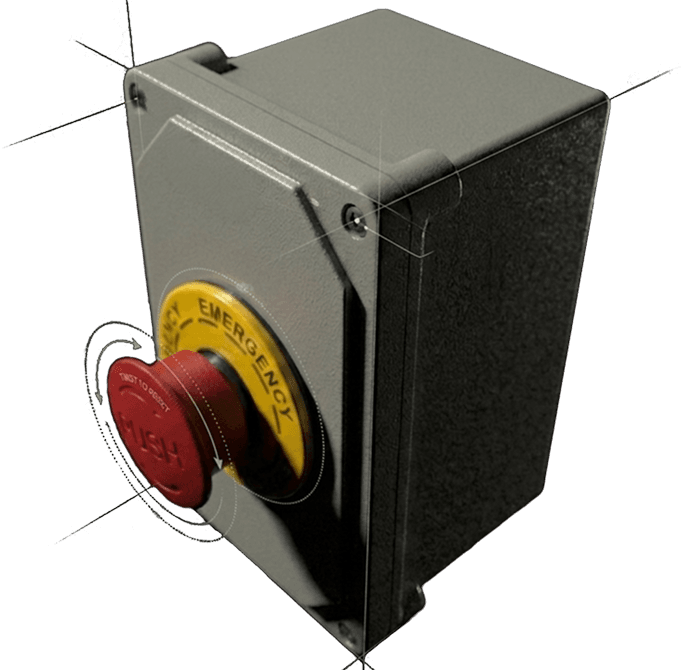

To replace a mushroom head E-stop, adhere to safety procedures, manufacturer guidelines, and carefully plan the event. Here are the steps for E-stop replacement:
Replace defective conveyor components promptly to minimize risks to employees and equipment.
Install mushroom head E-stops at these locations to maintain safety and regulatory compliance:

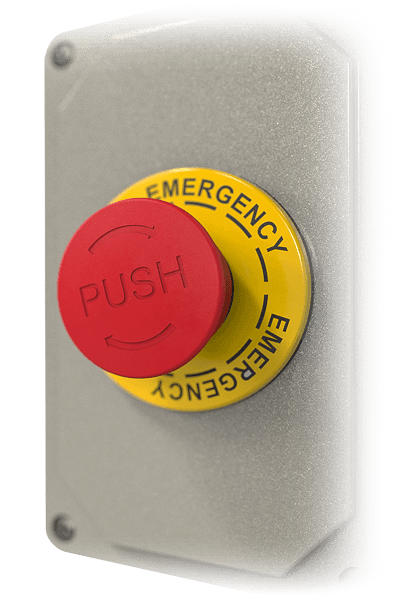

At all fixed operator control stations where workers monitor or control conveyors
Within 10 feet of designated work stations per ASME B20.1
At loading and unloading zones where personnel interact with moving materials
Near sorting stations where workers manually handle materials on operating conveyors

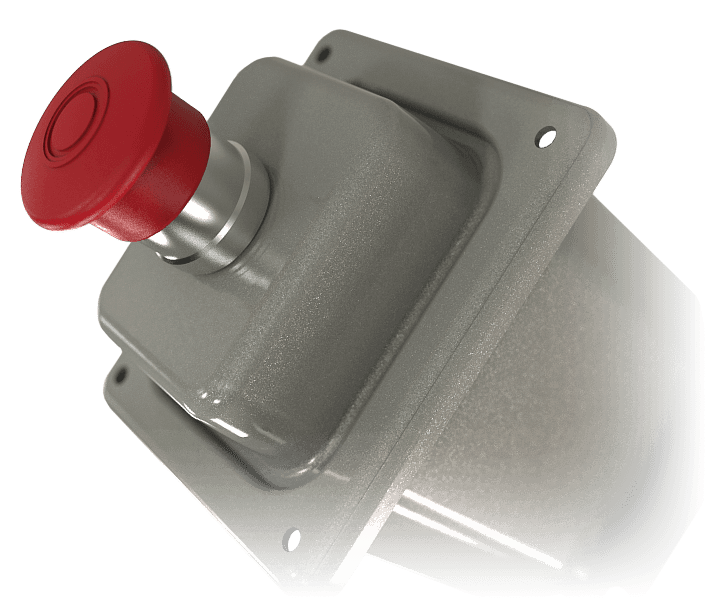

At conveyor transfer stations where materials move between conveyors
Near baler infeed points and shredder feed areas
At recycling sort stations where multiple conveyors converge
Adjacent to screening equipment, trommels, and other integrated machinery

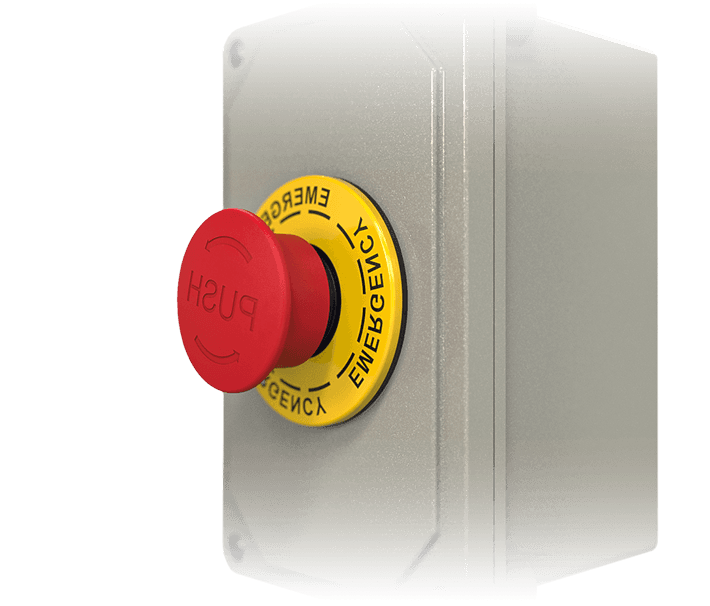

At conveyor entry and exit points in restricted access zones
Near drive units, take-up assemblies, and other mechanical components
Along walkways that cross over or under operating conveyors
At every location where OSHA or facility protocols require emergency stop access

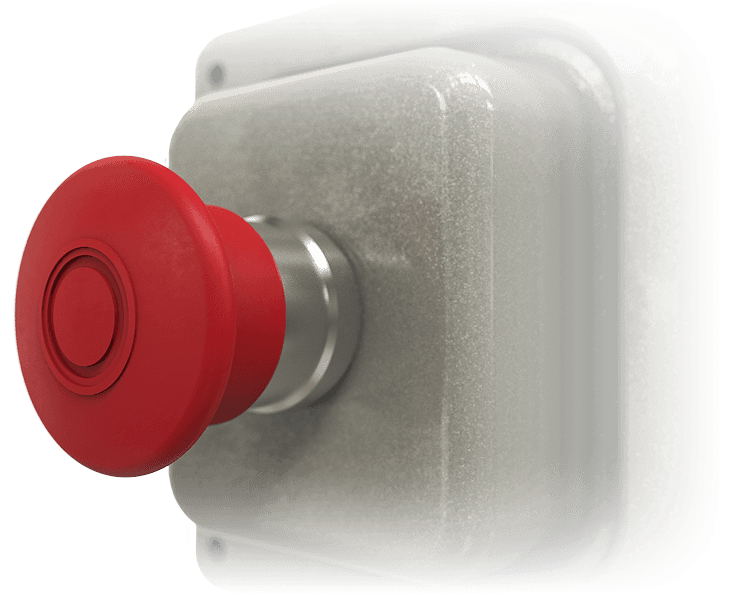

On main control panels and local operator stations
At variable frequency drive (VFD) enclosures controlling conveyor motors
Near PLC cabinets in automated systems
On mobile control consoles for portable or adjustable conveyors
Mushroom head E-stops should be spaced at intervals not exceeding 100 feet along conveyor runs in restricted access areas per ASME B20.1 guidelines. Radial stacker conveyors require E-stops at the pivot point and along elevated sections. Tumble-back conveyors require placement near the discharge to prevent material rollback during emergency stops.
Mushroom head emergency stops integrate with multiple conveyor subsystems to execute safe, controlled shutdowns. The E-stop circuit interrupts normal control logic and coordinates system-wide responses.
E-stops interrupt power through safety relay circuits, immediately de-energizing motors to stop belt movement. The emergency stop function overrides VFD commands and removes voltage from motor starters.
Industrial conveyors must comply with multiple safety standards governing E-stop placement, testing, and operation. Understand these requirements to meet regulatory obligations and pass safety inspections.

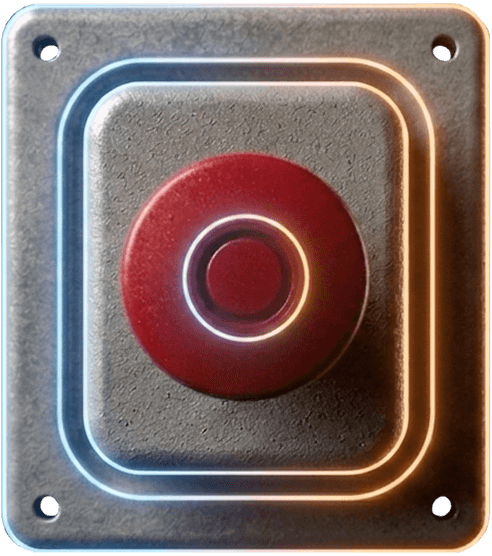

OSHA mandates emergency stop mechanisms on all conveyors and references ASME B20.1 as the accepted compliance standard.
Required documentation:
Maintenance and repair logs
Employee training certifications
Regular E-stop testing records
Lockout/tagout procedures
The US standard for conveyor safety establishes E-stop spacing, mounting, and electrical requirements.
Main requirements:
4–5 pound actuation force requirement
Maximum 100-foot spacing between E-stops
Mounting height: 24–67 inches above walking surface
Within 10 feet of all workstations

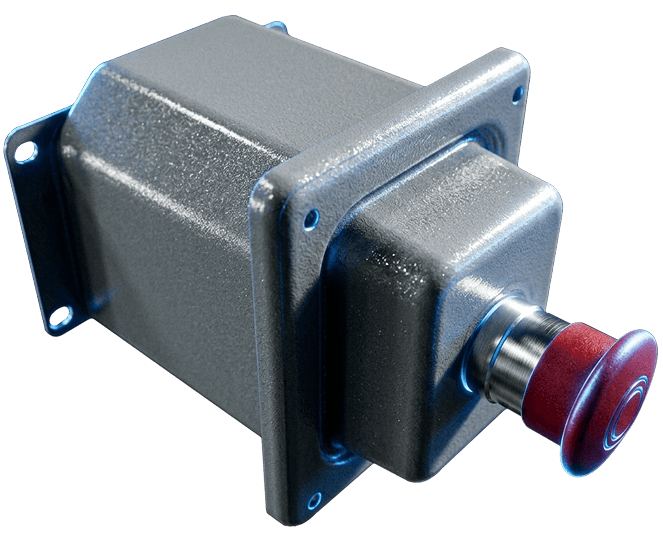

Global standard for E-stop design and operation, required for international facilities and export equipment.
Mandates:
Minimum Performance Level PLC or SIL 1 for emergency stop function
Stop Category 0 (immediate power removal) or Category 1 (controlled stop, then power removal) only
E-stop must override all other functions without impairing protective measures
Manual reset by intentional human action at the activated E-stop location
Reset must not initiate machine startup; separate start command required

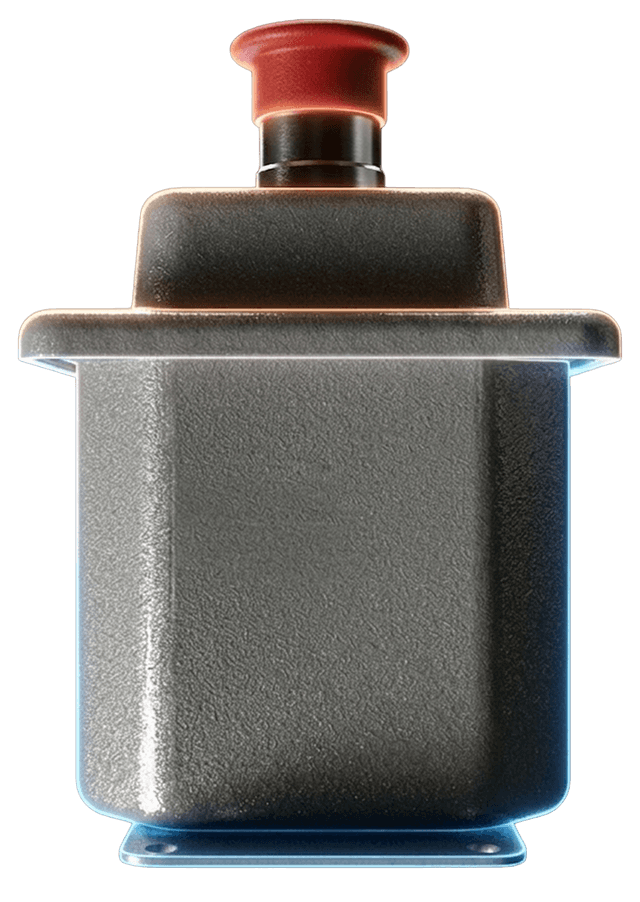

The Conveyor Equipment Manufacturers Association provides installation guidance and quality benchmarks beyond minimum regulations.
Related standards:
Clear marking and signage at each E-stop location
Red actuator on yellow background for maximum visibility
Actuator must extend above surrounding surface for easy access
Emergency stop priority over all operational controls
Protection against accidental actuation while maintaining easy access
Testing and maintenance provide reliable emergency protection and regulatory compliance. The following protocols should be combined with manufacturer and regulatory agency requirements and recommendations.
Fluent supplies replacement mushroom head E-stops for all of our conveyors. Our engineering team can help specify the correct E-stop configuration, placement, and NEMA rating for your operating environment.
E-stops are available for these Fluent conveyor types:
Fluent designs and manufactures industrial conveyors. When you purchase mushroom head E-stops from Fluent, you're working with engineers who understand safety PLC integration, Category 0/Category 1 stop coordination, and multi-conveyor emergency shutdown sequences because we specify them in our conveyor designs every day.
Whether you need replacement E-stops for existing equipment or emergency stop specifications for a new custom conveyor system, our team provides technical guidance grounded in real-world safety applications.
