Fluent supplies replacement NEMA 12 mushroom head E-stops for Fluent conveyors and retrofit installations. NEMA 12 enclosures protect against dust, fiber, and dripping liquids in indoor industrial environments.
Reliable pull cord E-stop system for fast emergency shutdown.
Standard 40mm
Pull-release pushbutton operators
1NC (normally closed) standard, other options available
Standard and lamp voltage illuminated models
Compatible with 24–240VAC/DC systems
50/60Hz power supply compatibility
-25°C to +70°C (-13°F to +158°F)
Up to 600V, depending on model
Indoor use, limited exposure to dust, moisture, or chemicals
Varies by model, typically 1–2 lb

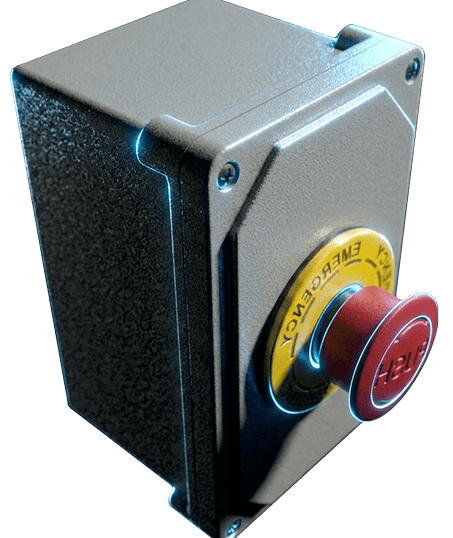

NEMA 12 enclosures protect against limited dust, dirt, and dripping non-corrosive liquids. These electrical enclosures maintain internal component integrity in indoor industrial environments. Unlike NEMA 4 enclosures, which are rated for outdoor use and washdown applications, NEMA 12 provides protection suitable for most indoor industrial settings.
For outdoor installations, washdown areas, or corrosive environments, NEMA 4 E-stops provide a higher level of environmental protection.

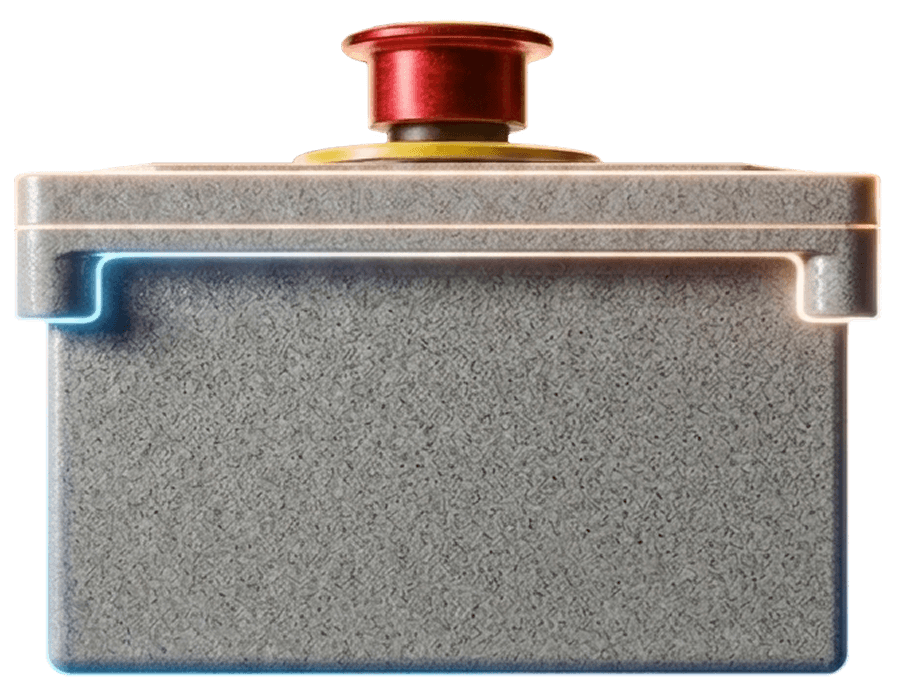

Specifications vary by product, but our NEMA 4 mushroom head E-stops typically include:
Install NEMA 12 E-stops at these locations to maintain safety and regulatory compliance:
At all fixed operator control stations where workers monitor or control conveyors
Within 10 feet of designated work stations per ASME B20.1
At loading and unloading zones where personnel interact with moving materials
Near sorting stations where workers manually handle materials on operating conveyors
At conveyor transfer stations where materials move between conveyors
Near baler infeed points and shredder feed areas
At recycling sort stations where multiple conveyors converge
Adjacent to screening equipment, trommels, and other integrated machinery
At conveyor entry and exit points in restricted access zones
Near drive units, take-up assemblies, and other mechanical components
Along walkways that cross over or under operating conveyors
At every location where OSHA or facility protocols require emergency stop access
On main control panels and local operator stations
At variable frequency drive (VFD) enclosures controlling conveyor motors
Near PLC cabinets in automated systems
On mobile control consoles for portable or adjustable conveyors
NEMA 12 E-stops should be spaced at intervals not exceeding 100 feet along conveyor runs in restricted access areas per ASME B20.1 guidelines. Radial stacker conveyors require E-stops at both the pivot point and along elevated sections. Tumble-back conveyors require placement near the discharge to prevent material rollback during emergency stops.
NEMA 12 emergency stops integrate with multiple conveyor subsystems to execute safe, controlled shutdowns. The E-stop circuit interrupts normal control logic and coordinates system-wide responses.
Industrial conveyors must comply with multiple safety standards governing E-stop placement, testing, and operation. Understand these requirements to meet regulatory obligations and pass safety inspections.

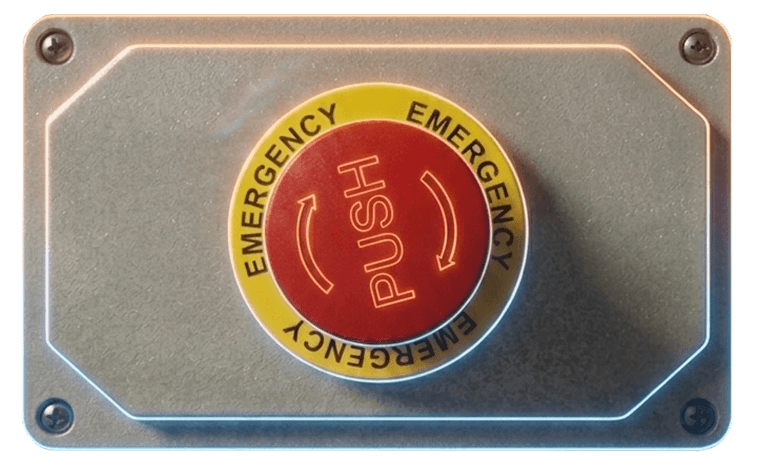

OSHA mandates emergency stop mechanisms on all conveyors and references ASME B20.1 as the accepted compliance standard.
Required documentation:
Maintenance and repair logs
Employee training certifications
Regular E-stop testing records
Lockout/tagout procedures
The US standard for conveyor safety establishes E-stop spacing, mounting, and electrical requirements.
Main requirements:
4–5 pound actuation force requirement
Maximum 100-foot spacing between E-stops
Mounting height: 24–67 inches above walking surface
Within 10 feet of all workstations
Global standard for E-stop design and operation, required for international facilities and export equipment.
Mandates:
Minimum Performance Level PLC or SIL 1 for emergency stop function
Stop Category 0 (immediate power removal) or Category 1 (controlled stop, then power removal) only
E-stop must override all other functions without impairing protective measures
Manual reset by intentional human action at the activated E-stop location
Reset must not initiate machine startup; separate start command required
The Conveyor Equipment Manufacturers Association provides installation guidance and quality benchmarks beyond minimum regulations.
Related standards:
Clear marking and signage at each E-stop location
Red actuator on yellow background for maximum visibility
Actuator must extend above surrounding surface for easy access
Emergency stop priority over all operational controls
Protection against accidental actuation while maintaining easy access
Testing and maintenance provide reliable emergency protection and regulatory compliance. The following protocols should be combined with manufacturer and regulatory agency requirements and recommendations.
Fluent supplies replacement NEMA 12 E-stops for all of our conveyors. Our engineering team can recommend E-stop configurations, placement, and spacing for your operating environment.
E-stops are available for these Fluent conveyor types:
Fluent designs and manufactures industrial conveyors. When you purchase NEMA 12 E-stops from Fluent, you're working with engineers who understand safety PLC integration, system stop coordination, and multi-conveyor emergency shutdown sequences because we implement them in our conveyor designs daily.
Whether you need replacement E-stops for existing equipment or emergency stop specifications for a new conveyor system, our team provides technical guidance grounded in real-world safety applications.
