Fluent supplies replacement NEMA 12 mushroom head E-stops for Fluent conveyors and retrofit installations. NEMA 12 enclosures protect against dust, fiber, and dripping liquids in indoor industrial environments.
Reliable pull cord E-stop system for fast emergency shutdown.
Standard 40mm
6.90" height × 5.25" width × 4.50" depth
Watertight, dust-tight
Pull-release pushbutton operators
Wall or panel mount with pre-drilled mounting holes
For outdoor and indoor applications where protection from water and dust is needed
Positive-opening contacts, self-monitoring capability, lockable in OFF position
1NC (normally closed) standard, other options available
Compatible with 24–240VAC/DC systems
50/60Hz power supply compatibility
-40°F to 185°F
Up to 600V, depending on model
1–2 lb

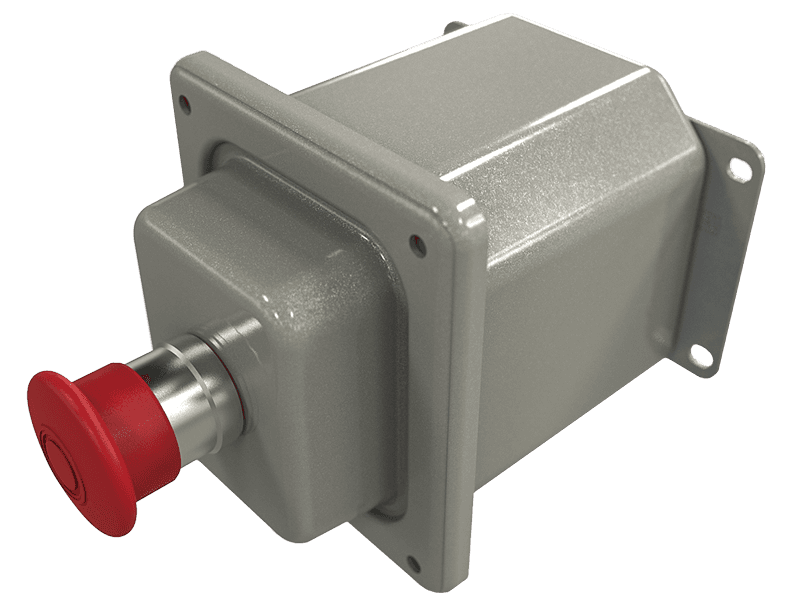

NEMA 4 ratings make these enclosures suitable for outdoor installations, washdown areas, and facilities with exposure to water spray and windblown debris.

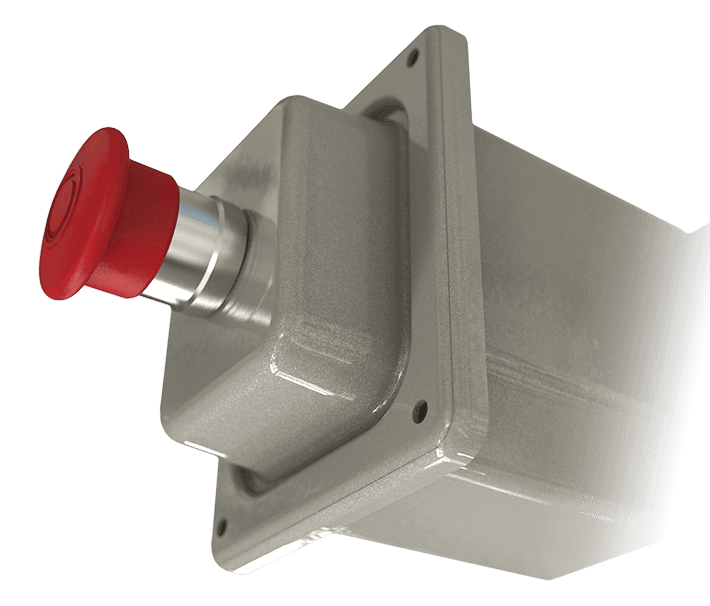

Unlike NEMA 12 enclosures, NEMA 4 construction includes gasket seals, corrosion-resistant materials, and a weather-tight design to withstand water spray and the extreme conditions found in recycling facilities, aggregate operations, and other harsh environments.
Specifications vary by product, but our NEMA 12 mushroom head E-stops typically include:
Install NEMA 4 E-stops at these locations for enhanced protection against weather, dust, and chemicals:
At outdoor operator stations exposed to rain, snow, and temperature extremes
On radial stacker conveyors that pivot between covered and exposed areas
Along open-air mining and aggregate conveyors
At loading zones where conveyors interface with mobile equipment outdoors
In recycling facilities using water sprays for cleaning operations
Near wash plants processing aggregates, sand, and stone materials
At food processing conveyors for packaging subject to high-pressure washdown
In wastewater treatment facilities with constant moisture exposure
At material recovery facilities processing chemical containers
In salt storage and handling operations
Near marine terminals and port facilities
At facilities handling corrosive waste materials
On incline conveyors exposed to weather at elevated discharge points
At car shredder facilities with metal dust and outdoor exposure
In demolition operations with concrete dust and debris
At construction sites with temporary outdoor conveyor installations
Space NEMA 4 E-stops at intervals not exceeding 100 feet along conveyor runs in restricted access areas per ASME B20.1 guidelines. Outdoor radial stacker conveyors require weather-resistant E-stops at the pivot mechanism and along the boom. Wash plant conveyors require NEMA 4 protection throughout areas subject to water spray.
NEMA 4 emergency stops integrate with multiple conveyor subsystems to execute safe, controlled shutdowns. The weather-sealed design protects control circuits while maintaining reliable emergency stop functionality in harsh conditions.

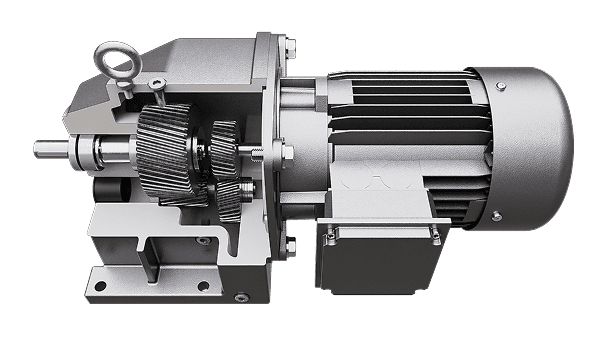

E-stops interrupt power through safety relay circuits, immediately de-energizing motors to stop belt movement. The emergency stop function overrides VFD commands and removes voltage from motor starters.
Industrial conveyors must comply with multiple safety standards governing E-stop placement, testing, and operation. Understand these requirements to meet regulatory obligations and pass safety inspections.

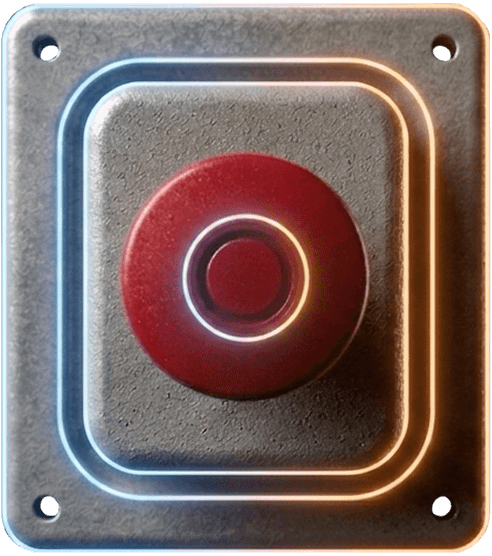

The US standard for conveyor safety establishes E-stop spacing, mounting, and electrical requirements.
Main requirements:
4–5 pound actuation force requirement
Maximum 100-foot spacing between E-stops
Mounting height: 24–67 inches above walking surface
Within 10 feet of all workstations
Testing and maintenance provide reliable emergency protection and regulatory compliance. The following protocols should be combined with manufacturer and regulatory agency requirements and recommendations.
Defective E-stops endanger employees and violate safety regulations.
Fluent supplies replacement NEMA 4 E-stops for all of our conveyors. Our engineering team can recommend E-stop configurations, placement, and spacing for your outdoor or harsh operating environment.
E-stops are available for these Fluent conveyor types:
Fluent designs and manufactures industrial conveyors. When you purchase NEMA 4 E-stops from Fluent, you're working with engineers who understand safety PLC integration, outdoor installation requirements, and weather-resistant control system design because we implement them in our conveyor systems every day.
Whether you need replacement E-stops for existing outdoor equipment or emergency stop specifications for a new custom conveyor, our team provides technical guidance grounded in real-world safety applications.
