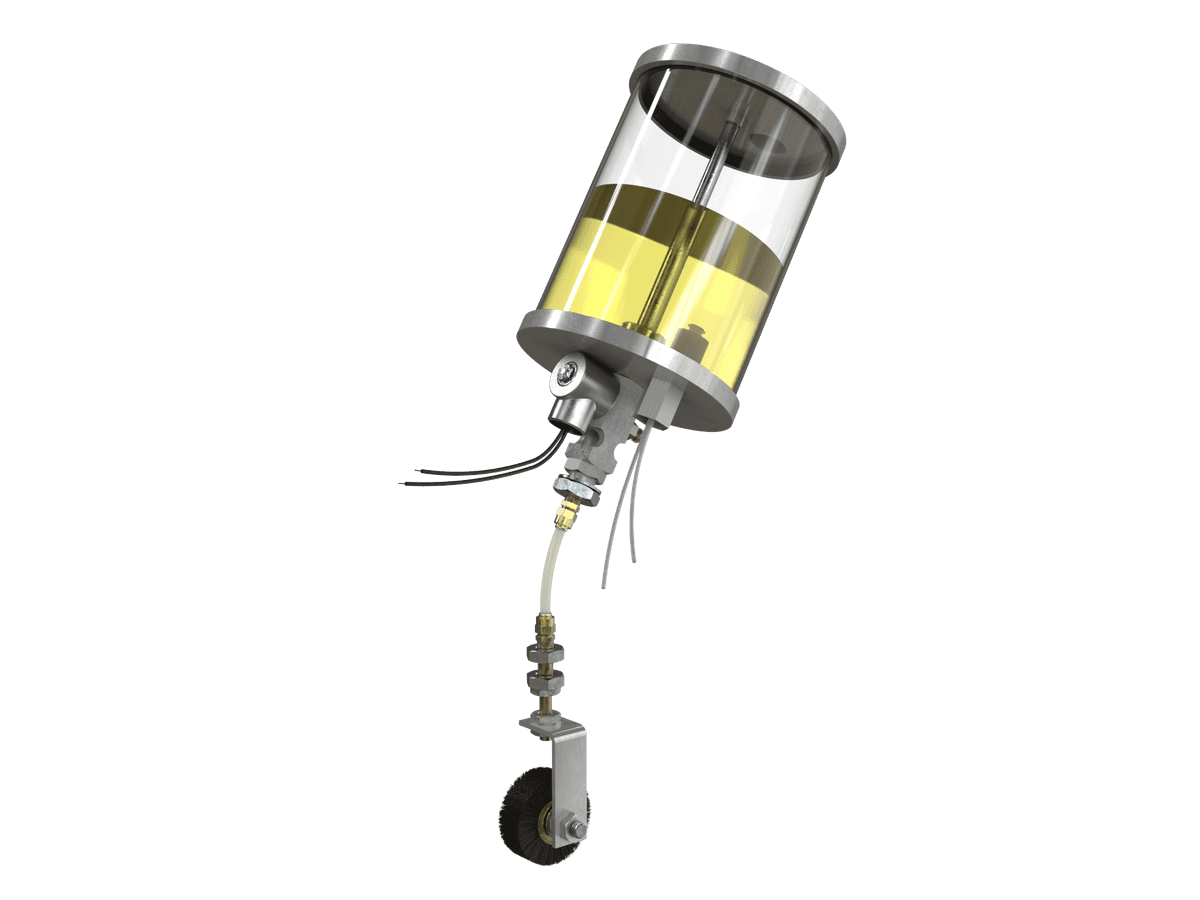

Roller chain conveyor
oiler parts

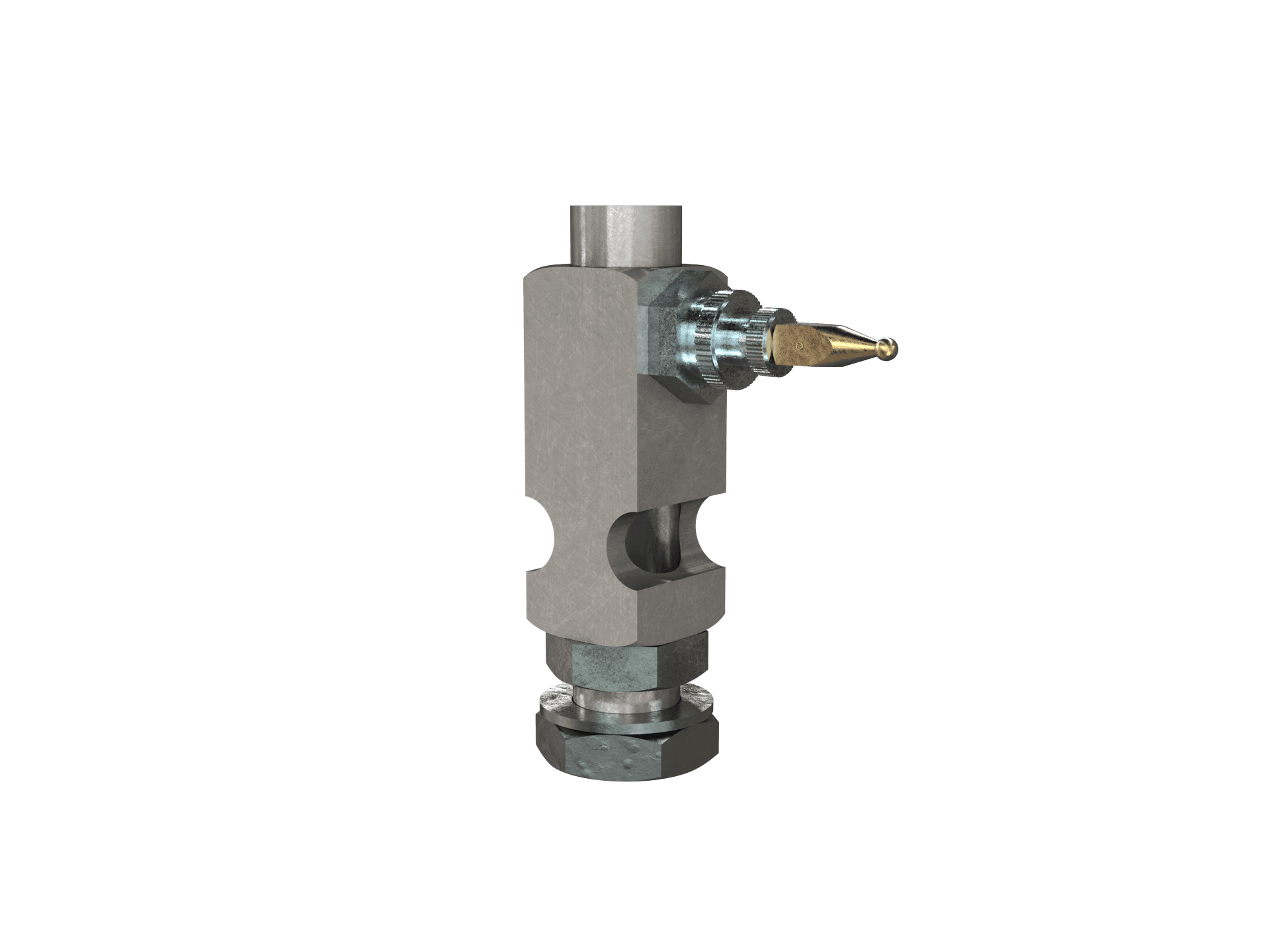

The most common setup error is running the needle valve too open. Over-lubrication creates excess oil that attracts dirt, coats surfaces where oil isn't needed, and produces slippery floors and environmental waste, all without improving chain life. A small, consistent oil film at the pin-bushing interface reduces wear and extends chain life. Set the needle valve to the minimum rate that maintains a visible drop feed through the sight chamber, then leave the friction lock engaged. Resist the urge to open it further. On electric oilers, confirm the solenoid is activating and deactivating cleanly at motor start and stop before adjusting flow rate.

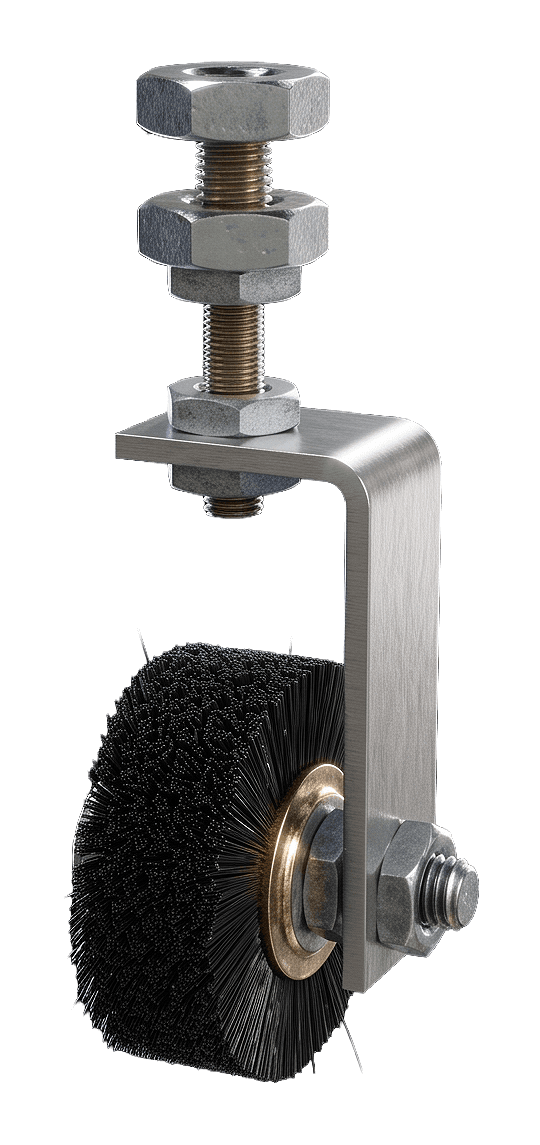

Position the brush on the inside surface of the chain wherever possible. Oil should penetrate the chain links by centrifugal force rather than bristle contact alone. Mount the brush at a point where chain sway is minimal; sway accelerates bristle wear and causes inconsistent contact. On installations where mounting clearance is tight, valve brush assemblies allow the oiler reservoir to be positioned remotely while delivering metered oil directly at the application point through tubing.

Brushes on nearly all configurations provide a minimum of 1/2 inch of wear adjustment. Advance the mount as bristles compress to maintain consistent chain contact. Rotating the brush position occasionally distributes bristle wear more evenly and extends service intervals. Stainless steel bristles also sweep accumulated debris and old lubricant off the chain surface as they apply fresh oil, performing a cleaning action alongside lubrication.

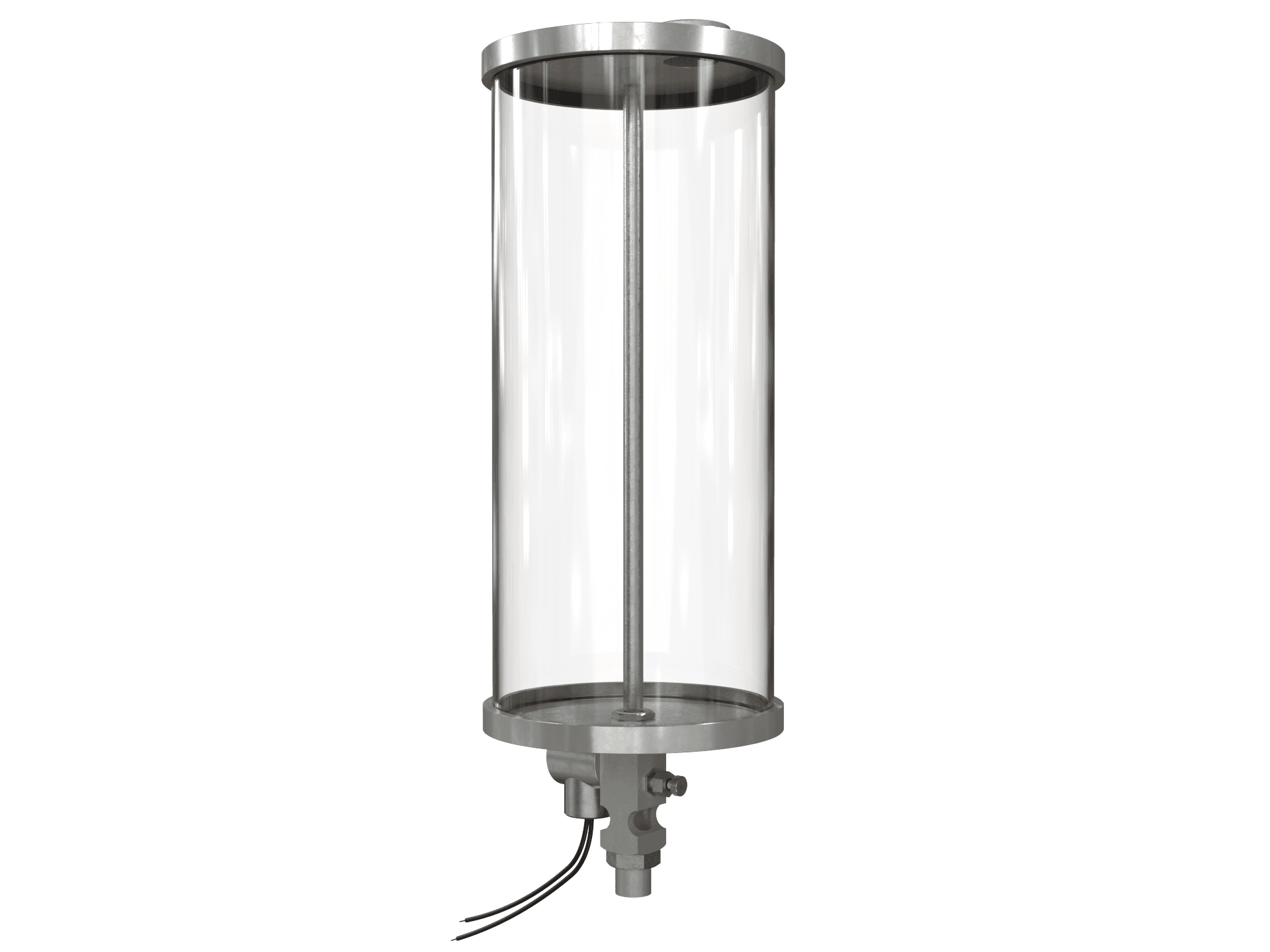

Refill the reservoir before it runs dry. Depleted reservoirs introduce air into the line, which interrupts the gravity feed and can cause an inconsistent drop rate after refilling. Inspect fluid condition at every refill.

Dirty oil should not be topped off, as agitating the reservoir during refilling can redistribute settled contaminants back into the flow. If contamination is recurring, install or replace the 100-mesh filter and identify the ingress point. Clean the reservoir body annually and verify the filler cap seals completely; a compromised cap seal is the most common contamination pathway in dusty operating environments.

If you're unsure which lubricant is correct for your application, see our guide on what type of oil to use in a conveyor oiler.

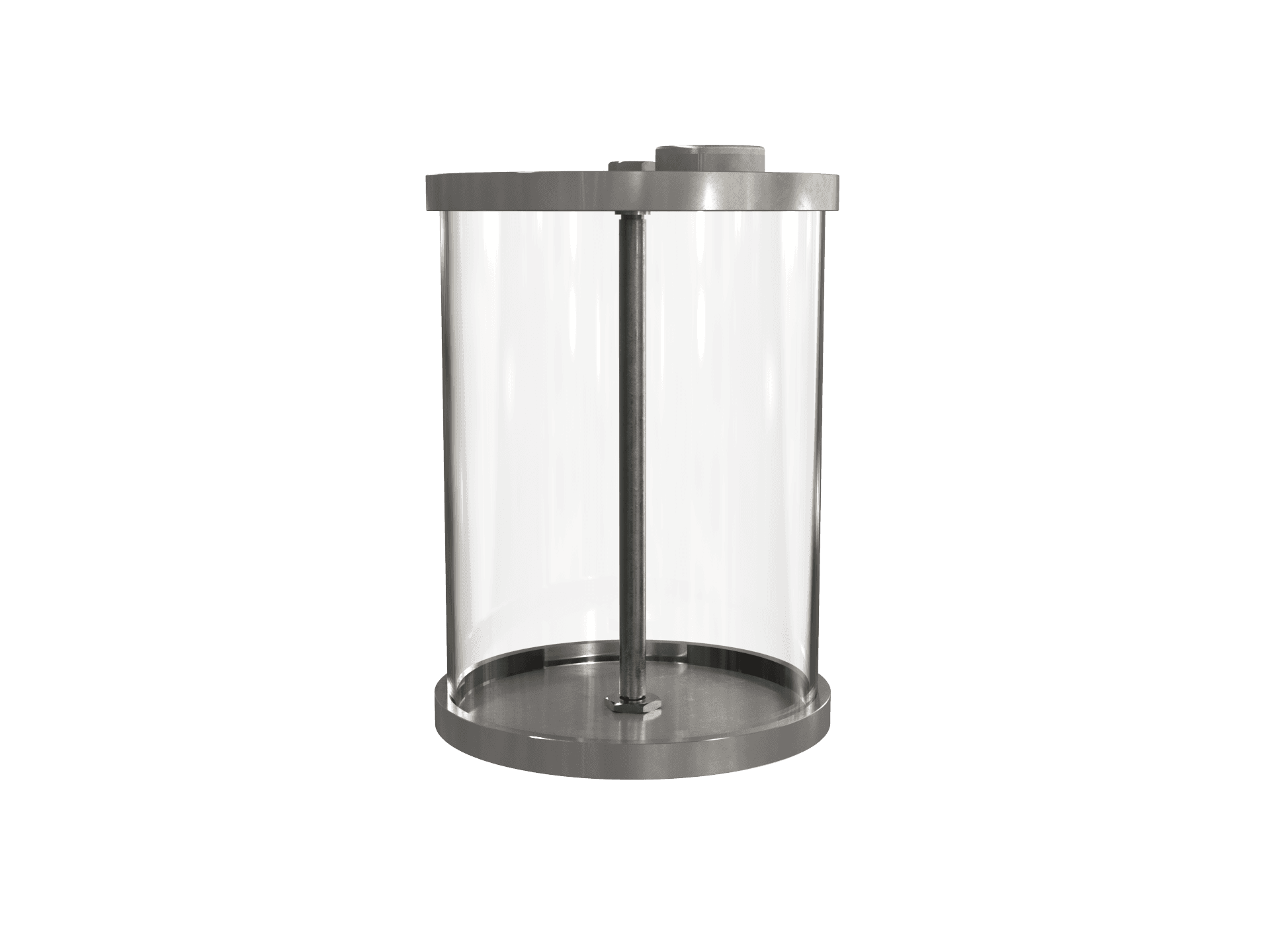

Acrylic reservoirs are rated to 160°F; Pyrex and polycarbonate to 225°F. Exceeding these limits degrades the reservoir material and can compromise the seal at the enclosure gasket. If a mounting position runs hot, upgrade the reservoir material. The same applies to bristle material: nylon is rated to 250°F and 400 RPM. Above either threshold, stainless steel is required. Running nylon bristles outside their rated range accelerates bristle loss and shortens service intervals.
