Fluent supplies CEMA-rated steel flat idlers for our conveyors and general replacement.
General specification listed below. We source carrying idlers to additional specifications as needed.
B, C, D, E, F
Single-roll, multi-roll flat
18–120 inches
4–8 inches (102–203 mm)
10 gauge–7 gauge (3.4–4.5 mm)
20 mm–50 mm, depending on load rating
Ball, tapered roller, spherical
Cold-rolled steel (C1018 or equivalent)
Steel tube, ERW steel (ERW1020)
Heavy-gauge structural steel, welded construction
Up to 600 FPM (depending on bearing and roll diameter)
-20°F to 200°F standard; high-temp options available
dependable belt support.

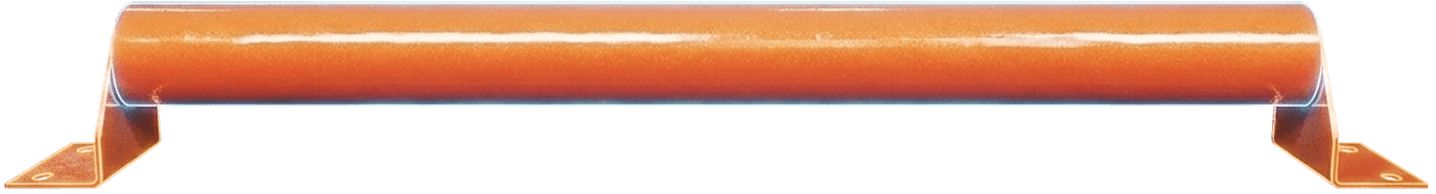

Steel flat idlers are standard for most flat belt conveyors. They also solve specific challenges.
Cost efficiency: For general dry applications where rubber's specialized properties aren't required, steel flat idlers deliver extended service life at lower initial cost.
Heavy loads: Steel construction provides superior structural rigidity for heavy bulk materials and high-tonnage applications. Steel conveyor rollers resist deflection under load better than rubber-coated alternatives.
Temperature tolerance: Steel idlers operate reliably in elevated temperatures found in covered conveyors near kilns, dryers, or hot aggregate processing. Steel maintains structural integrity in environments where rubber compounds would degrade or fail.
Long-term durability: Heavy-duty operations running 24/7 choose steel for its mechanical strength and reduced replacement frequency over the conveyor's service life.
Use rubber flat idlers for sticky materials, corrosive environments, noise reduction, or improved belt tracking on high-speed installations.

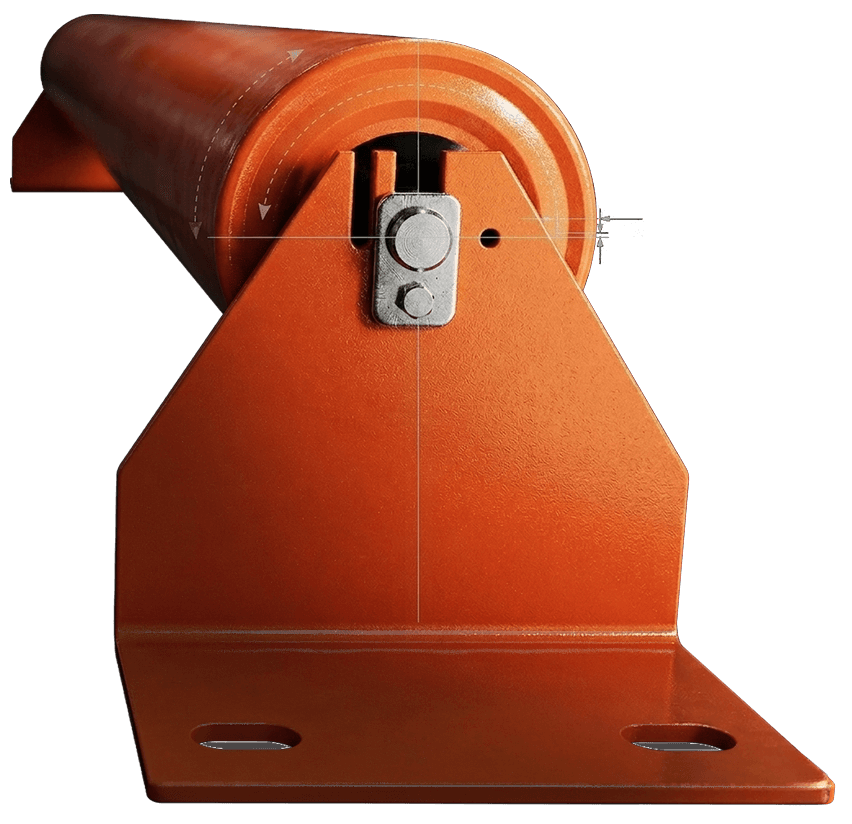

You can provide the brand and part number of your existing idler to find a match. If that’s not an option, follow these steps to identify the correct flat idlers for your application:
When in doubt, contact Fluent with photos of your existing idlers, belt width, and application details. Our engineering team can verify specifications and recommend a flat idler configuration for your conveyor.
Want installation help? See our guide on how to replace a flat idler for step-by-step instructions.
Fluent flat idlers feature rollers equipped with industry-leading seals on all CEMA configurations.
Reinforced barriers for crushing, screening, and dusty handling
We supply preconfigured idler units or individual replacement rollers as needed.
We provide ongoing support for Fluent conveyors with replacement idlers, technical guidance, and maintenance recommendations to keep your systems running smoothly.
When you purchase conveyor steel carrying idlers from Fluent, you're working with engineers who solve belt loading, spacing calculations, and CEMA specifications in our conveyor designs daily.
CEMA-rated steel flat idlers in single-roll and multi-roll configurations
Belt widths 18–120 inches, CEMA classes B through F
Temperature, load, and seal selection guidance grounded in years of real-world experience
Stock configurations ship in 1–3 business days
Whether you need replacement parts for existing systems or idler specifications for a new custom conveyor, our team provides technical guidance grounded in real-world applications.
