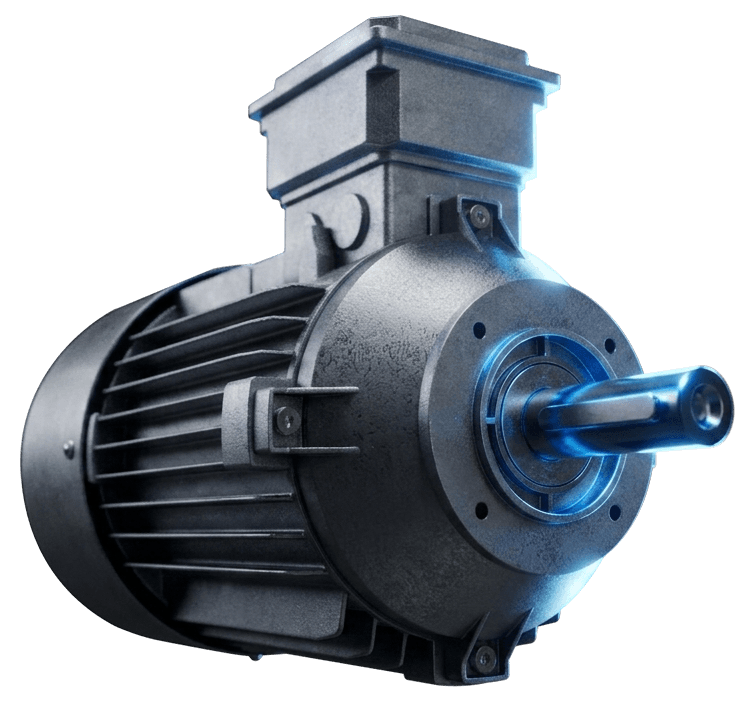

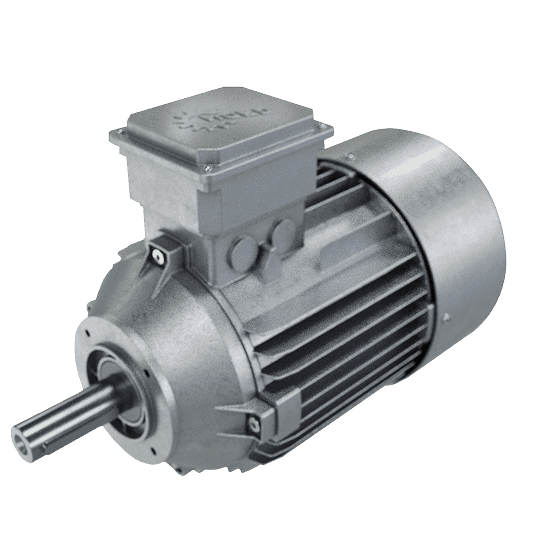

Fluent supplies asynchronous AC motors for belt conveyors and roller chain conveyors. 0.16–75 HP with IE1–IE4 efficiency options for Fluent systems and general replacement.
Reliable asynchronous motors designed for efficient and consistent industrial performance.
Three-phase asynchronous (induction)
Standard motors, universal motors, smooth surface motors, single-phase motors, two-speed motors
0.16–73.7 HP (0.12–55 kW)
IE1, IE2, IE3, IE4
230/460V, 575V, 208/360V, 332/575V
50/60 Hz

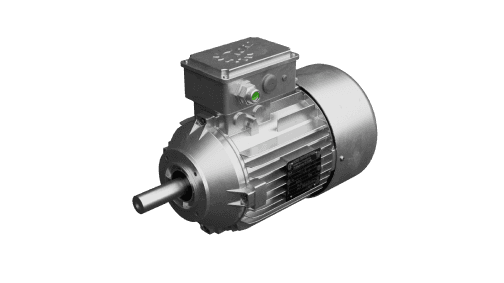

TEFC, IP55, IP66, IP69K (smooth surface), explosion-proof
NEMA footed (B3), IEC footed, NEMA C-flange, flange (B5/B14)
Fixed speed, VFD-compatible (inverter duty available)
5:1, 10:1, and wider ranges depending on motor series
CE, UL, CSA, and other international approvals (universal motors); worldwide approvals
to minimize downtime.
Designed for safe, reliable, and efficient performance in demanding industrial environments.

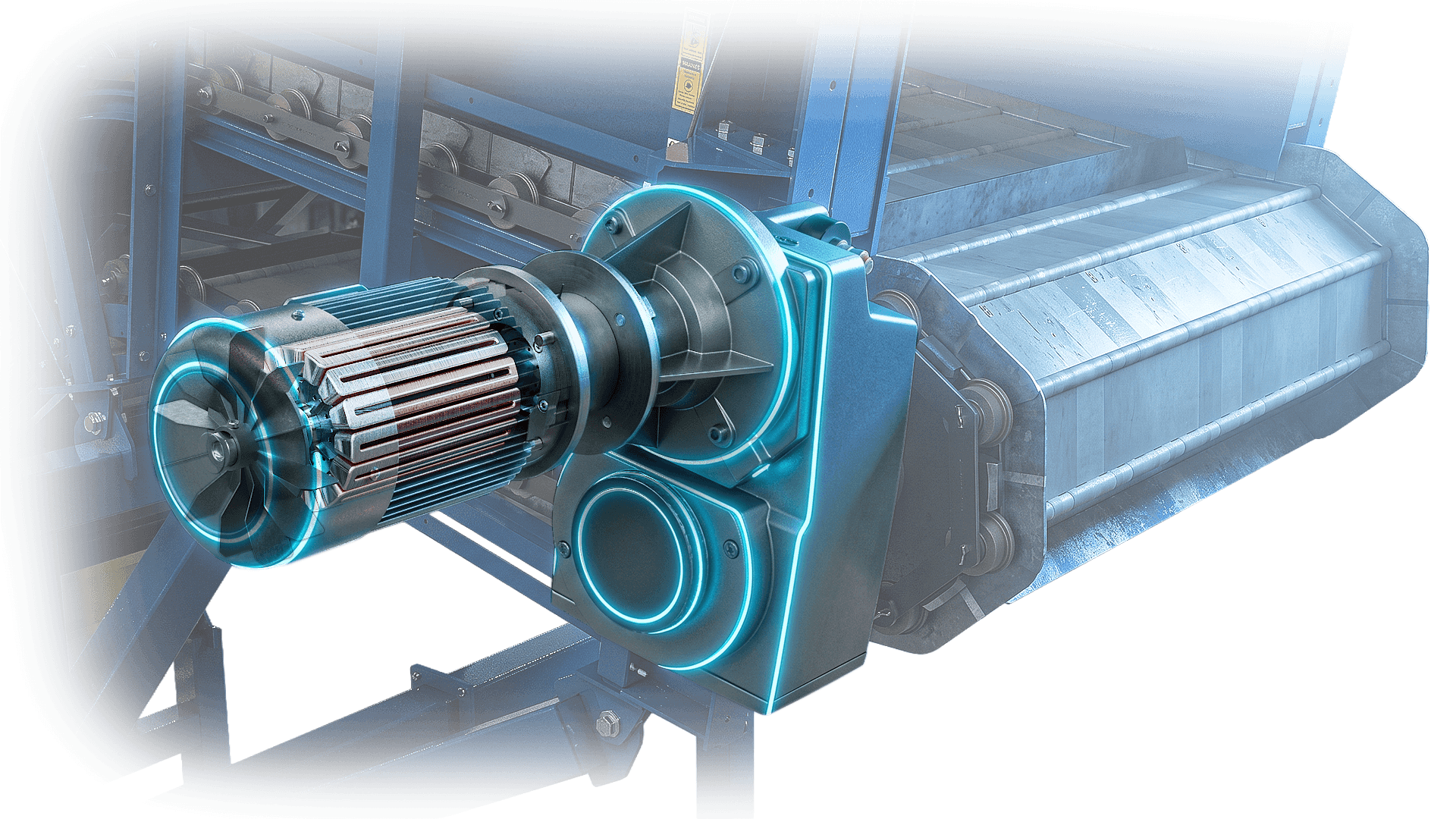

1.Match nameplate specifications: Record HP, voltage, frequency, RPM, frame size, mounting configuration, shaft dimensions. Photograph nameplate and mounting arrangement including bolt patterns and available clearances.
2.Document environment: Note ambient temperature range, washdown frequency, dust levels, hazardous area classifications. Environmental factors determine required enclosure and certification.
3.Verify compatibility: For gearmotors, confirm input shaft dimensions, mounting flange patterns, and load ratings match existing installation.
New installations and upgrades
1.Calculate horsepower requirements: Use CEMA methods accounting for belt speed, material load, conveyor length, incline angle, and friction. Include starting torque for loaded startup conditions.
2.Select service factor: Specify 1.15–1.25 service factor providing margin for occasional overloads. Undersized motors overheat and fail prematurely.
Determine efficiency class: Specify IE3 minimum for conveyors operating more than 4,000 hours annually. Upgrade to IE4/IE5+ for 24/7 continuous duty.
3.Specify speed control: Fixed-speed applications use across-the-line starters. Variable speed requires VFD with inverter-duty motor specification.
4.Confirm environmental requirements: Specify IP rating, washdown capability, or explosion-proof certification matching facility conditions.
Asynchronous (induction) motor rotors are driven by induced currents and always lag the stator field, so they run at synchronous speed minus slip.
Choose asynchronous motors when:
Conveyors operate intermittently or less than 4,000 hours annually
Initial cost constraints prioritize lower upfront investment
Standard efficiency meets facility energy targets
Application requires broad serviceability
Typical applications: Slider bed conveyors for packaging, flat idler conveyors for sorting, tumble-back conveyors for metering.

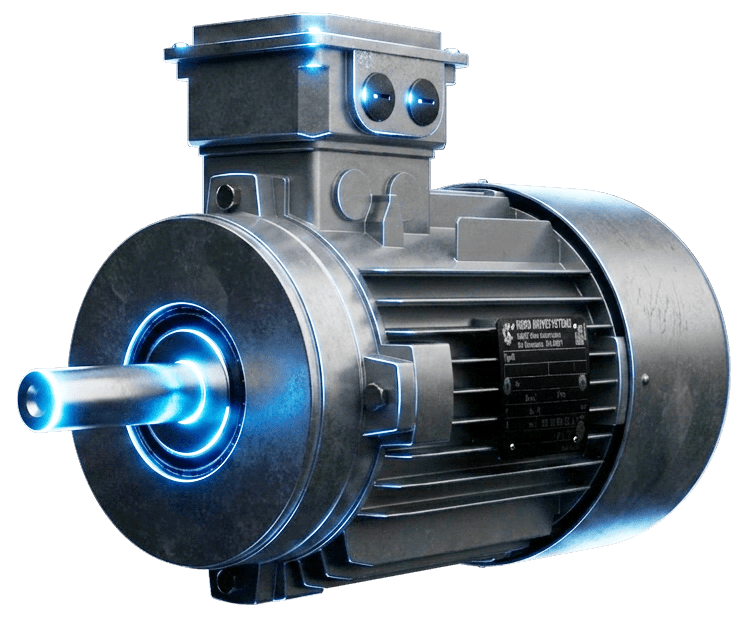

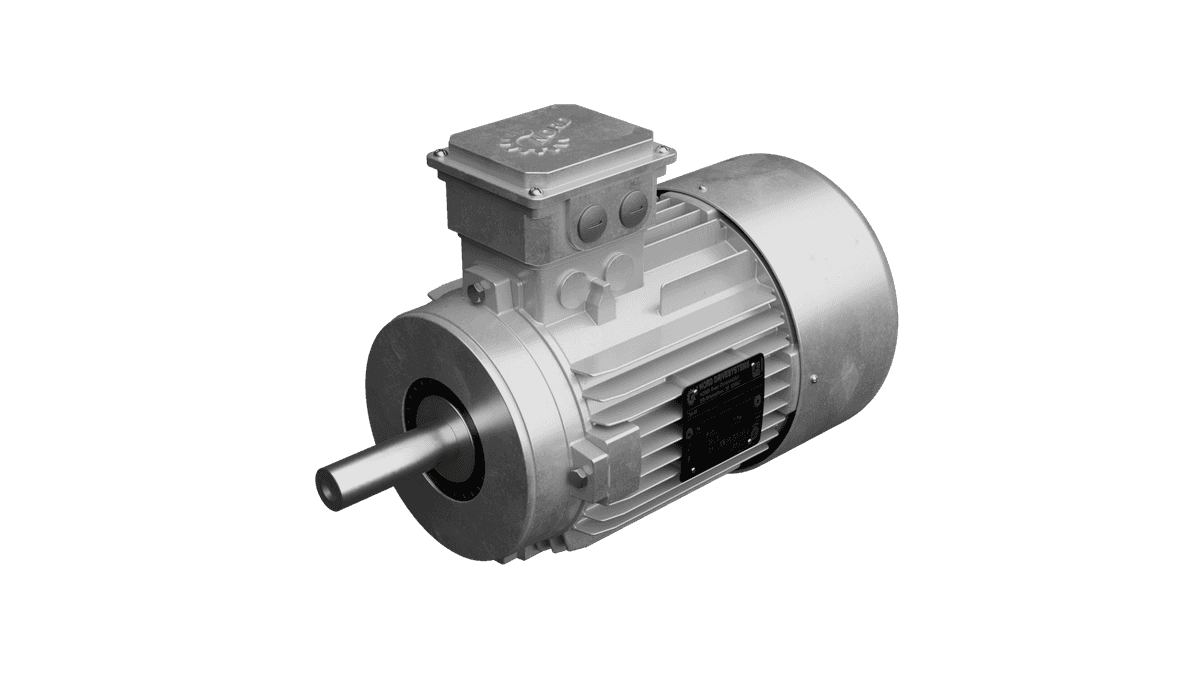

Synchronous motor rotors lock magnetically to the stator’s rotating field, so rotor speed equals synchronous speed (no slip) as long as it stays in step.
Choose synchronous motors when:
Conveyors operate continuously (more than 6,000 hours annually)
Energy costs dominate lifecycle expenses
Facility targets maximum efficiency and carbon reduction
Application requires constant torque across wide speed ranges with VFD control
Typical applications: Trough idler conveyors in material recovery facilities, distribution center sortation systems, aggregate operations with 24/7 runtime.
Asynchronous motors can be configured with the following features.
Motor brakes: Holding torque prevents rollback on inclined conveyors or during emergency stops
Incremental encoders: Speed feedback for precise speed regulation and position control
External fans: Independent cooling for prolonged low-speed operation below 30 Hz
Temperature sensors (TF): PTC or RTD monitoring with early warning of overheating
Thermostats (TW): On/off switching at preset temperature thresholds
Space heaters (SH): Anti-condensation heating for humid environments

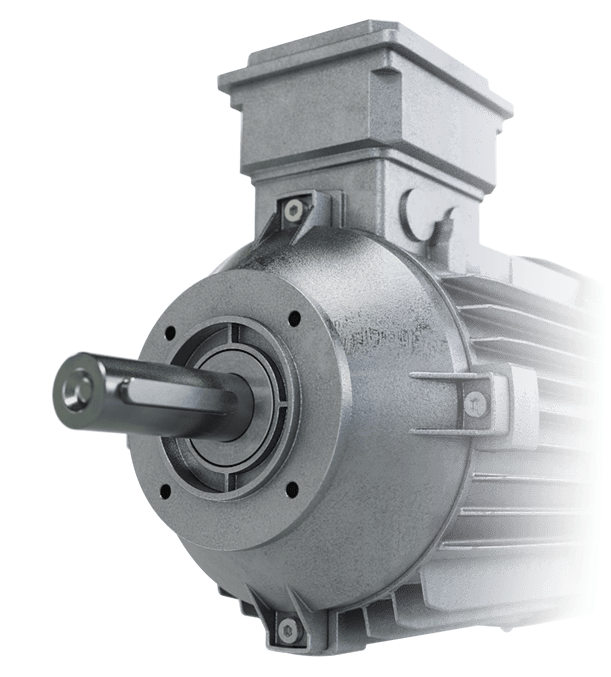

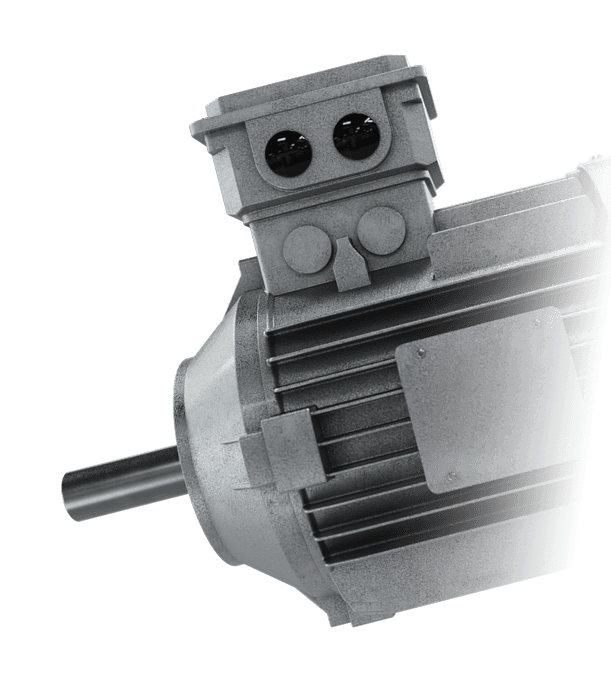

IP55 (standard): Dust ingress prevention, low-pressure water jet protection. Suits most indoor applications.
IP66 (washdown): Complete dust sealing, powerful water jet protection. For outdoor or washdown environments.
IP69K (steam cleaning): High-pressure, high-temperature steam resistance. For food processing with steam sanitization.

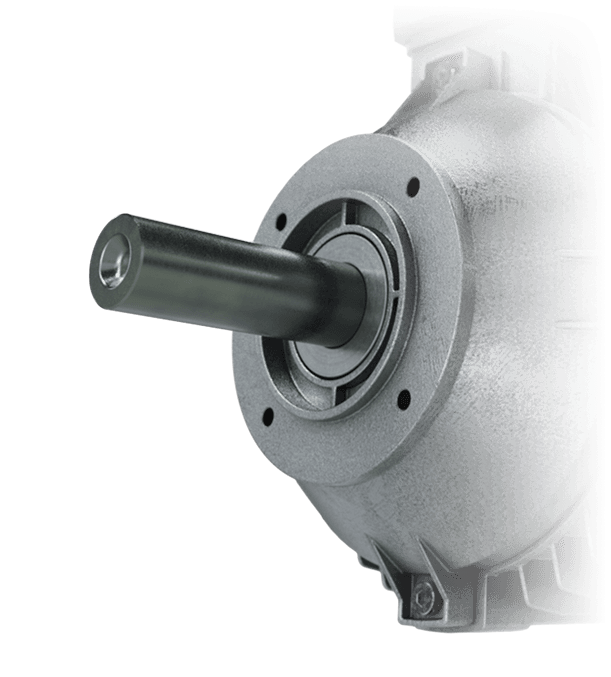

NEMA footed (B3): Standard foot mounting to flat surfaces
IEC footed: International standard foot mounting
NEMA C-flange: Direct mounting to North American gearboxes
Flange (B5/B14): Direct mounting to IEC gearboxes
Shaft-mounted: Direct mounting to driven equipment shaft with torque arm

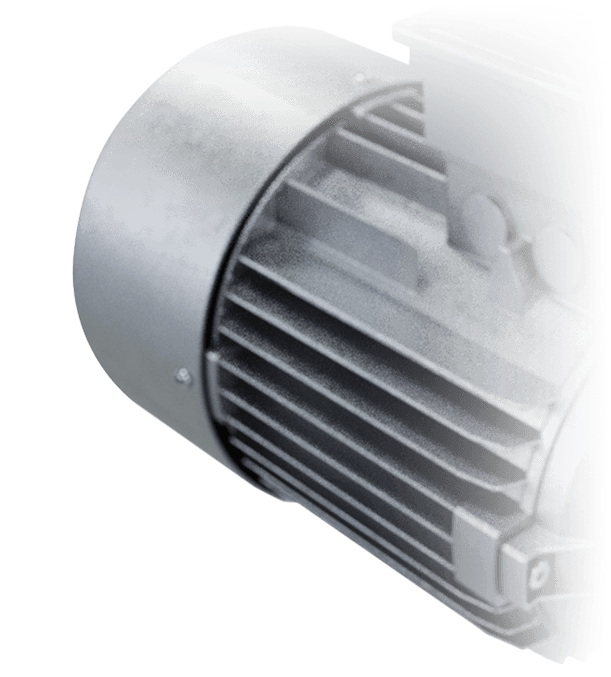

Motor plug connections: Quick-disconnect wiring simplifies replacement
Sealed terminal boxes: Enhanced environmental protection at connection point

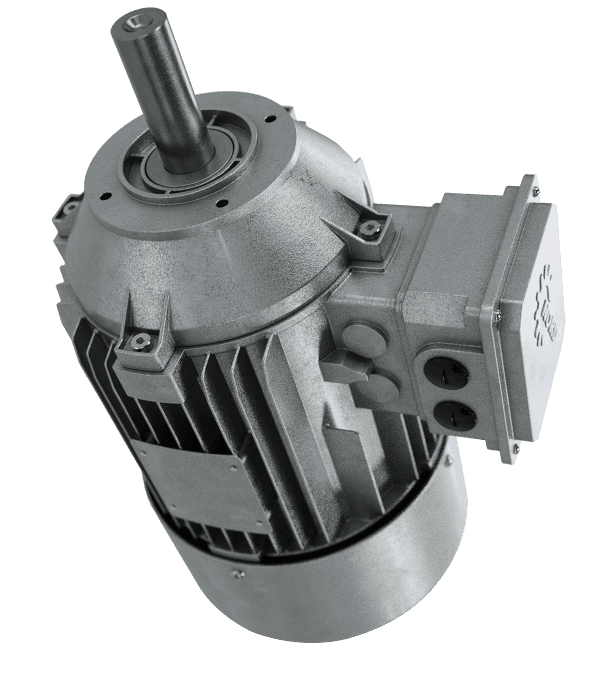

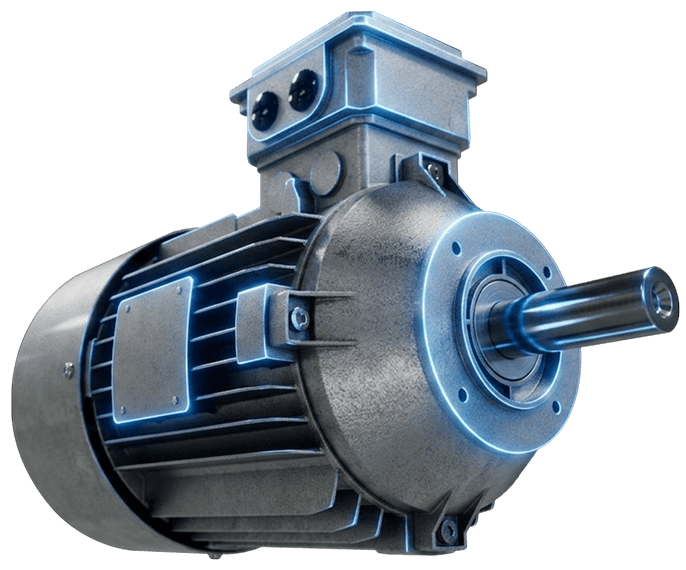

We sell helical bevel drives, helical inline drives, parallel shaft drives, and worm drives for our motors. All gearboxes are available in washdown duty, explosion-proof, and corrosion-resistant options.

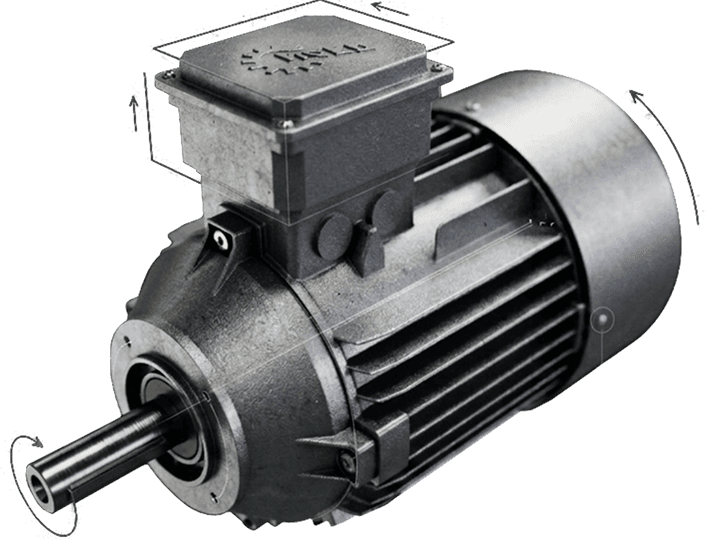

Pre-engineered motor-gearbox combinations arrive matched and aligned, eliminating field assembly time and alignment errors. We confirm ratio requirements, thermal ratings, and mounting compatibility before shipment. Complete drive packages can include factory-configured control systems and PLCs programmed for your specific gearbox assembly, providing plug-and-play conveyor control solutions.
Motor brakes are available factory-installed on gearmotors or as field-installed additions, matched to drive unit torque and duty cycle requirements. Control panels can be configured with variable frequency drives (VFDs), soft starters, and system programming tailored to your operational requirements.

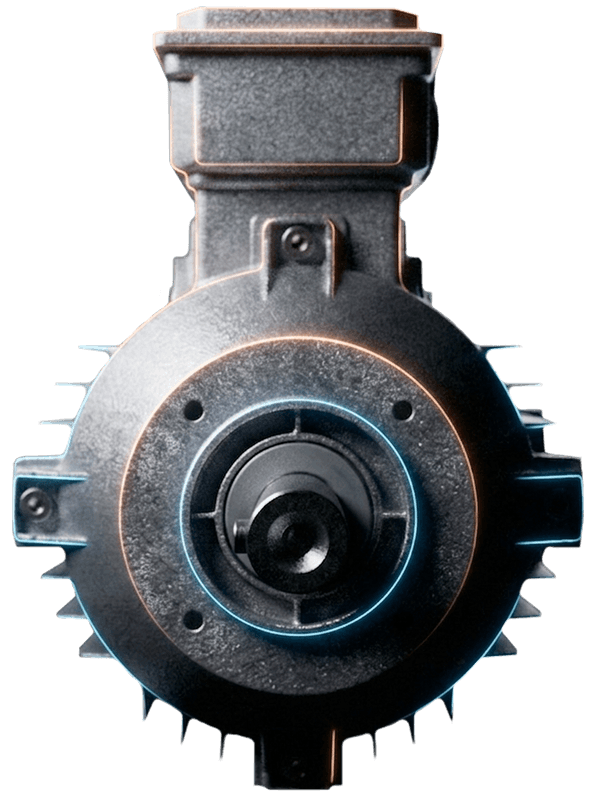

Our asynchronous motors meet industry standards for safety, efficiency, and environmental protection:

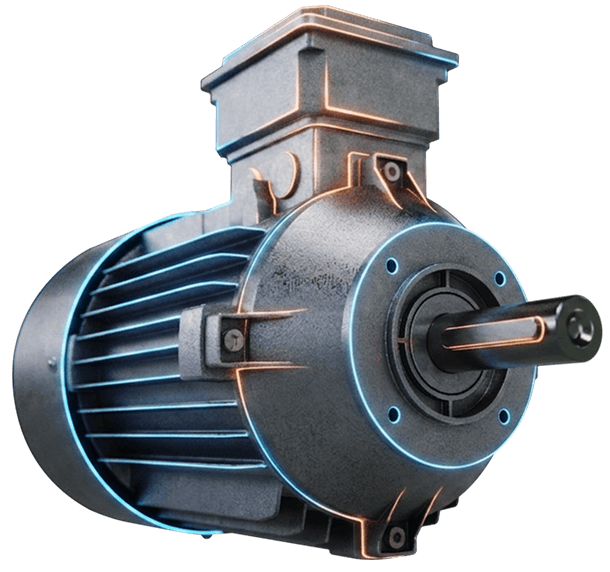

Need a conveyor solution? We can design and build it. All of our durable conveyors are engineered and manufactured in the USA to the most stringent tolerances.
Nord, Baldor, Leeson, Toshiba TEFC motors selected for 24/7 operation
All hardware is grade 8 for maximum strength
Painted with industrial-grade powder coating for durability
Designed for simple maintenance access and component serviceability
Extensively tested and inspected before shipment
25-35 pound rail track to withstand heavy materials
ASTM A36 steel for fabrication per structural code
Premium bearings sized for L10 life ratings, made in USA
All systems fabricated by certified welders for structural integrity
Precision components such as cold-rolled steel shafts and flame-hardened sprockets
3/16" and 1/4" thick structural steel frames to prevent flexing
Constructed from heavy-duty steel plate, rectangular tubing, and structural channel
Dodge, Nord, SEW drives matched to application torque
Goodyear, Flexco belt options resistant to rips, tears, and impacts
Made from durable materials, our conveyors deliver exceptional strength and longevity for recycling, waste management, and other demanding industries. Whether you need a roller chain conveyor, a flat idler conveyor, a slider bed conveyor, or any other custom conveyor, contact Fluent and tell us what you need. We will build you a custom conveyor system—and you can even pick your color.
