Fluent supplies CEMA-rated steel return idlers for our conveyors and general replacement on standard conveyor applications, clean materials, and dry environments.
General specifications listed below. We source return idlers to additional specifications as needed.
B, C, D, E, F
18–96 inches (custom widths available)
4–6 inches (depending on CEMA class)
Sealed ball bearings
Cold-rolled steel (C1018 or equivalent)
Standard steel, ERW steel (ERW1020), DOM tubing for Class F applications
Optimized for wet, optimized for dry and dusty, optimized for dredging and fines, high moisture
Standard drop brackets, channel inset (low profile), web mount
Painted, galvanized, or stainless steel
8–10 feet on return run (closer for high-speed applications)
long-term return support.

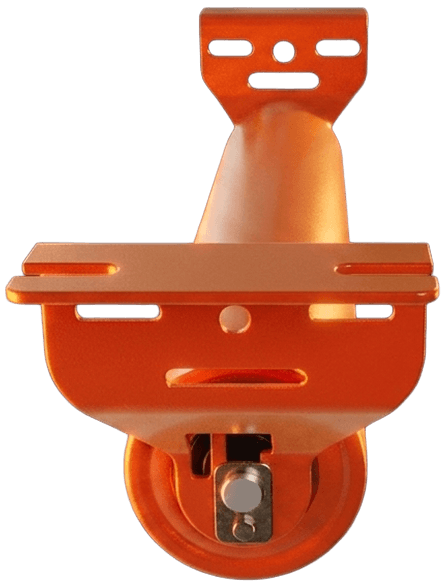

Steel return idlers are the general-purpose choice for clean operating conditions. Use steel idlers for:
Clean, non-sticky materials, like aggregates, grain, and manufactured goods
Dry operating environments
High-speed conveyors
Standard return run conditions without significant carryback

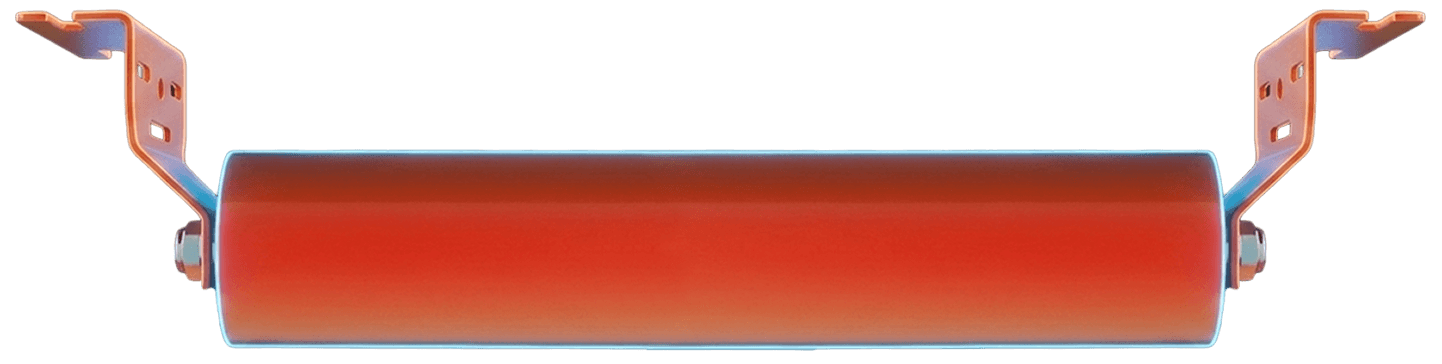

For challenging environments and conditions, try these solution-based return idlers:
Disc return idlers: Sticky materials or significant material buildup
Rubber return idlers: Abrasive fines or impact zones
Urethane return idlers: Extended service life in harsh conditions
Beater bar return idlers: Heavy material buildup

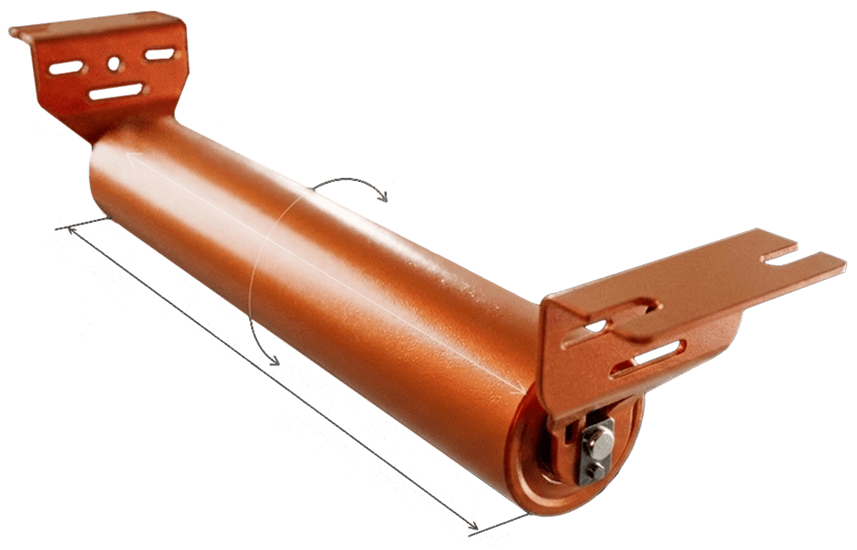

In most cases, you can provide the brand and part number of the steel return idler you're replacing to get a match. If that's not an option, follow these steps to identify the right return idler for your conveyor application:
When in doubt, contact Fluent with photos of your existing idlers, belt width, material type, and application details. Our engineering team can verify specifications and recommend a steel return idler configuration for your conveyor system.
Fluent steel return idlers contain industry-leading seals on all CEMA configurations.
Combined protection for extreme conditions with washed sand and fines
We supply preconfigured idler units with your chosen seal.
Fluent manufactures belt conveyor systems that rely on specific idlers for reliable operation. We supply all replacement steel return idlers needed to support these conveyor types:
We provide ongoing support with replacement idlers, technical guidance, and maintenance recommendations to keep your systems running efficiently.
Fluent designs and manufactures industrial conveyors. When you purchase conveyor idlers from Fluent, you're working with engineers who understand idler spacing, belt loading, and CEMA specifications because we deal with them in our conveyor designs every day.
Whether you need replacement parts for existing equipment or steel return idler specifications for a new custom conveyor, our team provides technical guidance grounded in real-world conveyor applications.
