Fluent supplies CEMA-rated rubber return idlers for our conveyors and general replacement. Corrosion-resistant belt protection on the return run.
General specifications listed below. We source return idlers to additional specifications as needed.
C, D, E (other classes available)
18–96 inches (custom widths available)
4–6 inches
Flat, V-return, self-aligning
Rubber lagging, grooved rubber
Sealed ball bearings
Optimized for wet, dry and dusty, dredging and fines, high moisture
Standard drop brackets, channel inset options
Painted frames, galvanized, stainless steel
8–10 feet on return run
longer-lasting operation.

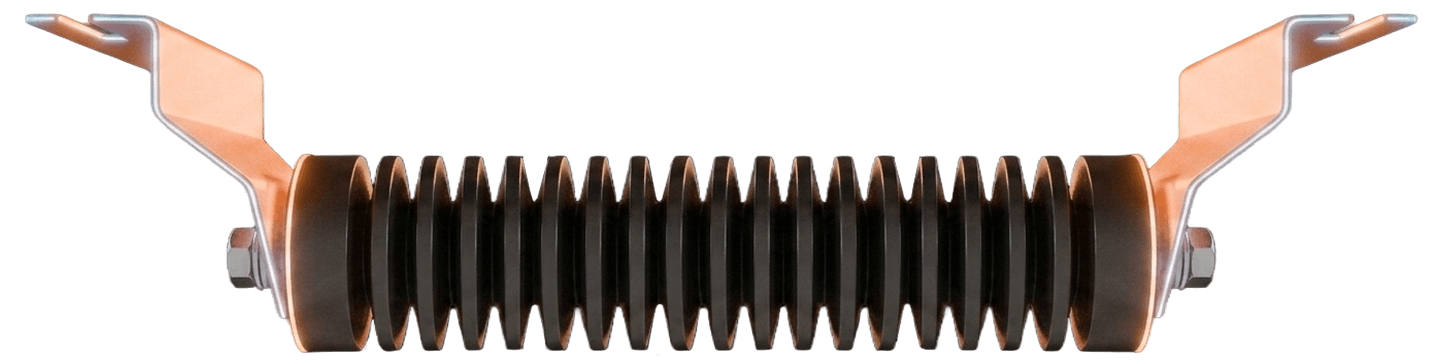

Rubber rollers solve problems that steel can’t cope with. Use rubber return idlers when:
Materials are sticky, abrasive, or leave carryback on the return side
Operating in corrosive or high-moisture environments
Belt tracking problems result from uneven roll friction
Belt cover wear is causing premature replacement
Noise reduction is a priority
Transition zones require shock absorption
For clean materials, dry environments, and general duty, use steel return idlers.

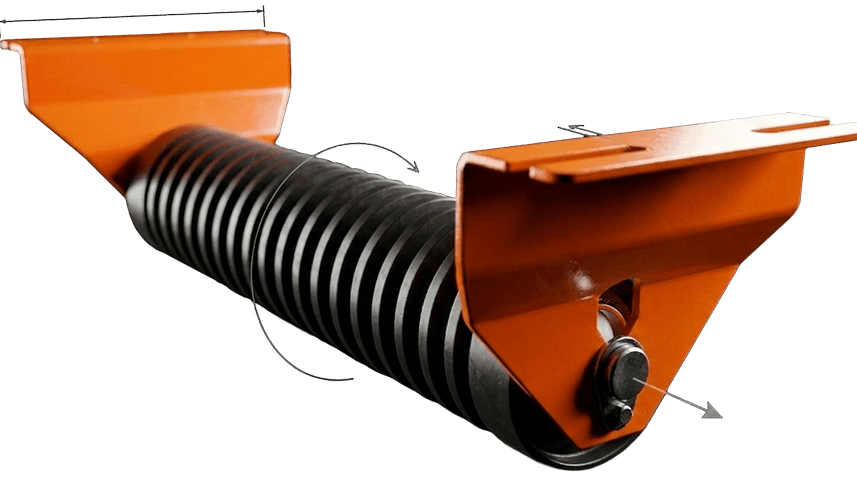

In most cases, you can provide the brand and part number of the rubber return idler you're replacing to get a match. If that's not an option, follow these steps to identify the right rubber return idler for your conveyor application:
When in doubt, contact Fluent with photos of your existing idlers, belt width, and application details. Our engineering team can verify specifications and recommend a rubber return idler configuration for your conveyor system.
Fluent rubber return idlers contain industry-leading seals on all CEMA configurations.
Enhanced protection for wash plants, dredging, and high-moisture applications
We supply preconfigured idler units with your chosen seal.

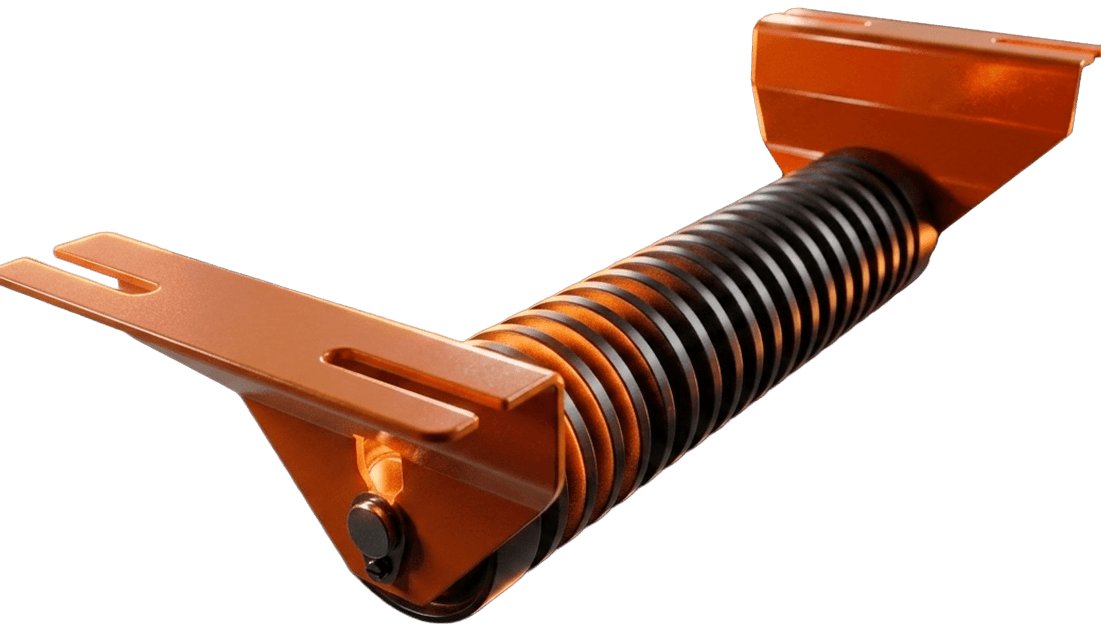

For carryback, try disc return idlers with flexible rubber discs that shed sticky materials or beater bar return idlers that use vibration to knock off stubborn buildup. Combine both configurations to create a complete belt cleaning system.
Fluent manufactures belt conveyor systems that rely on specific idlers for reliable operation. We supply all replacement rubber return idlers needed to support these conveyor types:
We provide ongoing support with replacement idlers, technical guidance, and maintenance recommendations to keep your systems running efficiently.
Fluent designs and builds industrial conveyors. When you purchase conveyor idlers from Fluent, you're working with engineers who understand spacing calculations, belt loading, and CEMA specifications because we deal with them in our conveyor designs every day.
Whether you need replacement parts for existing equipment or rubber return idler specifications for a new custom conveyor, our team provides technical guidance grounded in real-world conveyor applications.
