Disc return
Idlers

Fluent supplies CEMA-rated disc return idlers for our conveyors and general replacement — releasing sticky materials and reducing carryback on the return run.

Disc idler specifications

General specifications listed below. We source return idlers to additional specifications as needed.

CEMA classes

C, D, E (other classes available)

Belt widths

18–96 inches (custom widths available)

Roll diameters

5–6 inches

Shaft sizes

1-7/16 inch, 1-15/16 inch

Shaft design

Dead shaft with rotating roll

Disc configurations

Standard rubber disc, spiral disc, grooved disc

Bearings

Sealed ball bearings

Seals

Optimized for wet, dry and dusty, dredging and fines, high moisture

Mounting

Standard drop brackets

Finish options

Painted, galvanized, or stainless steel

Typical spacing

8–10 feet on return run (adjust based on carryback severity)

Disc design that minimizes carryback
and maximizes efficiency.

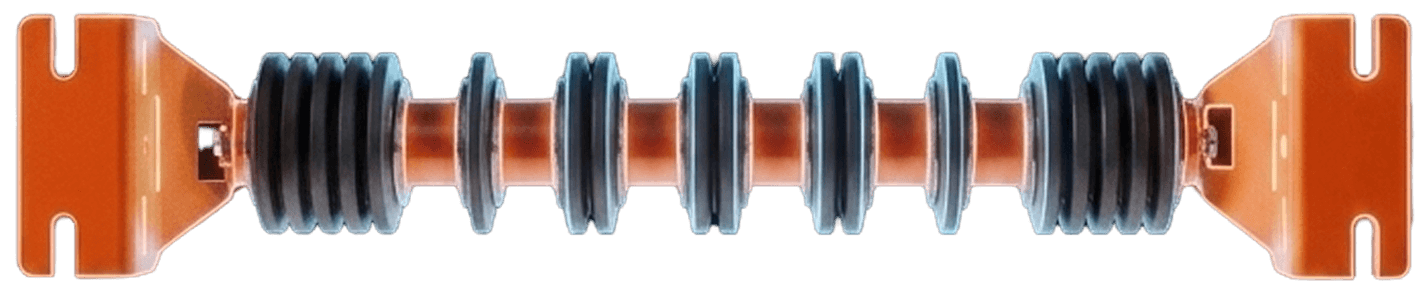

How disc idlers work

The rubber discs flex as the belt moves across them, creating a self-cleaning action that releases sticky materials, clay, fines, and wet aggregates that would otherwise build up on steel return idlers.

Gaps between the discs allow released material to fall away rather than accumulating. This design reduces material buildup on the return idlers, protects the belt cover from abrasion, and improves belt tracking by preventing uneven loading caused by carryback.

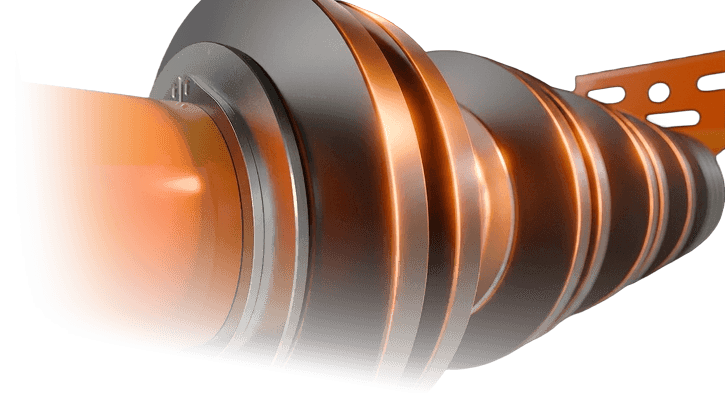

When to use rubber disc return idlers

Sticky materials like clay, wet sand, or fines
Fine grain or powdery materials
Mining, waste processing, aggregate, dredging, or bulk material handling operations
Portable conveyors that handle multiple materials
High dust and moisture conditions

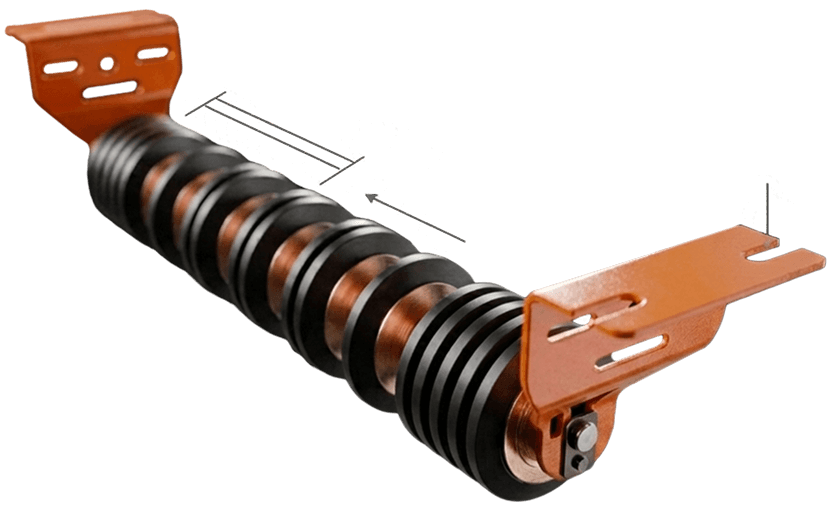

How to choose replacement disc return idlers

In most cases, you can provide the brand and part number of the disc return idler you're replacing to get a match. If that's not an option, follow these steps to identify the right disc return idler for your conveyor application:

Measure your belt width

Belt width determines idler roll length.

Verify the CEMA class

Calculate the required CEMA rating based on belt width, belt speed, and conveyor length.

Assess carryback severity

Determine whether standard disc return idlers, spiral disc configuration, or grooved disc configuration best matches your carryback and material buildup conditions.

Determine quantity and spacing

Space disc return idlers 8–10 feet apart on the return run. For severe carryback conditions, use closer spacing or place disc return idlers strategically where buildup concentrates.

Check mounting style

Note whether your existing return idlers use standard drop brackets. Disc return idlers mount to standard return idler frames for straightforward retrofits.

Confirm bearing seal requirements

Match seal specifications to your operating environment. Choose seals optimized for wet, dry and dusty, dredging and fines, or high moisture applications.

Select appropriate finish

Standard painted finish suits most applications. Choose galvanized or stainless steel for corrosive environments.

When in doubt, contact Fluent with photos of your existing idlers, belt width, material type, and application details. Our engineering team can verify specifications and recommend a disc return idler configuration for your conveyor.

How to choose replacement disc return idlers

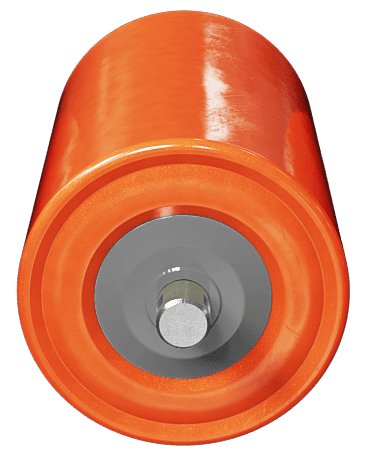

Replacement disc idler seals

Fluent rubber disc idlers contain industry-leading seals on all CEMA configurations.

Dry idler seals

Reinforced barriers for crushing, screening, and dusty aggregate handling

View Product

We supply preconfigured idler units with your chosen seal.
