Fluent supplies CEMA-rated beater bar return idlers for our conveyors and general replacement. Remove carryback from flat and cleated belt return runs.
General specifications listed below. We source return idlers to additional specifications as needed.
C, D (other classes available)
18–96 inches (custom widths available)
5–6 inches
1-7/16 inch, 1-15/16 inch
Sealed ball bearings
Standard drop brackets (4.5" for C/D), compatible with existing frames
Painted, galvanized, or stainless steel
Dead shaft (stationary) with rotating roll
8–10 feet on return run (adjust based on carryback severity)
ensure uninterrupted performance.

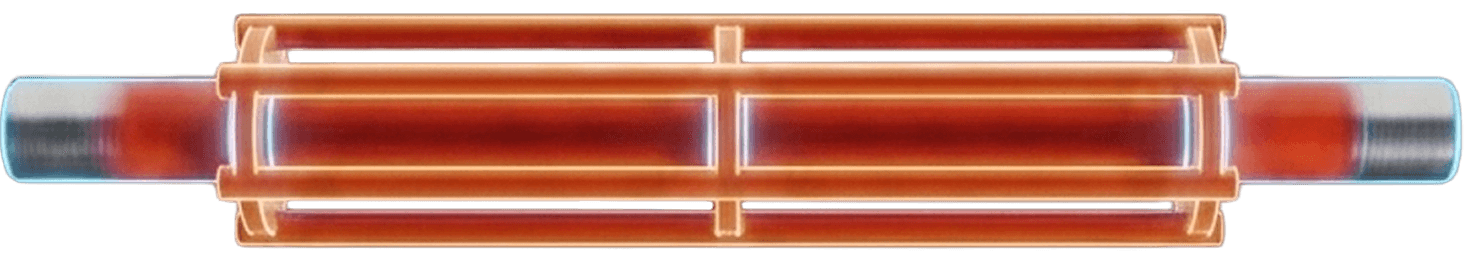

Beater bars (also squirrel cage return rolls) are steel rod-style return idlers that use controlled vibration to remove carryback material. As the belt rotates over the open steel bars, the rods dislodge stuck materials using vibration. Gaps between bars allow released material to fall instead of building up on the roll.
Beater bars are compatible with all rubber belts. They perform especially well with cleated conveyor belts and chevron belts since they can clean raised profiles without causing damage.

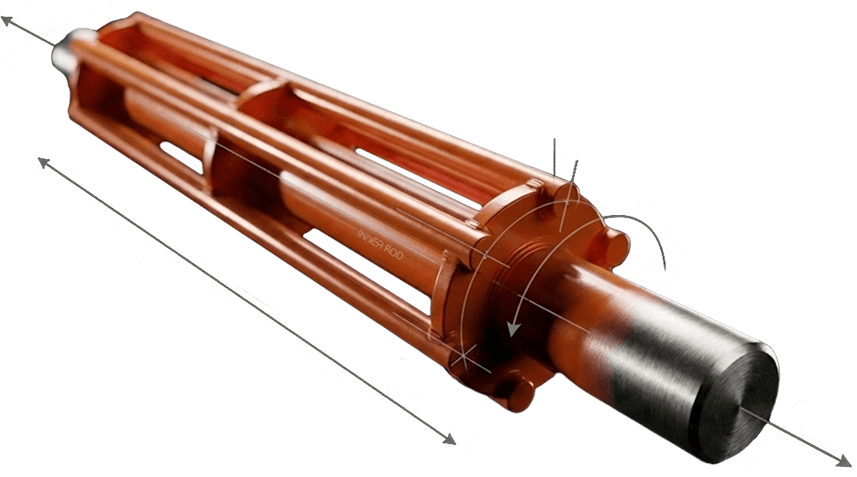

In most cases, you can provide the brand and part number of the beater bar return idler you're replacing to get a match. If that's not an option, follow these steps to identify the right beater bar return roll for your conveyor application:
When in doubt, contact Fluent with photos of your existing idlers, belt width, belt type (flat or cleated), and application details. Our engineering team can verify specifications and recommend a beater bar configuration for your conveyor.
Fluent beater bars contain industry-leading seals on all CEMA configurations.
Combined protection for extreme conditions with washed sand and fines
We supply preconfigured idler units with your chosen seal.
Fluent manufactures belt conveyor systems that rely on specific idlers for reliable operation. We supply all replacement beater bars needed to support these conveyor types:
We provide ongoing support with replacement idlers, technical guidance, and maintenance recommendations to keep your systems running efficiently.
Fluent designs and builds industrial conveyors. When you purchase beater bar return idlers from Fluent, you're working with engineers who understand carryback removal, belt loading, and CEMA specifications because we deal with them in our conveyor designs every day.
Whether you need replacement parts for existing equipment or beater bar specifications for a new custom conveyor, our team provides technical guidance grounded in real-world conveyor applications.
