Fluent supplies CEMA-rated rubber unequal troughing idlers for our conveyors and as drop-in replacements for existing installations. Rubber disc roll configurations for picking, sorting, and impact absorption.
General specification listed below. We source carrying idlers to additional specifications as needed.
B, C, D, E, F
18–96 inches
20°, 35°, 45°
4–7 inches
Rubber disc construction
Standard inline, wide-base, channel inset (low profile)
Standard ball, spherical; wet or dry/dusty seal packages
Top mount, channel inset
Painted, galvanized
for heavy-duty material flow.

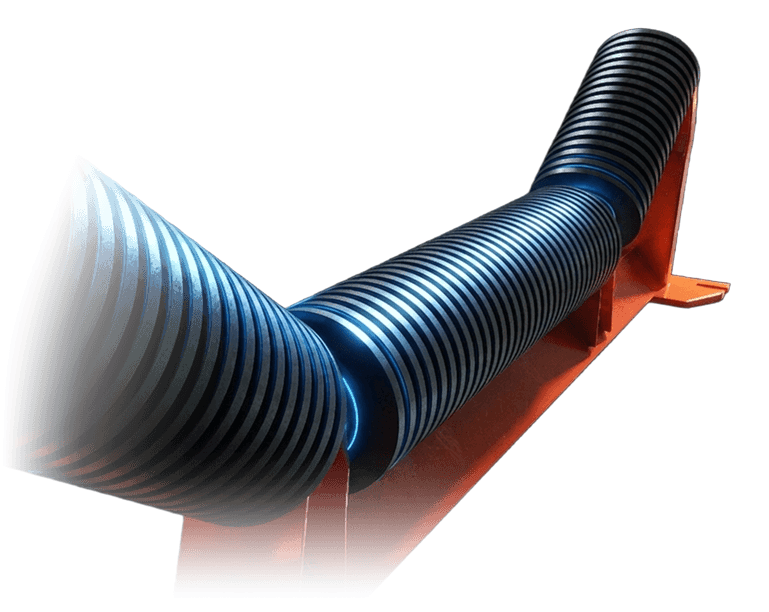

Many unequal troughing idlers are compatible with picking conveyors, but our picking idlers page features specific configurations for sortation conveyors and manual picking stations with optimized frame designs and worker access.
Rubber rolls solve specific challenges that steel rolls don’t effectively address. Both rubber disc rolls and solid rubber rolls provide these benefits, with disc configurations offering additional self-cleaning properties.

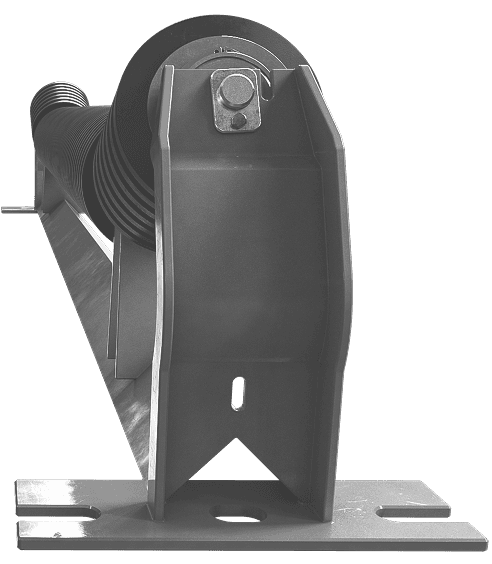

Rubber idlers cushion impact at loading zones, reducing belt damage and extending belt life.

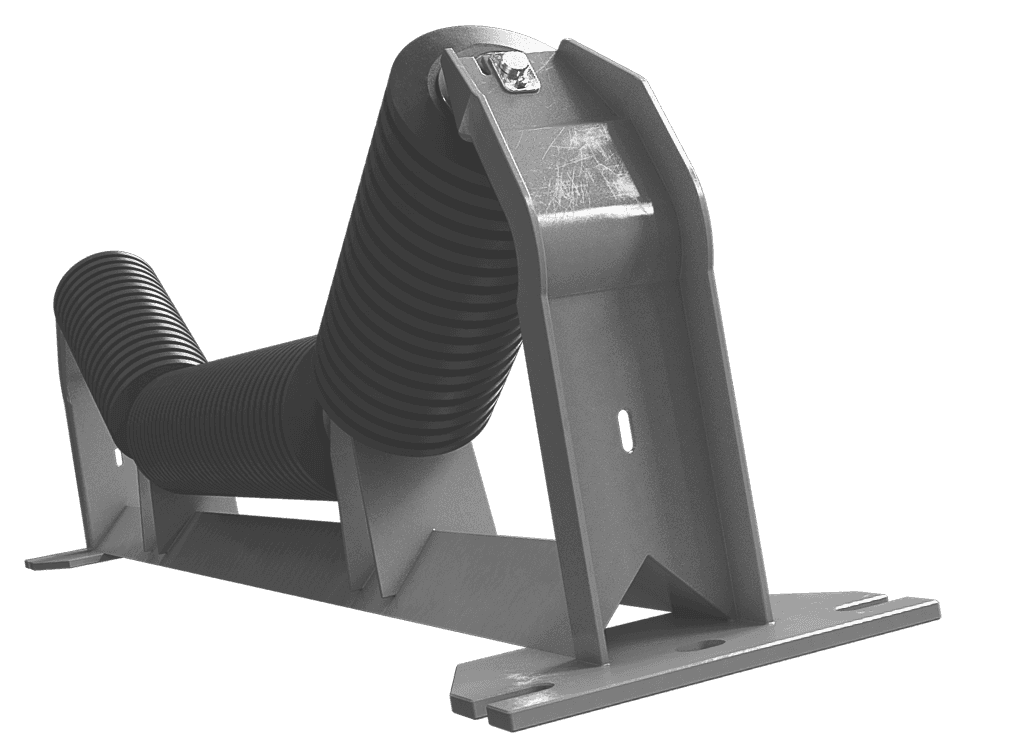

Self-cleaning rubber surfaces shed clay, wet aggregate, and other adhesive materials that build up on steel rolls and cause belt tracking problems.

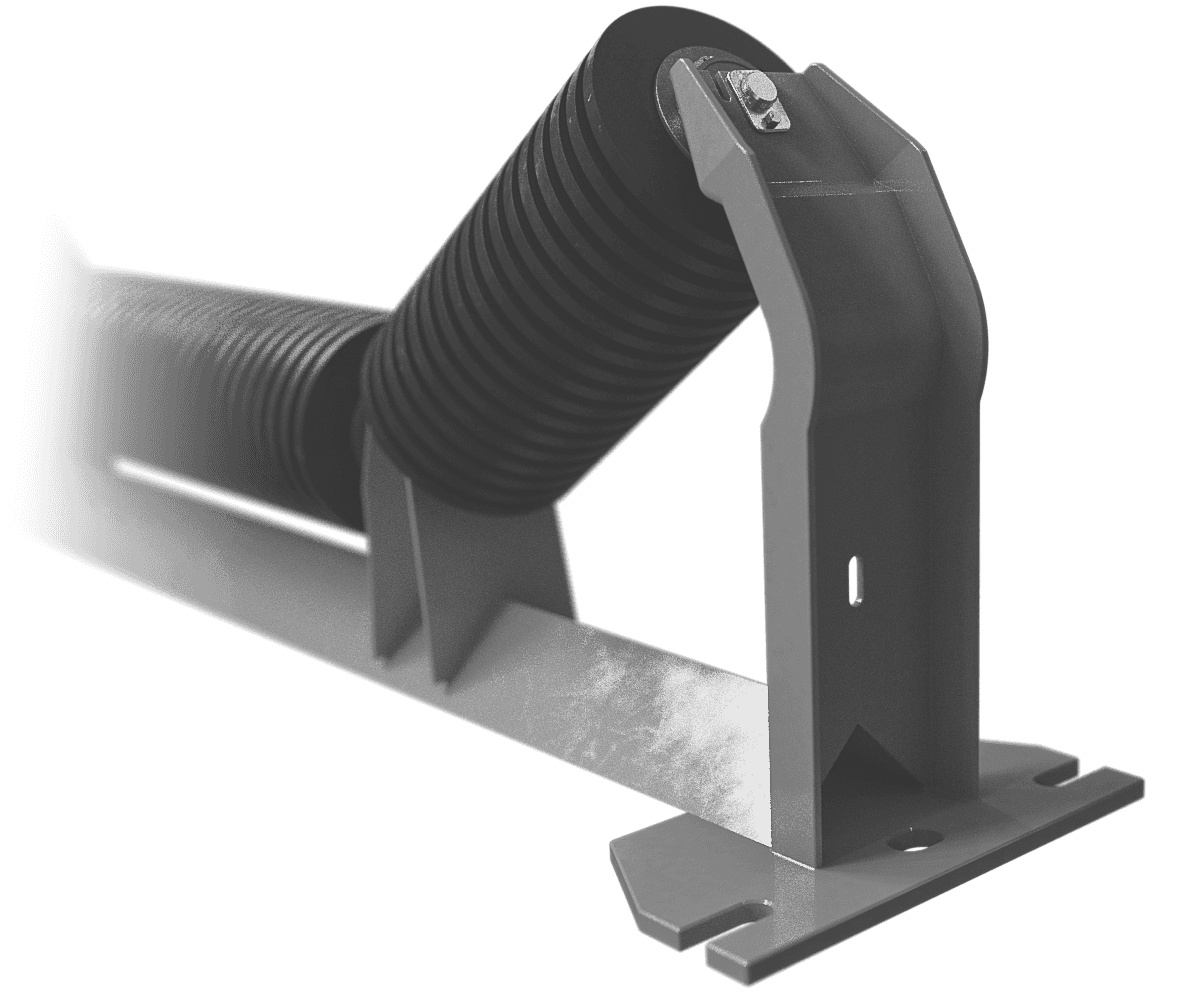

Rubber rolls reduce friction and wear on conveyor belts compared to steel, particularly on reversing conveyors or where belts contact rolls at unusual angles.

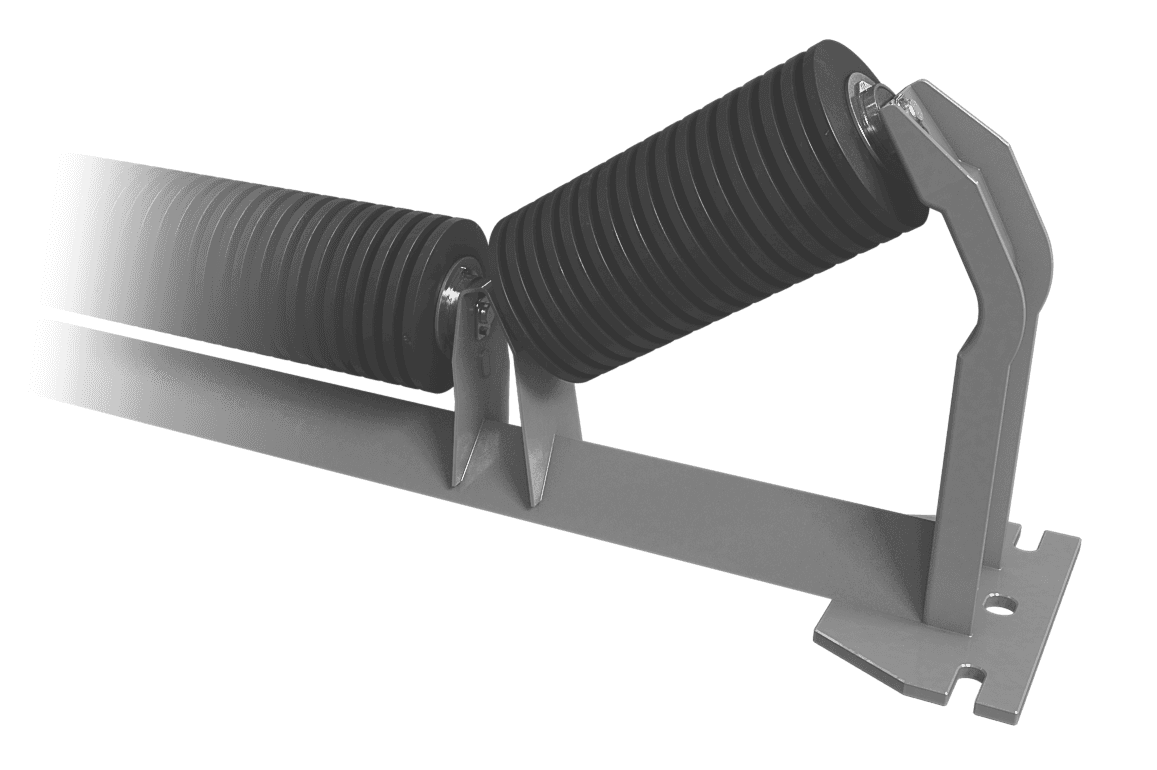

Rubber rolls operate more quietly than steel.

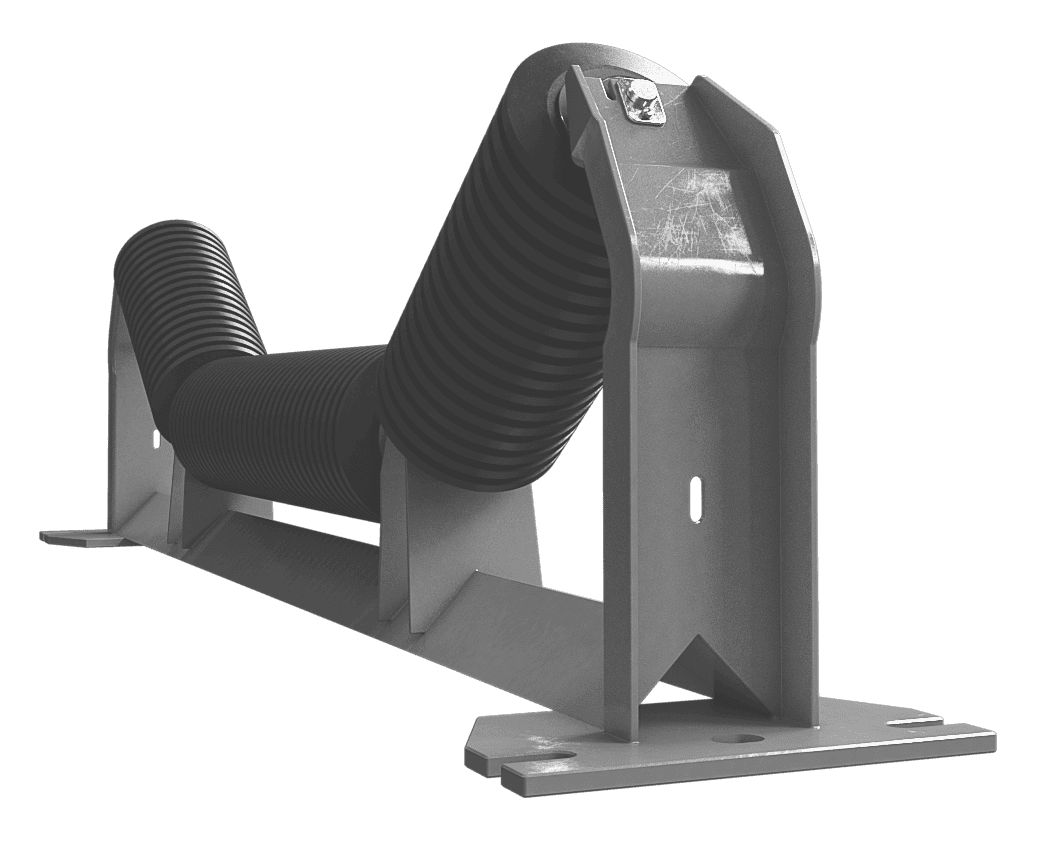

Rubber resists certain chemicals better than steel, prolonging service life and uptime.

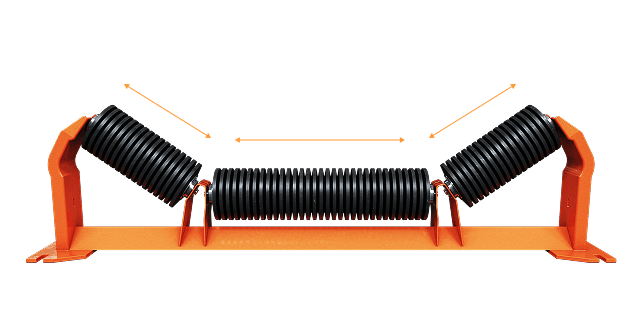

Use one long center roll with shorter wing rolls. This creates a shallow trough that spreads material flat for picking, sorting, and magnetic separation operations. The center roll carries most of the load, which results in a lower carrying capacity than equal troughing idlers of the same CEMA class.

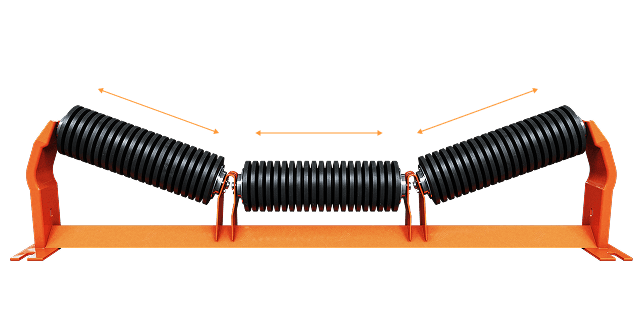

Use three equal-length rolls to form deeper troughs that contain loose material for bulk transport.

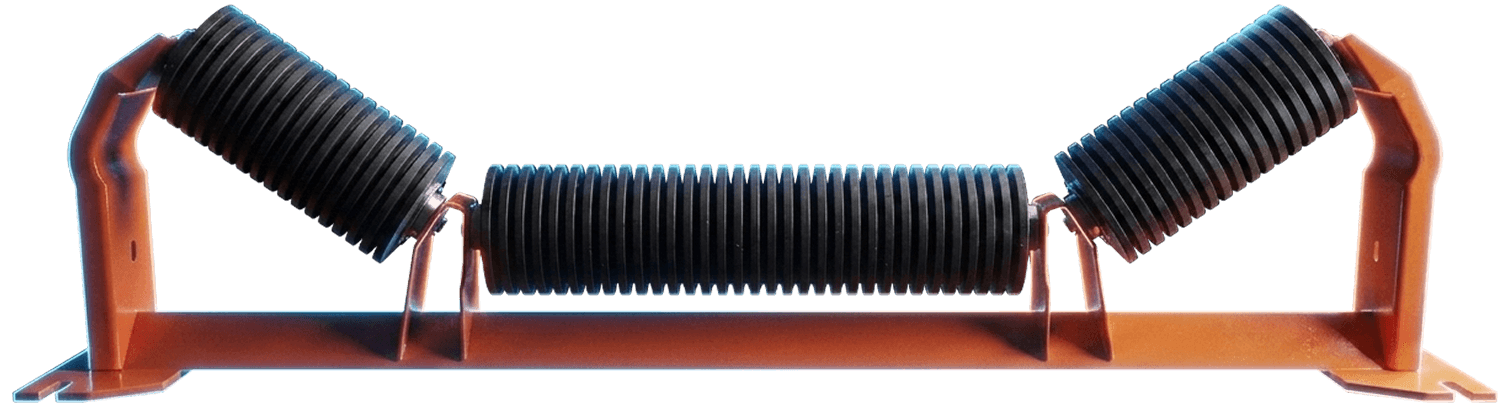

Belt width, material characteristics, manual access frequency, and clearance restrictions determine which trough angle you should choose for unequal troughing idlers.
20° trough angle: Flattest profile for maximum material access during picking operations. Lowest overall height. Best for feeding screens, manual sortation, or magnetic separation where workers need direct belt access.
35° trough angle: Better side containment while maintaining accessibility for picking stations. Use when material flow requires more support or spillage control than 20° provides.
45° trough angle: Steepest profile provides superior edge retention. Less common for unequal troughing configurations since the offset roll design typically serves low-profile applications.

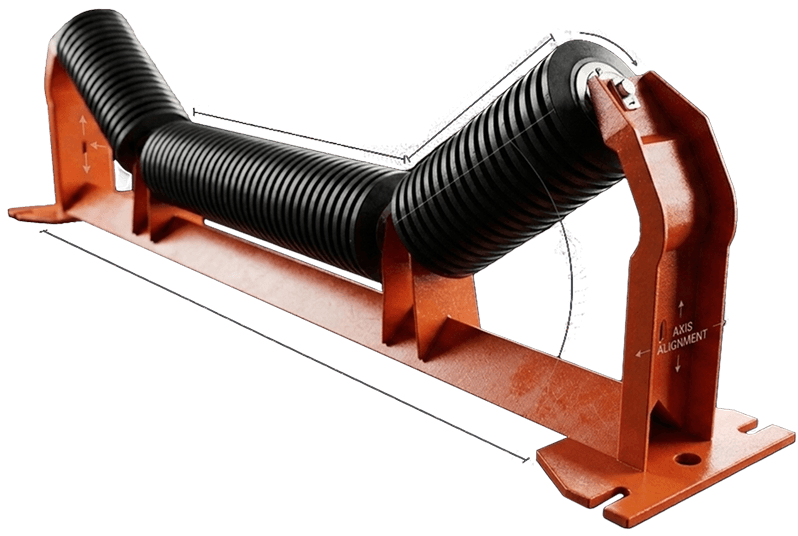

You can provide the brand and part number of the unequal troughing idler you're replacing to get a direct match. If that's not an option, follow these steps to specify the right rubber unequal troughing idler for your conveyor:
When in doubt, contact Fluent with photos of your existing idlers, belt width, and application details. Our engineering team can verify specifications and recommend a rubber unequal troughing idler configuration for your conveyor.
Fluent rubber unequal idlers feature industry-leading seals on all CEMA configurations.
Reinforced barriers for crushing, screening, and dusty aggregate handling
We supply preconfigured idler units or individual replacement rollers as needed.
Fluent manufactures belt conveyor systems that use unequal troughing idlers for reliable operation in picking and sorting applications. We supply all replacement carrying idlers needed to support these conveyor types:
We provide ongoing support for all Fluent conveyors, including technical guidance, replacement idlers, and maintenance recommendations to keep your systems running at full capacity.
Fluent designs and manufactures industrial conveyors. When you purchase rubber idlers from us, you're working with engineers who understand offset material flow, shock absorption, belt tracking, and CEMA specifications because we deal with them every day.
Selection guidance from engineers with hands-on conveyor experience
Disc and solid rubber configurations
CEMA classes B–F, belt widths 18–96 inches
Impact absorption and self-cleaning rubber surfaces for loading zones and sticky materials
Stock configurations ship in 1–3 business days
Whether you need replacement parts for existing equipment or idler specifications for a new custom conveyor, our team provides technical guidance grounded in real-world conveyor applications.
