Rubber equal
troughing idlers

Fluent supplies CEMA-rated rubber equal troughing idlers for loading zones, material transfer points, and abrasive applications.

Rubber equal troughing idler specifications

General specification listed below. We source carrying idlers to additional specifications as needed.

CEMA classes

B, C, D, E, and F

Belt widths

18–96 inches

Troughing angles

20°, 35°, 45°

Roll diameters

4–7 inches

Frame types

Standard inline and offset; wide-base options available

Bearings

Standard ball, spherical, tapered

Seals

Optimized for wet, optimized for dry and dusty, optimized for overland and long distance, optimized for dredging and fines removal

Shaft material

Cold-rolled steel (C1018 or equivalent)

Tube material

Steel tube with vulcanized rubber coating or rubber discs

Idler mounting types

Standard top mount, channel inset (low profile), web mount

Frame finish

Painted, galvanized, or stainless steel

Special features

Rubber cushion impact rolls, rubber disc configurations, self-aligning pivot assemblies

Built to reduce vibration, minimize wear, and
improve conveyor reliability.

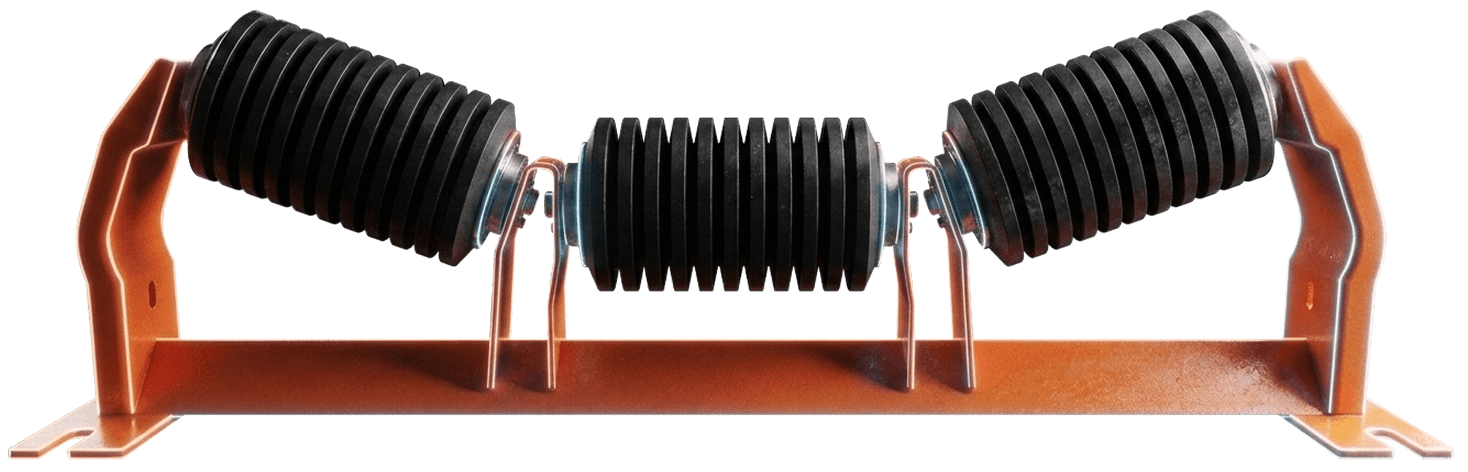

When to choose rubber over steel

Rubber idlers solve application challenges that steel rolls cannot address.

Loading zones and impact points: Rubber-coated rolls absorb shock from falling material at transfer points. Without rubber cushioning in these zones, the conveyor belt wears prematurely.
Abrasive materials: Mining, aggregate, and recycling operations handle materials that accelerate steel roll wear. Rubber coating provides abrasion resistance and protects the idler and belt surface.

Corrosive environments: Rubber rolls resist breakdown in wet or chemically aggressive applications.
Belt tracking: Rubber generates higher friction than steel, improving belt grip. Increased friction coefficients help track the belt, particularly on return runs where rubber rolls shed sticky material that would cause mistracking on steel.
Noise reduction: Rubber dampens vibration and reduces noise compared to steel.

Use steel equal troughing idlers for general application.

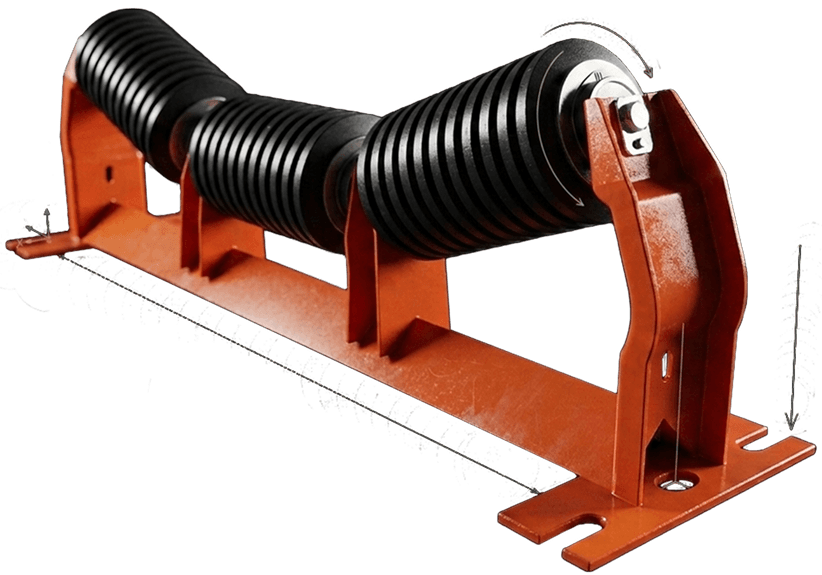

How to select rubber equal troughing idlers

You can provide the brand and part number of the equal troughing idler you're replacing to get a match. If that's not an option, follow these steps to specify the correct rubber idlers for your application:

Measure your belt width:

Belt width determines idler roll length. Standard widths include 18, 24, 30, 36, 42, 48, 60, 72, 84, and 96 inches.

Determine the troughing angle:

Measure the angle between the center roll and wing rolls. Common troughing angles are 20°, 35°, and 45°.

Verify the CEMA class:

Calculate the required CEMA rating (B, C, D, E, or F) based on belt width, material density, belt speed, and conveyor length.

Measure roll diameter:

Standard roll diameters range from 4 to 7 inches, depending on CEMA class. Higher belt speeds and heavier loads require larger diameter rolls.

Identify impact zones:

Mark areas where material drops onto the belt. These locations require closer idler spacing (typically 1–2 feet) than standard runs (3–5 feet). Impact idlers with rubber cushioning belong in these zones.

Check frame mounting style:

Note whether your existing carrying idlers use standard top mount (conventional bracket mounting) or channel inset mounting (low-profile installation for clearance-restricted applications).

Confirm bearing and seal specifications:

Match bearing type and seal configuration to your operating environment. Fluent idlers feature industry-leading bearing seals on all CEMA configurations.

Consider rubber configuration:

Choose between continuous rubber coating (full coverage), rubber discs (multiple rings), or rubber cushion rolls (impact-specific). Disc configurations shed material better in sticky applications.

When in doubt, contact Fluent with photos of your existing idlers, belt width, and application details. Our engineering team can verify specifications and recommend a rubber equal troughing idler configuration for your conveyor system.

How to select rubber equal troughing idlers

Idler seals for rubber equal troughing idlers

Fluent idlers feature rollers equipped with industry-leading seals on all CEMA configurations.

Eco idler seals

Combined protection for extreme conditions with washed sand and fines

View Product

We supply preconfigured idler units or individual replacement rollers as needed.
