Replacement hinged steel belts for Fluent roller chain conveyors and OEM equipment. Our most flexible metal belt for recycling, scrap metal, and mixed solid waste applications.
Please note that not all belts can be configured with each option.
Standard: 48, 60, 72, 84, 96, 108 inches; custom widths from 36 to 120 inches with all increments within that range; the 2.5-inch pitch configuration accepts narrower widths (6, 12, 18, 24, 30, 36 inches) in 3-inch increments
2.5, 4, 6, and 9-inch options
1/8, 3/16, 1/4 inch
1/4, 3/8, 1/2 inch; 1" × 5/32" thick on the smaller pitches
2" × 1/4" thick C1045 precision die-punched sidebar standard; 2" × 3/8" and 2-1/2" × 1/2" available
6,000 / 9,000 / 13,000 / 14,000 / 25,000 lb

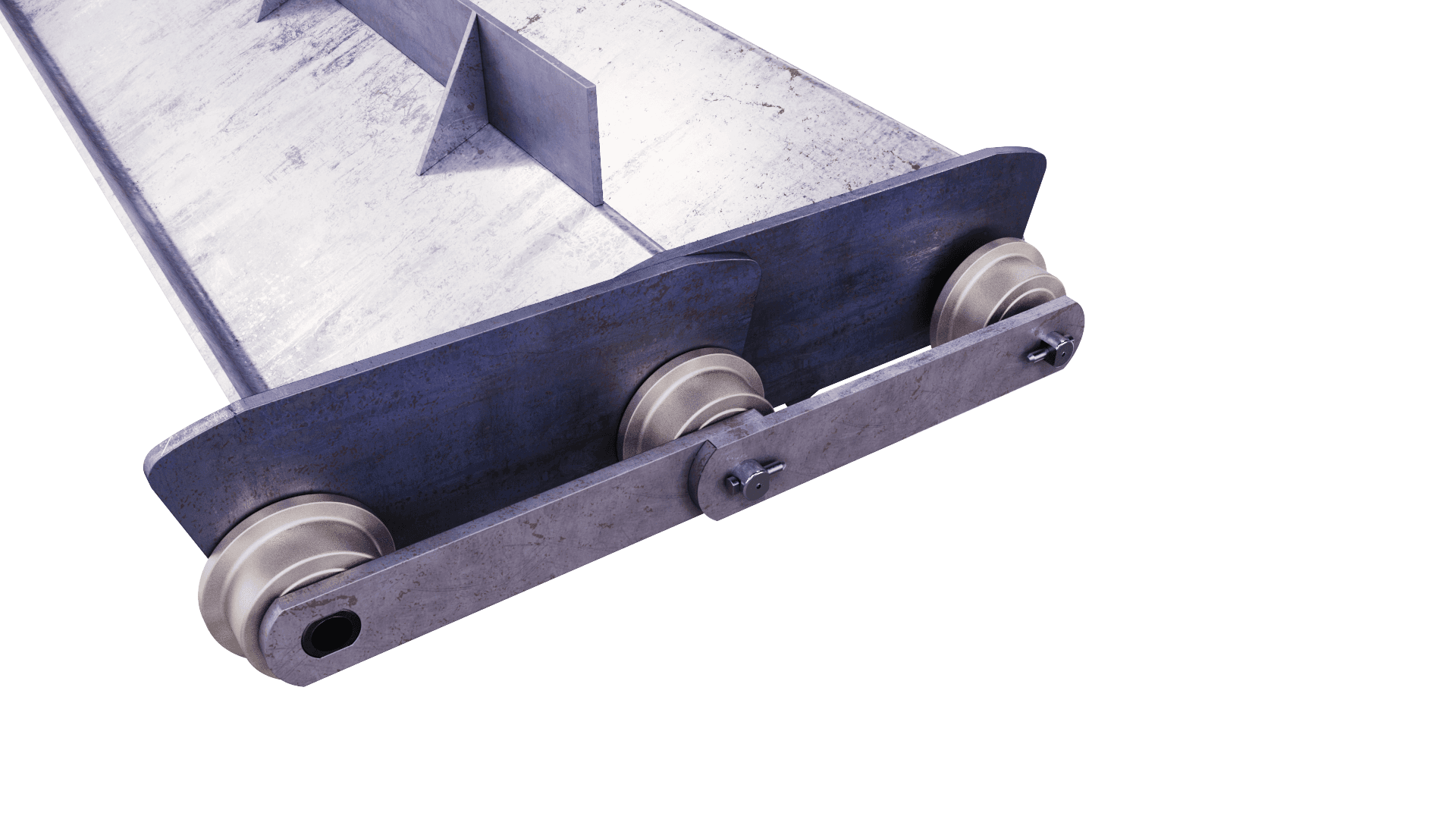

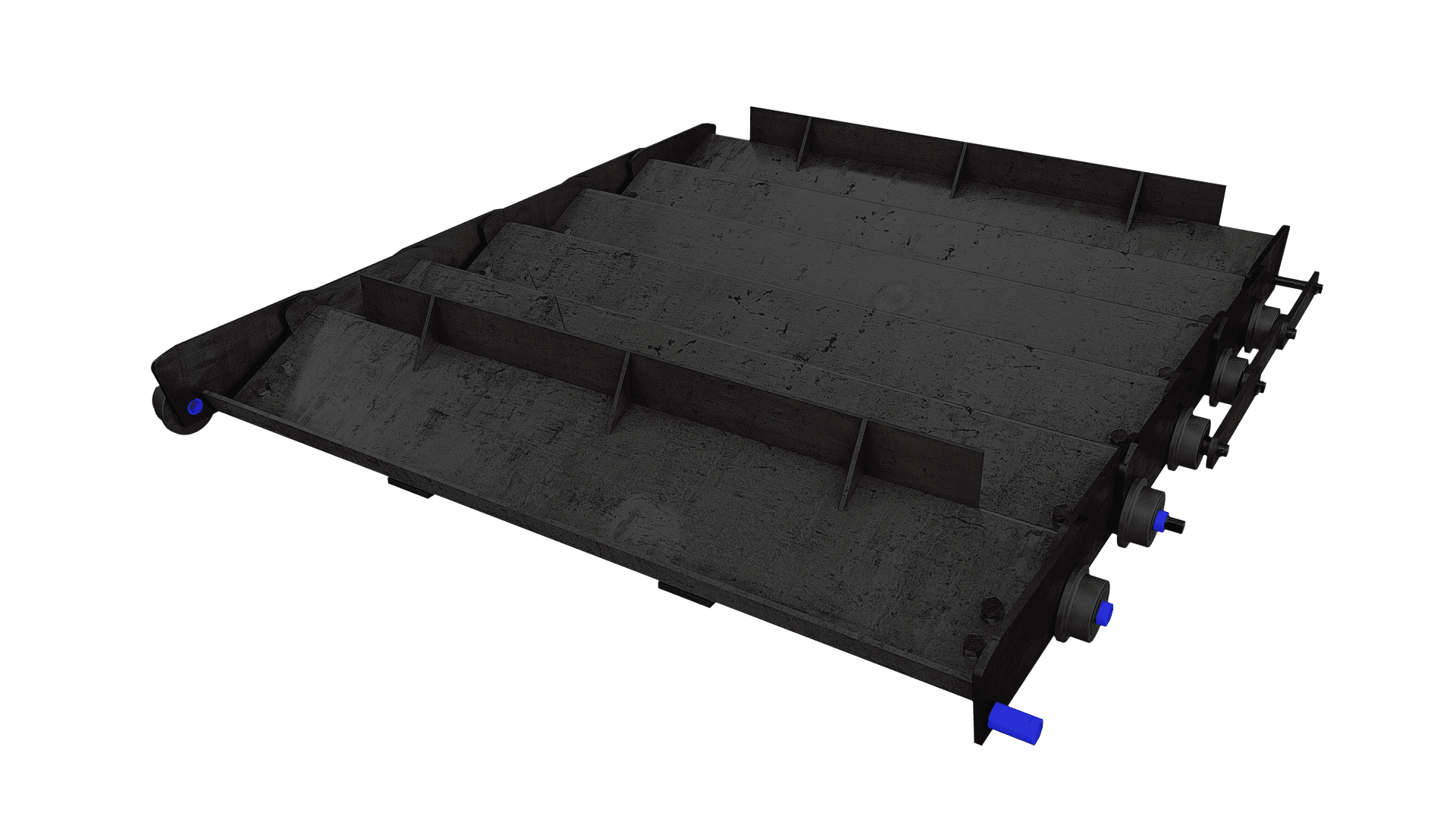

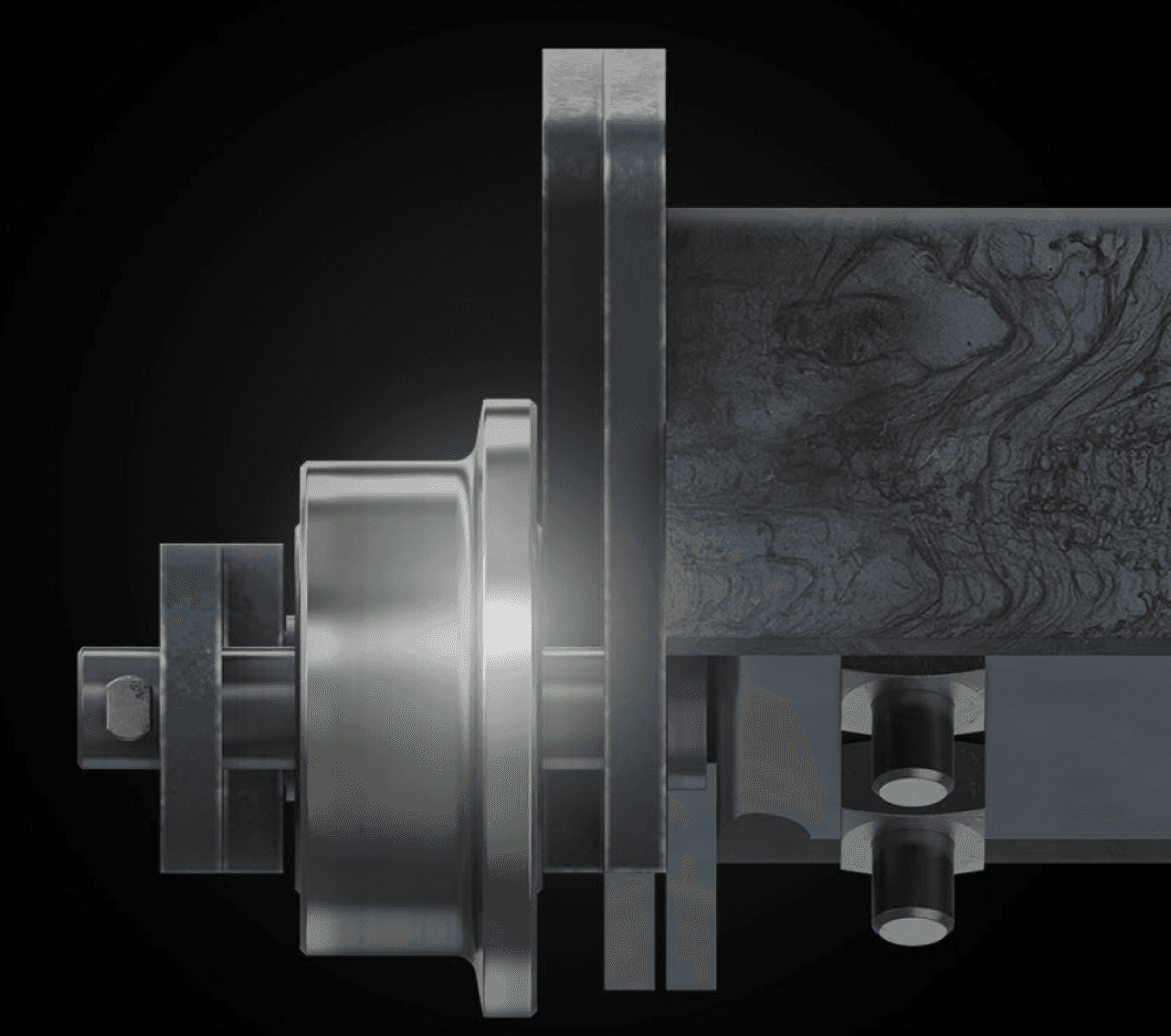

0.39–1.0" ID × 0.55–1.38" OD; long 1018 solid, carburized, hardened to RC55–60, press-fit into inner side bars

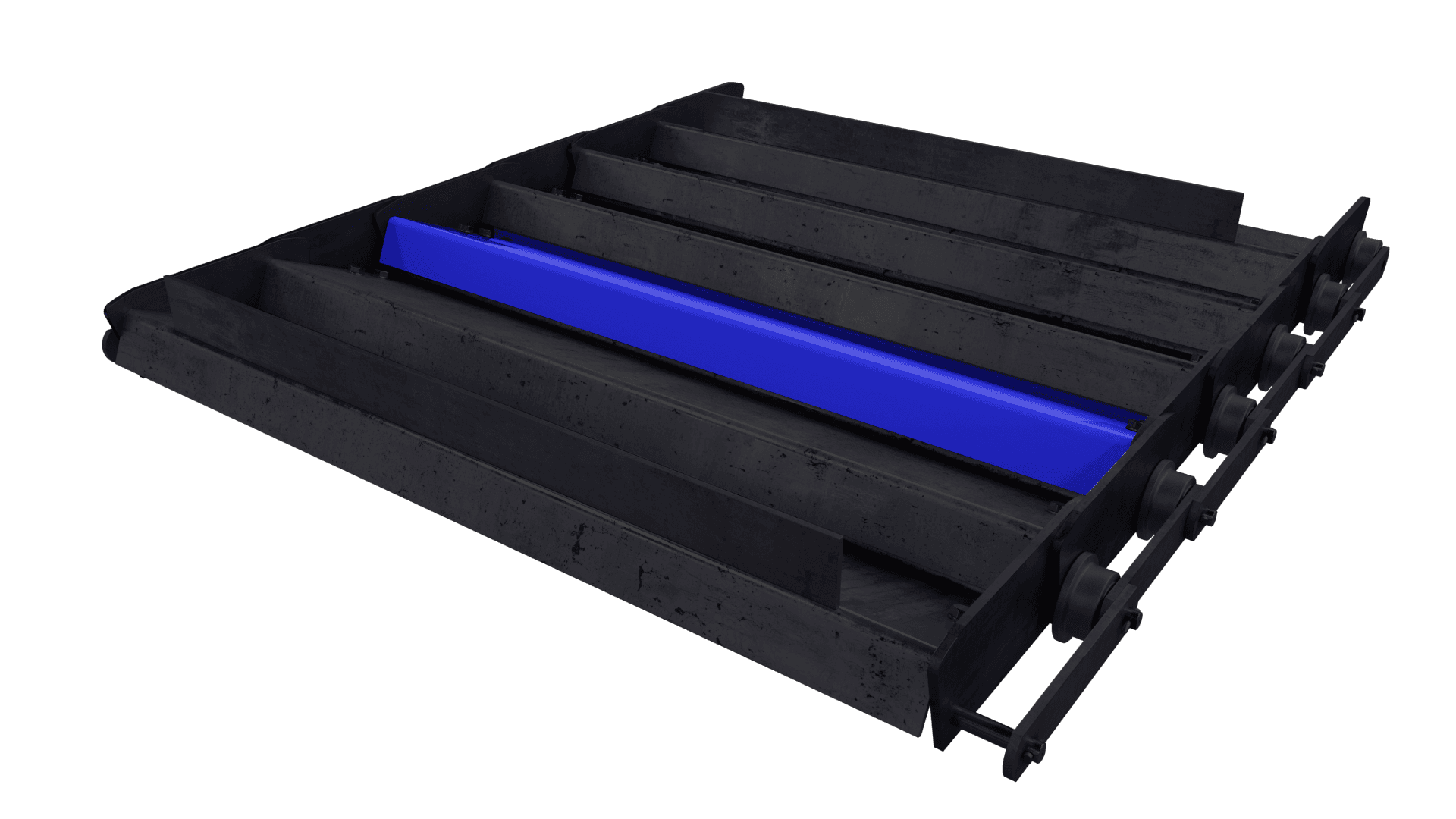

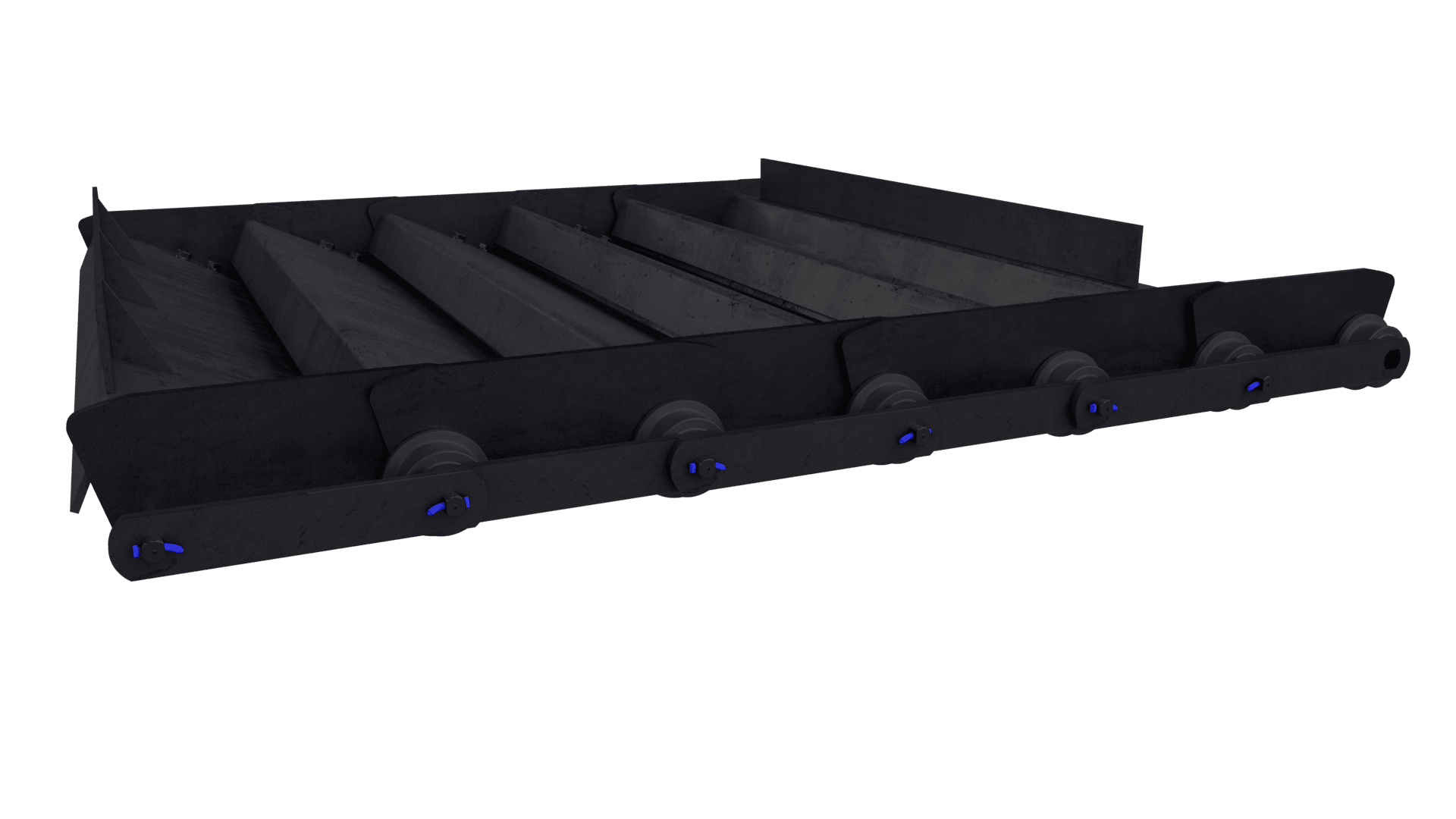

3/8, 3/4, 1 inch; C1045 CRS through pins, end milled flat to lock into outer side bar
1-9/16, 1-3/4, 2-1/16, 3, 4, 5 inches

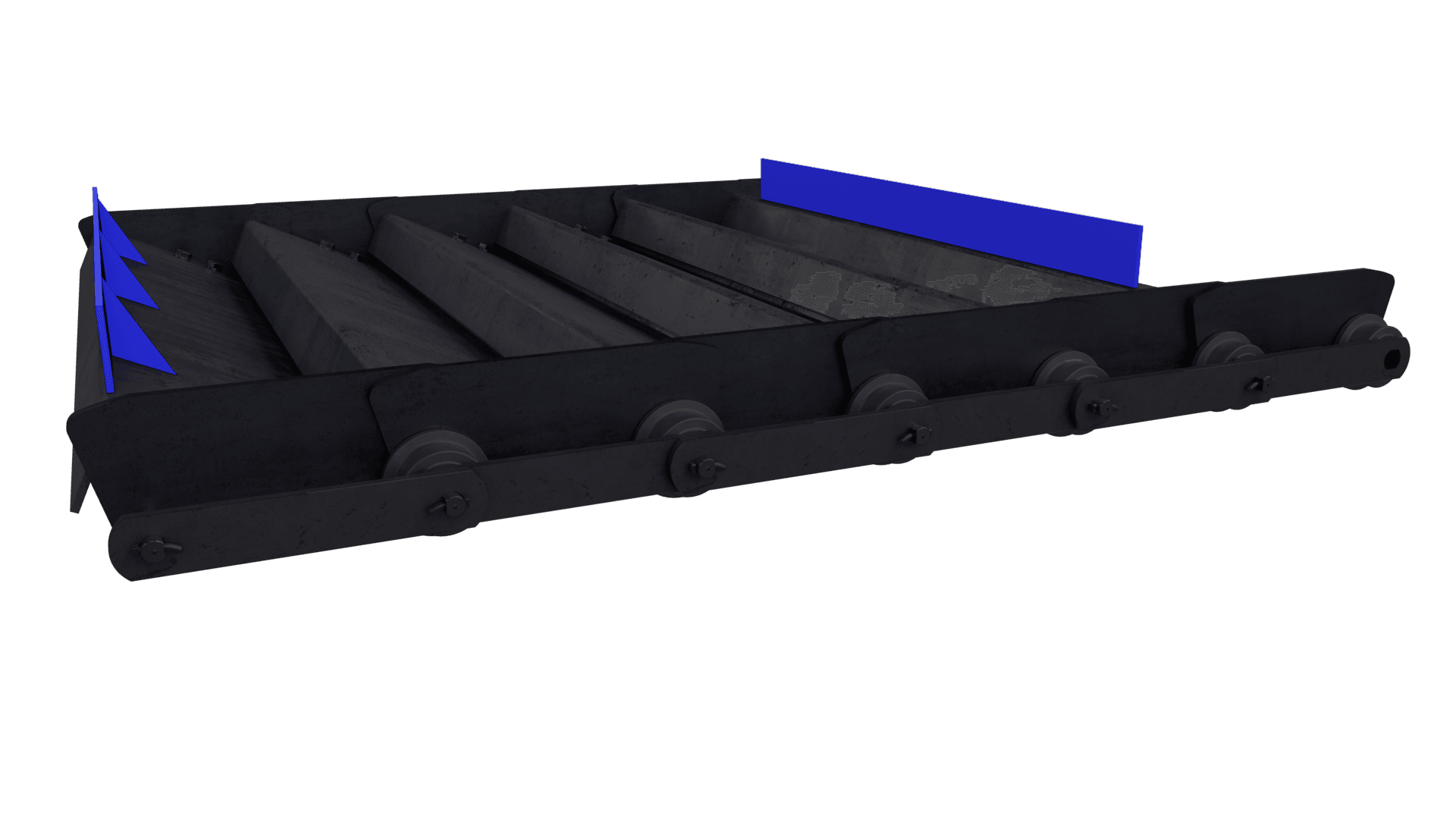

2, 3, 4 inches. 1/4–3/8 inch thick angle; flat bar cleats also available
1/4, 3/8, 1/2, 5/8, 3/4, 1 inch formed impact shoes every other pitch

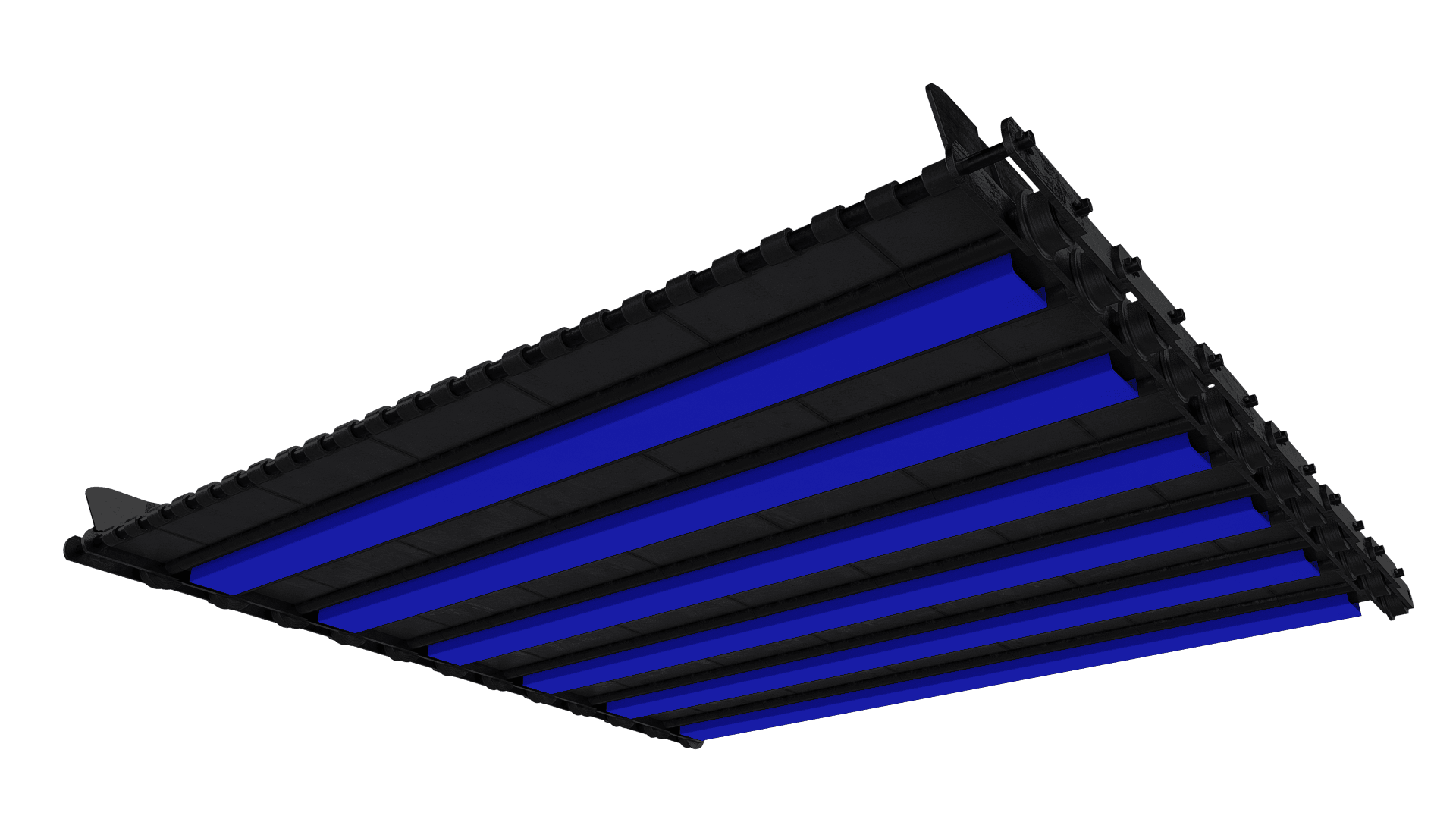

C3"×5# up to C6"×8.2# heavy-duty channel every other pitch
C1045 precision chain
C-channel, no wings, top impact pads, inverted angle, bar cleats
reliable material handling.

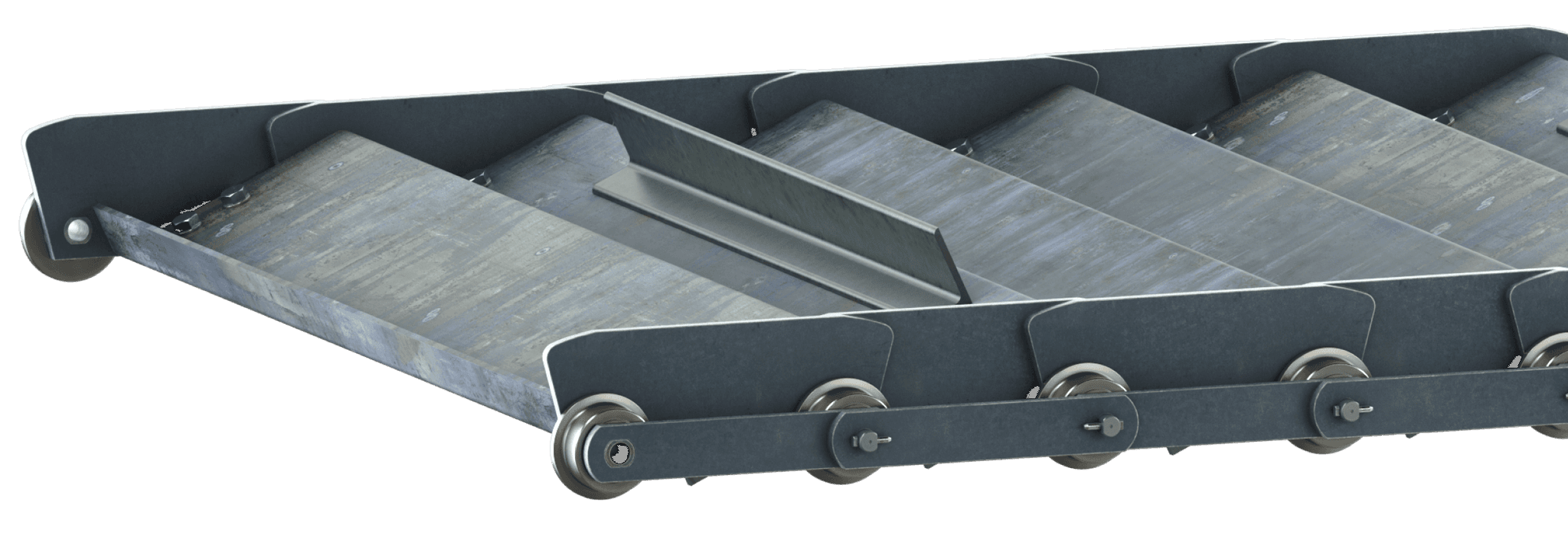

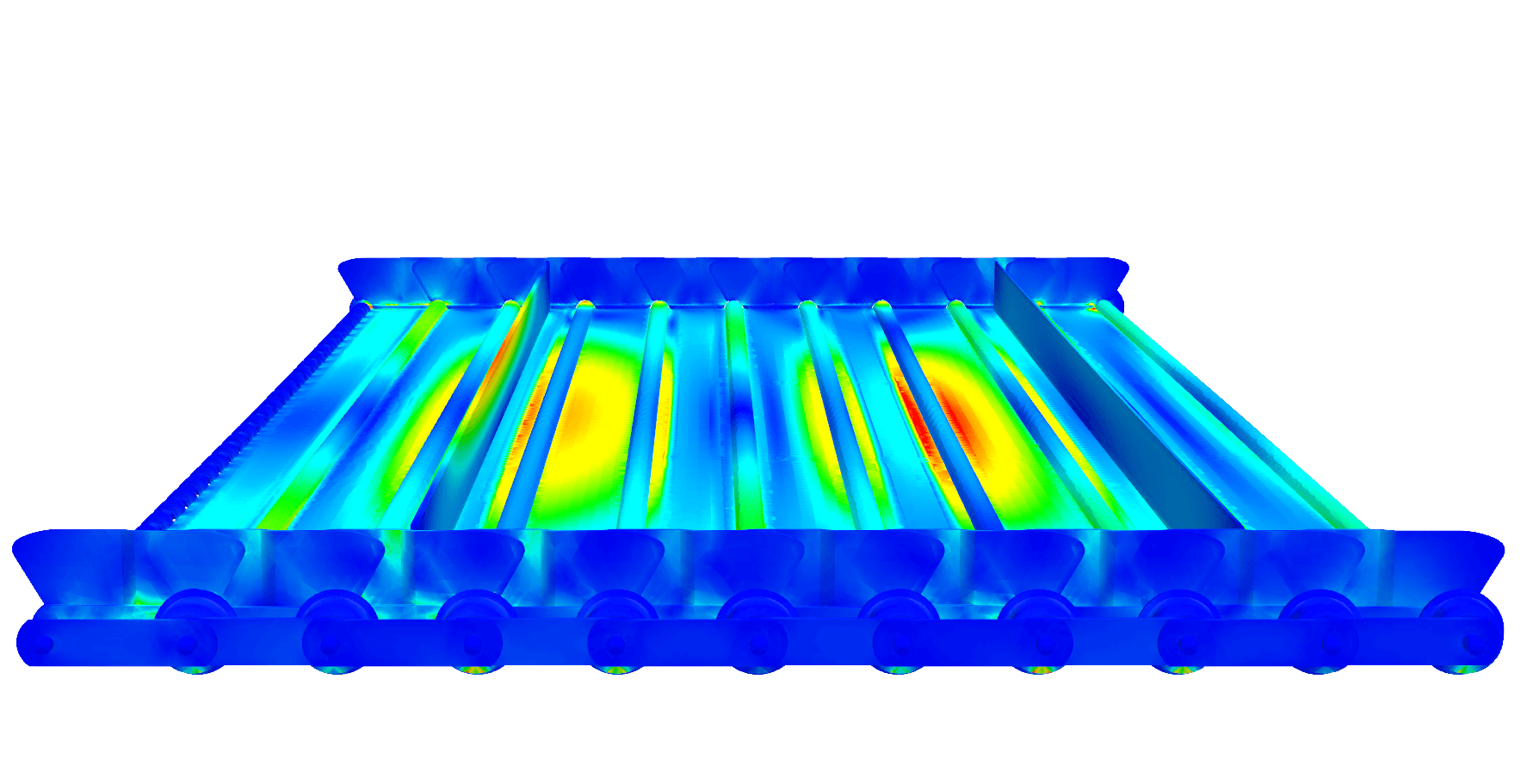

Hinged steel belts are the most flexible chain belt we make. The piano-hinged pan design forms a continuous conveying surface that articulates through incline, decline, and nose-over configurations while carrying heavy loads, bulky material, and smaller loose items on the same belt. It's the most common metal conveyor belt type and the general-purpose workhorse of roller chain systems.

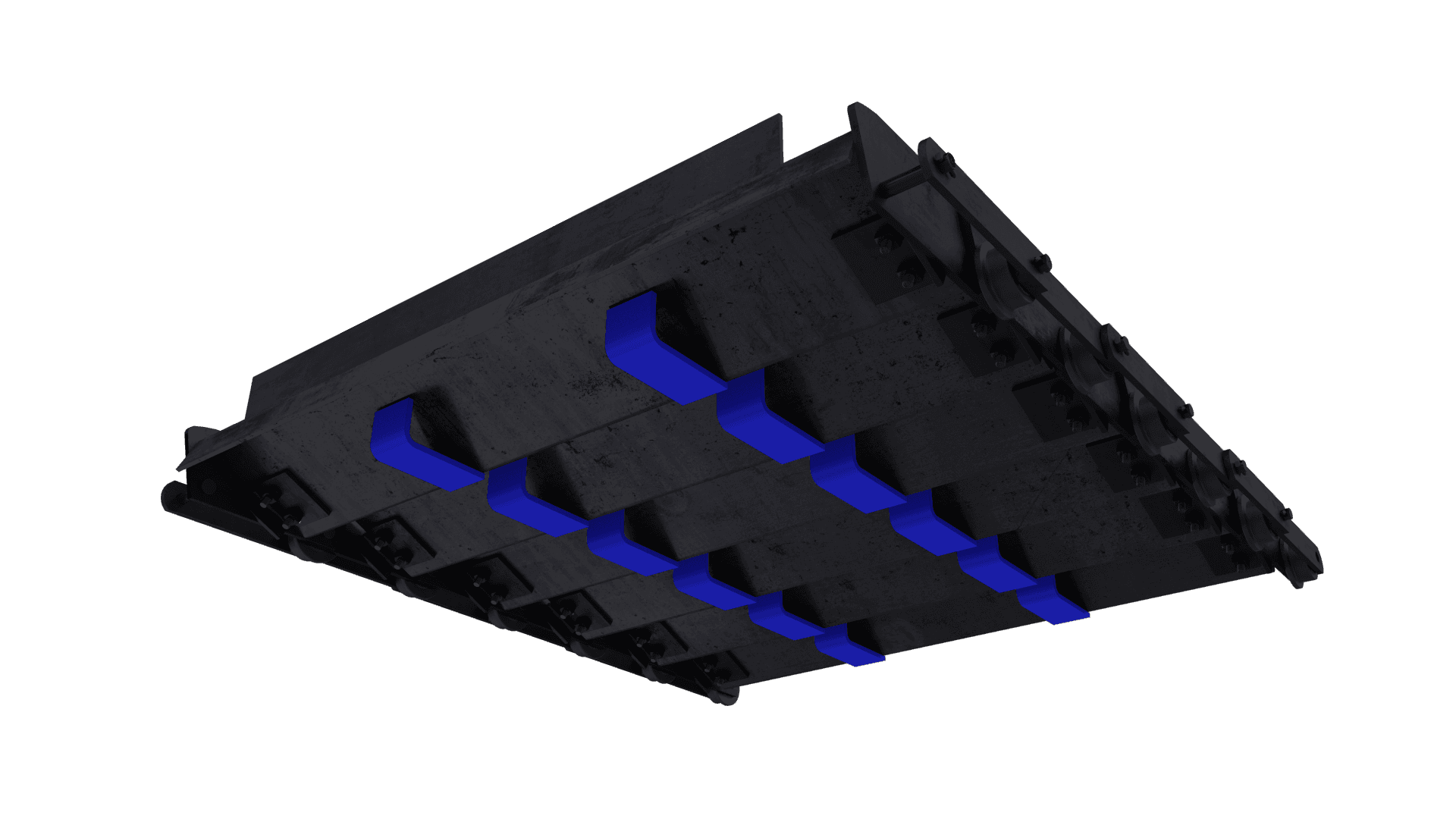

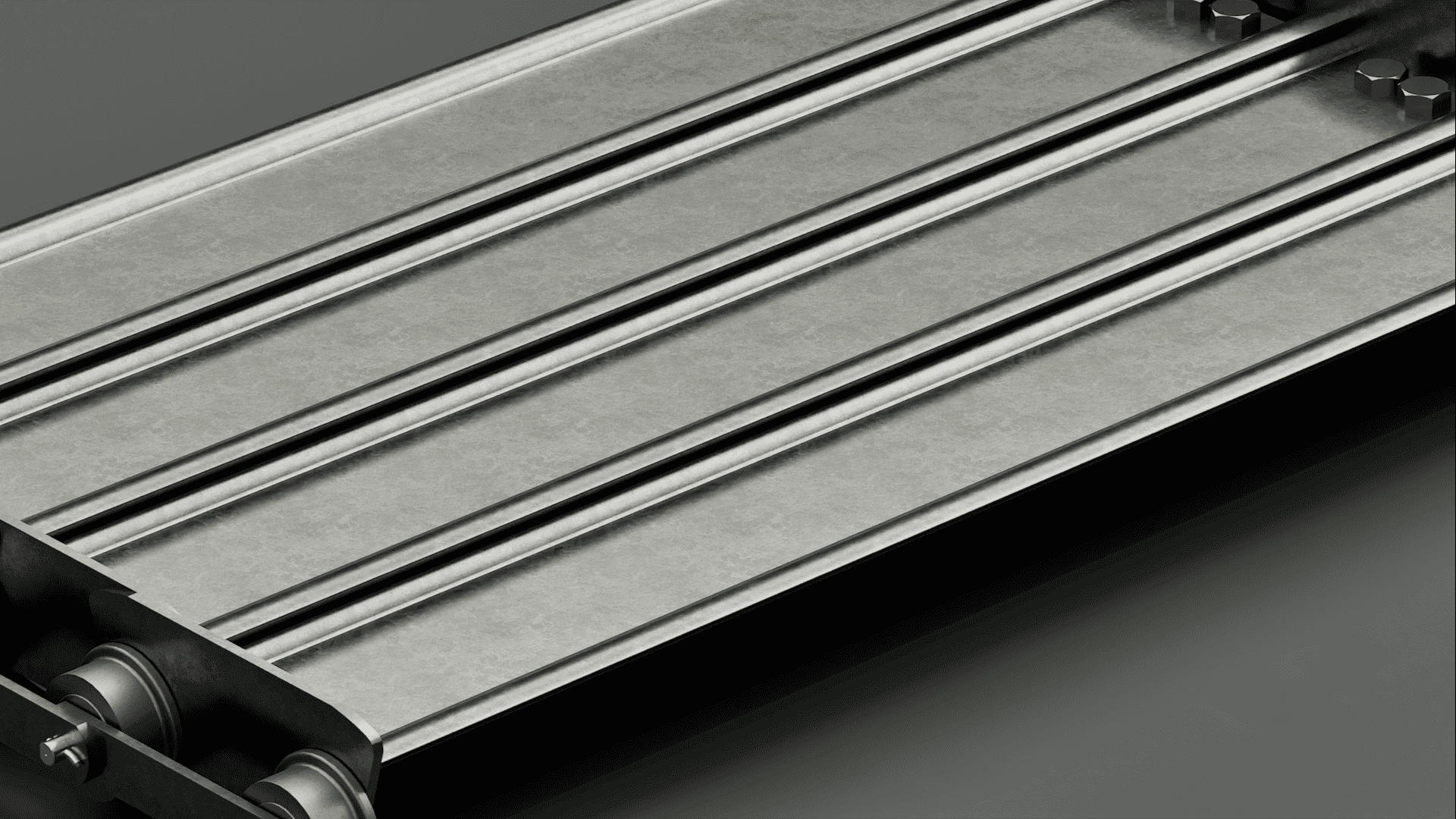

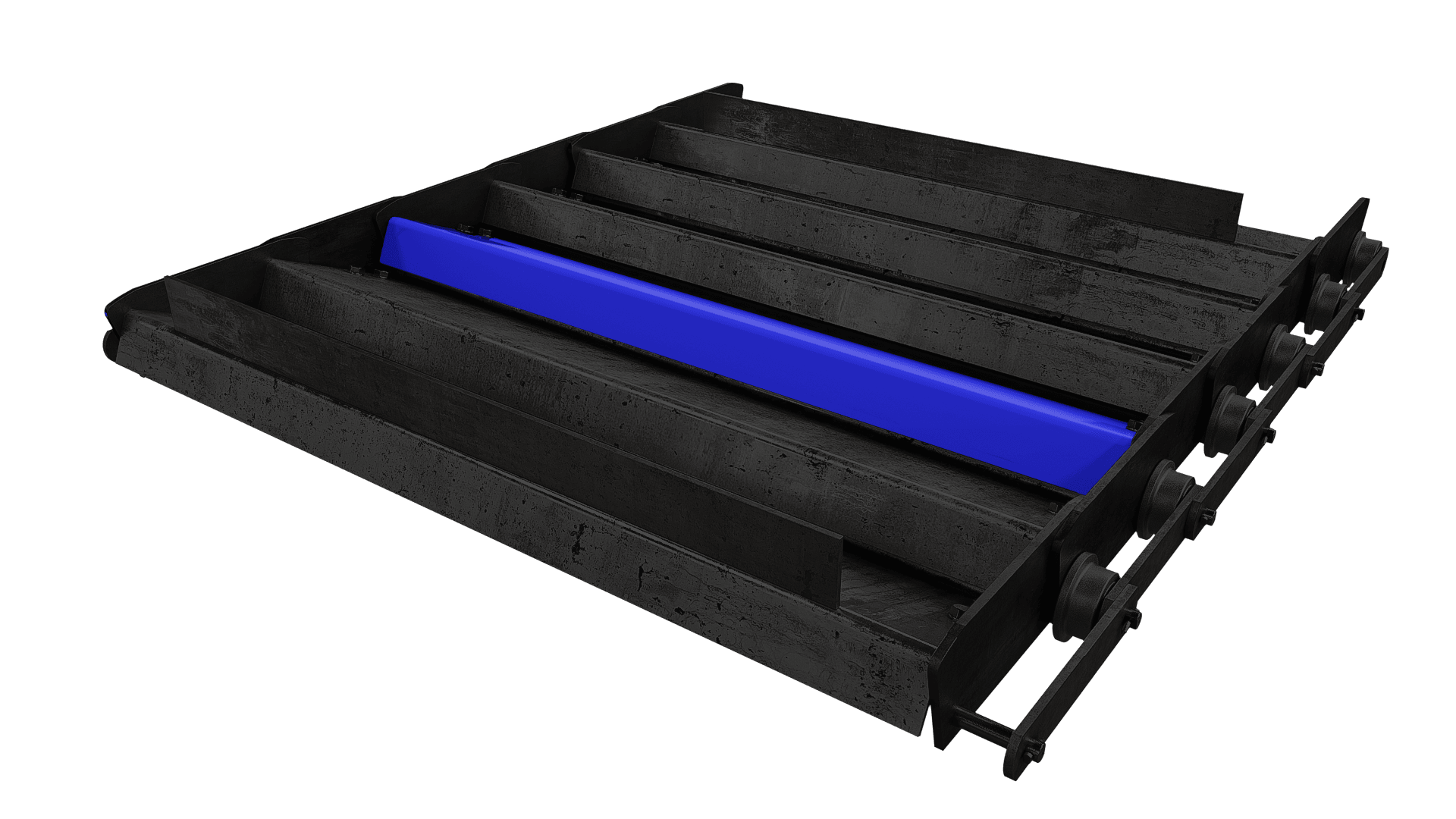

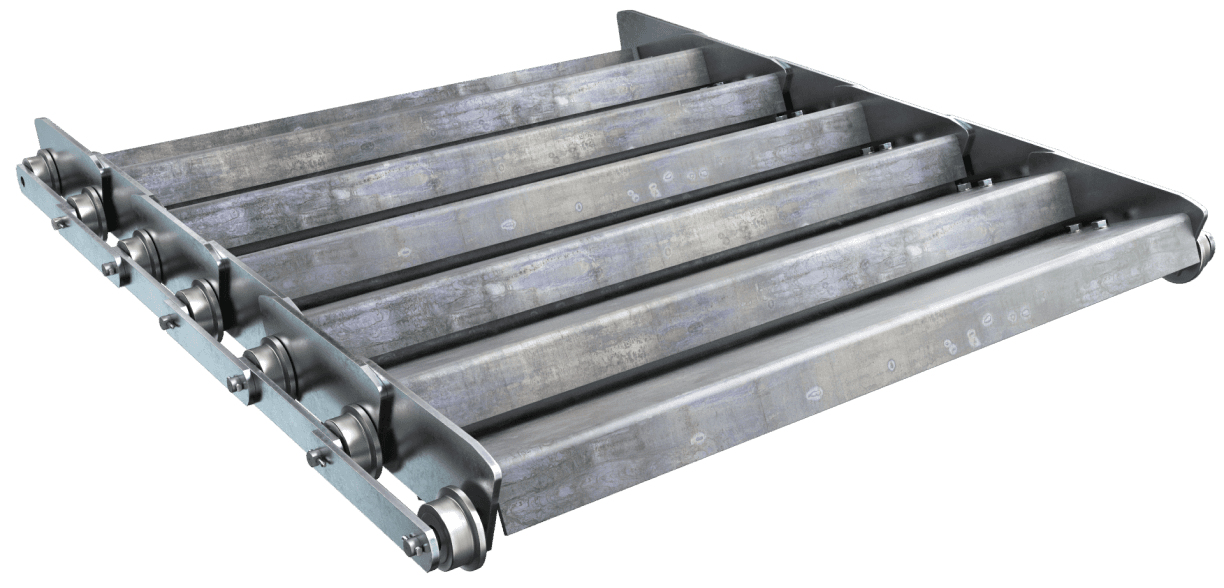

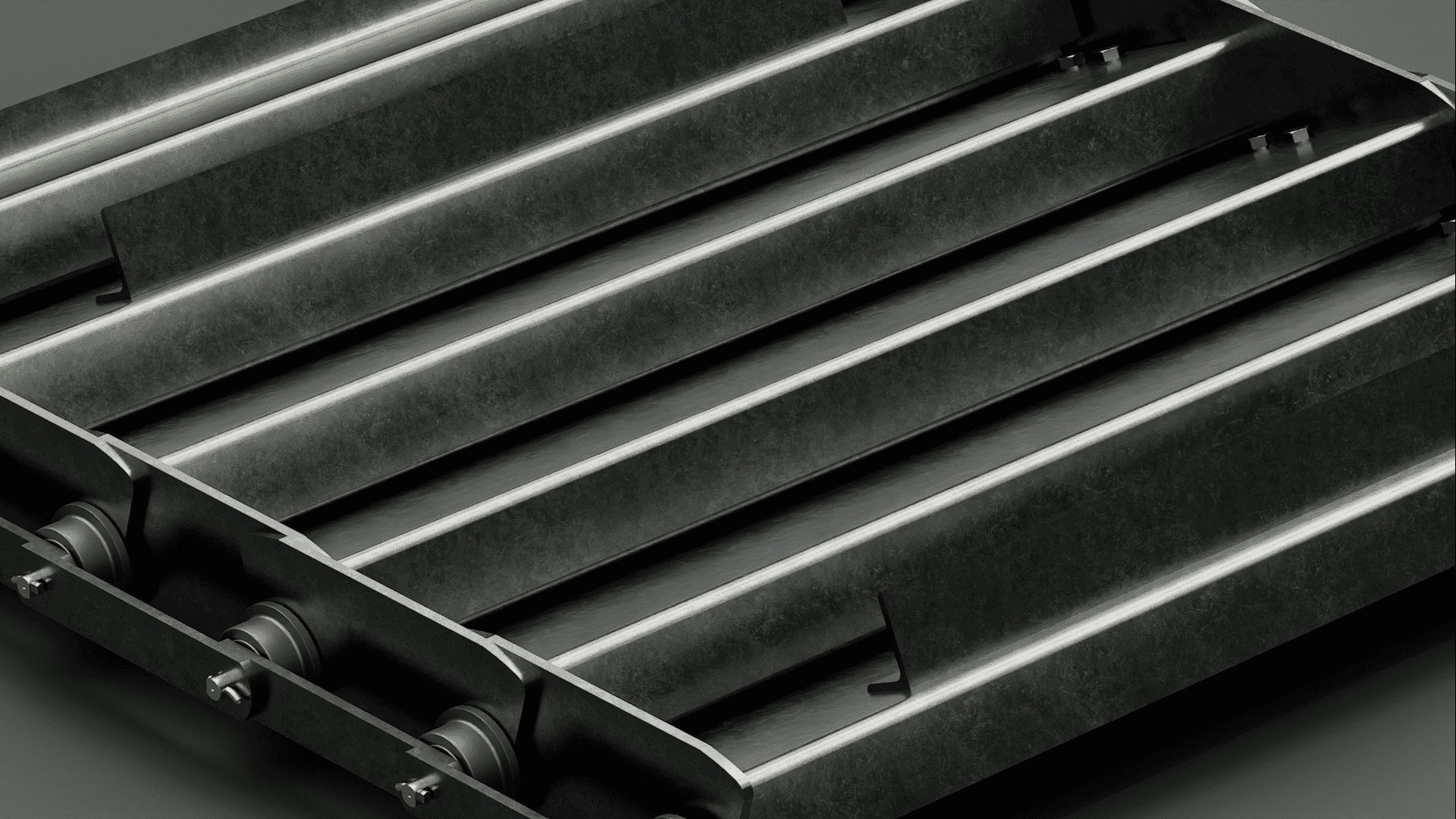

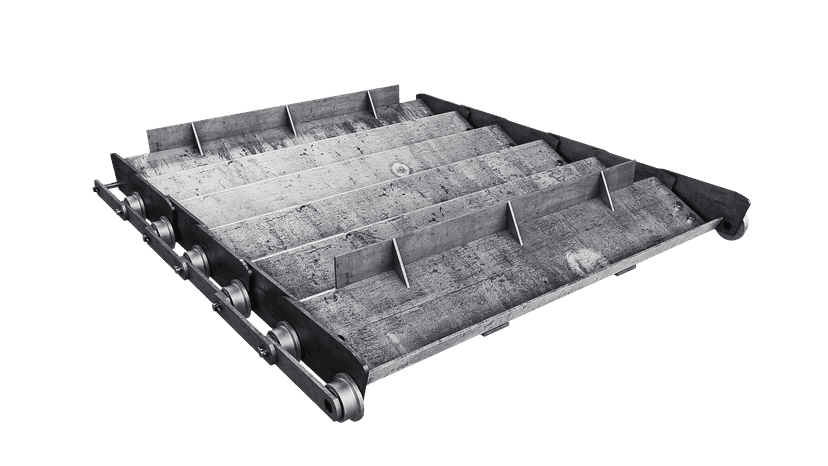

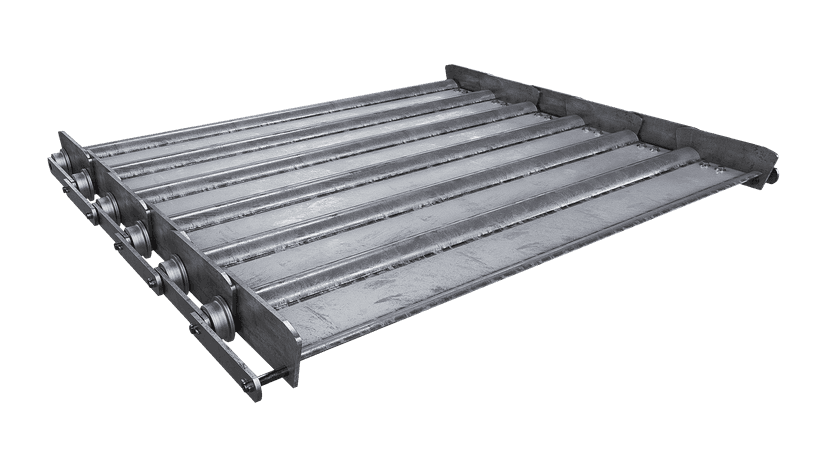

Hinged steel sits between apron pan and Z-pan in the metal belt lineup. Apron pan belts outperform hinged steel on high-impact infeed applications. Z-pan belts outperform it on steep inclines with loose material thanks to their troughed geometry. For most flat and inclined heavy-duty conveying, hinged steel is the right call.
Hinged steel handles ferrous and non-ferrous metal recycling, sheared scrap, mixed solid waste, and refuse (nearly all heavy-duty applications with less than 10% glass shards). Higher glass content works the hinge joints and fouls the pan intersections; for glass-heavy streams, consider Z-pan or a different belt family entirely.
Hinged steel is compatible with our Medium-Duty roller chain conveyors and Heavy-Duty roller chain conveyors. It is not compatible with Extreme Heavy-Duty (X-HD) roller chain conveyors.
Fasteners and manufacturing components
Aggregates (larger bulk materials)
Metal castings and chips
Aggregates and mining
Foundries and metal processing facilities
Recycling and waste management
Our hinged steel belts include the following parts:
Collect the dimensions of your hinged steel belt conveyor. If you're not sure, contact our engineering team and we can walk you through it. The full dimensioned reference, including component overview diagrams, is available on the hinged steel belt dimensions guide.
Contact us if you need help selecting the right belt or size.
Pan thickness
Belt width (inside sealing wings)
Belt width (overall width)
Roller spacing
Roller spacing
Roller diameter
Flange roller diameter (if applicable)
Roller width
Overall roller width (includes flanged roller)
Chain pitch
Side bar width
Side bar thickness

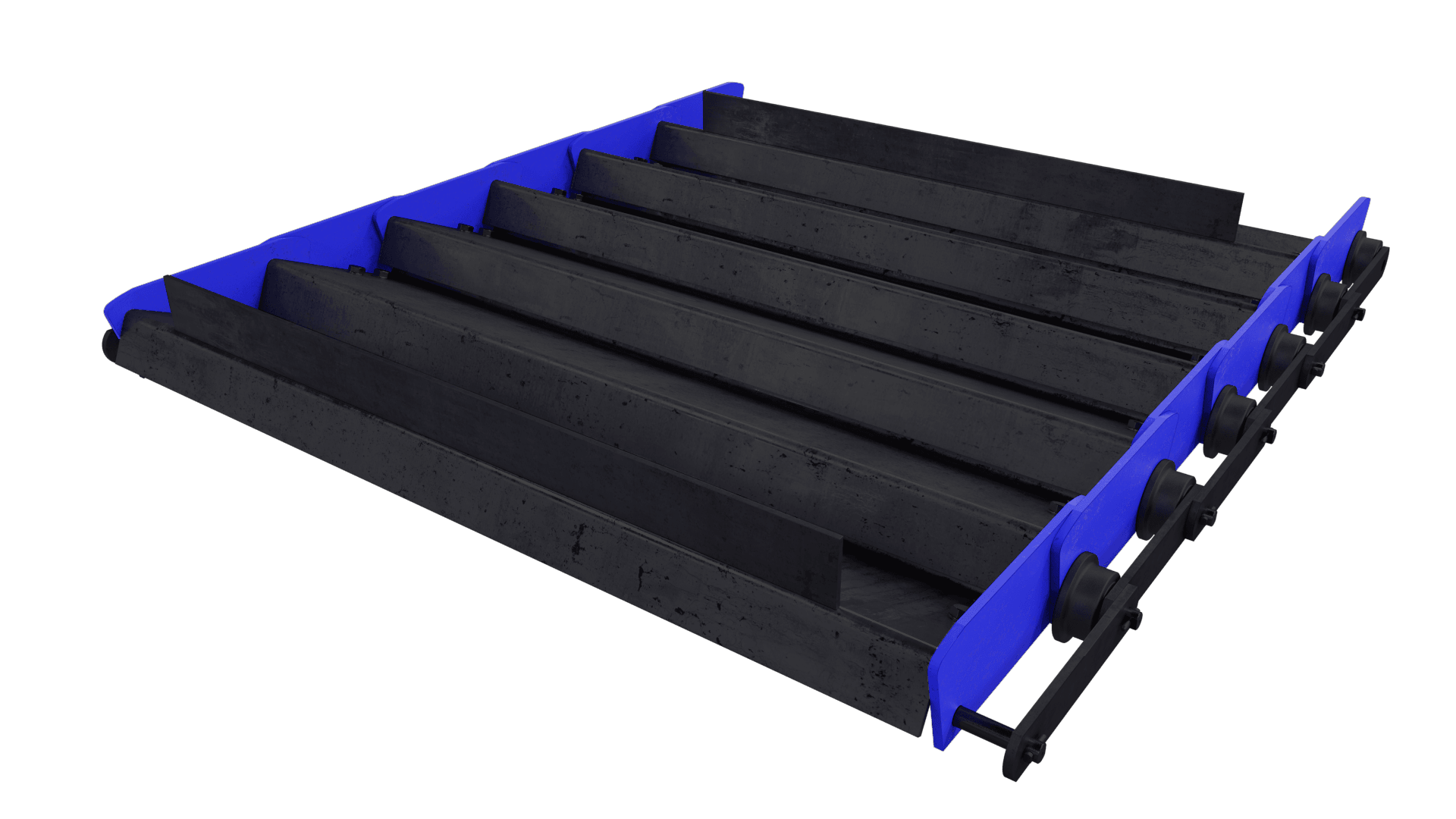

Single or double row
Sealing wing height
Sealing wing thickness
Cleat height (angle iron shown)
Cleat thickness
Total length
Offset from sealing wing
Support type / size
Support spacing
Support length
Wear pad thickness
Wear pad quantity
Wear pad spacing
Wear pad location
Wear pad size

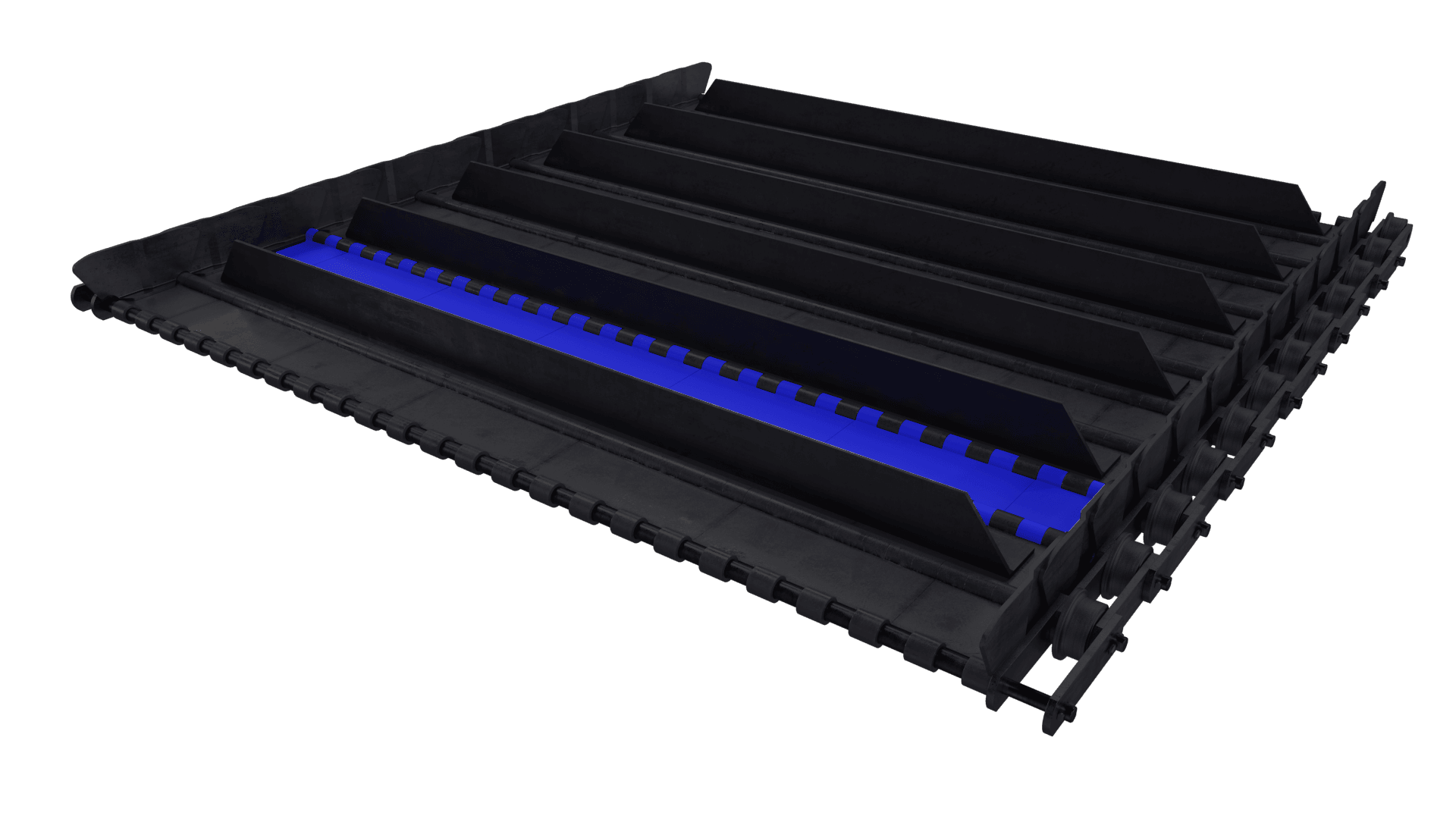

Hinged steel belts are modular assemblies. Individual components wear at different rates and can be replaced independently, often extending the service life of the full belt before a complete replacement is warranted. We supply replacement parts for hinged steel belts, including:
We manufacture custom conveyors for the most demanding material handling environments on the planet. When you source through us, you're working with engineers who have over 100 years of combined experience troubleshooting roller chain conveyors and choosing belts for real-world performance.
