Replacement apron pan belts for Fluent roller chain conveyors and OEM equipment. Heavy-duty, impact-resistant belting in 6, 9, and 12-inch pitches for recycling, mining, foundry, and manufacturing.
Please note that not all belts can be configured with each option.
48, 60, 72, 84, 96, 108 inches. Custom widths from 36–120 inches with all increments within that range.
6, 9, and 12-inch options.
1/4, 3/8, 1/2 inch
3, 4, 5, 6 inches
1/4, 3/8, 1/2 inch

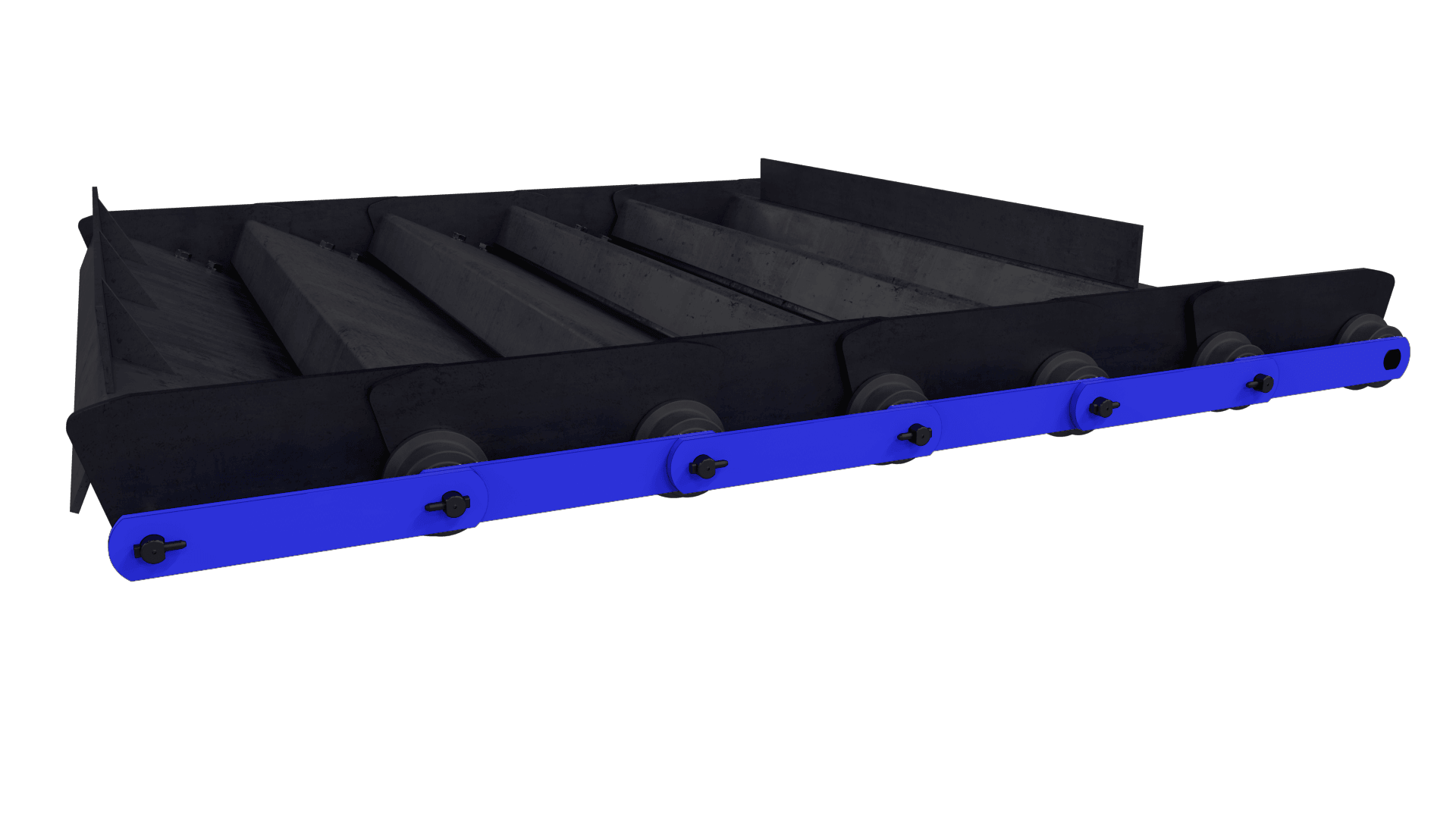

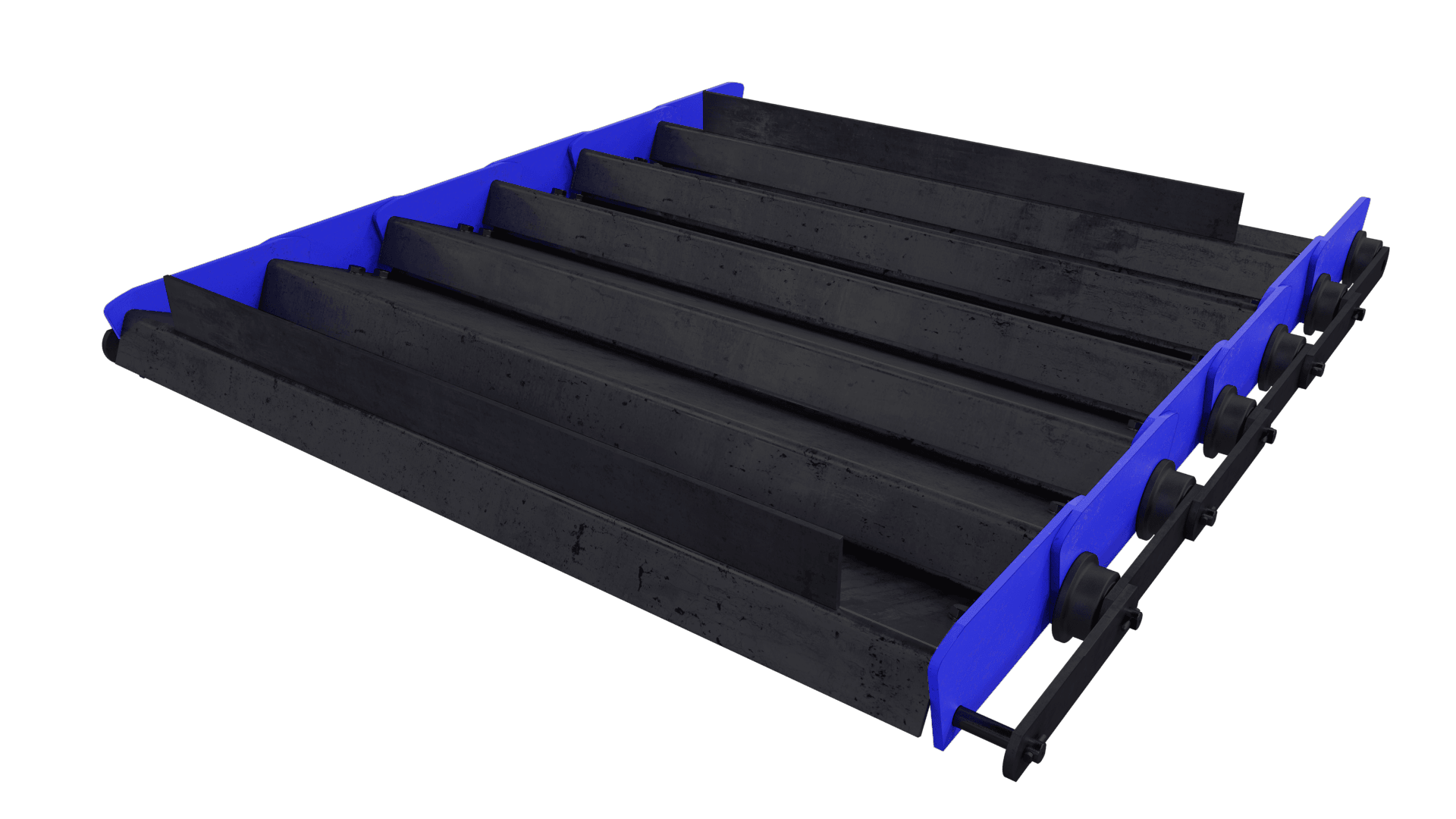

2" × 1/4" thick standard, 2" × 3/8" and 2-1/2" × 1/2" available. C1045 precision die-punched sidebar
6,000 / 9,000 / 13,000 / 14,000 / 25,000 lbs

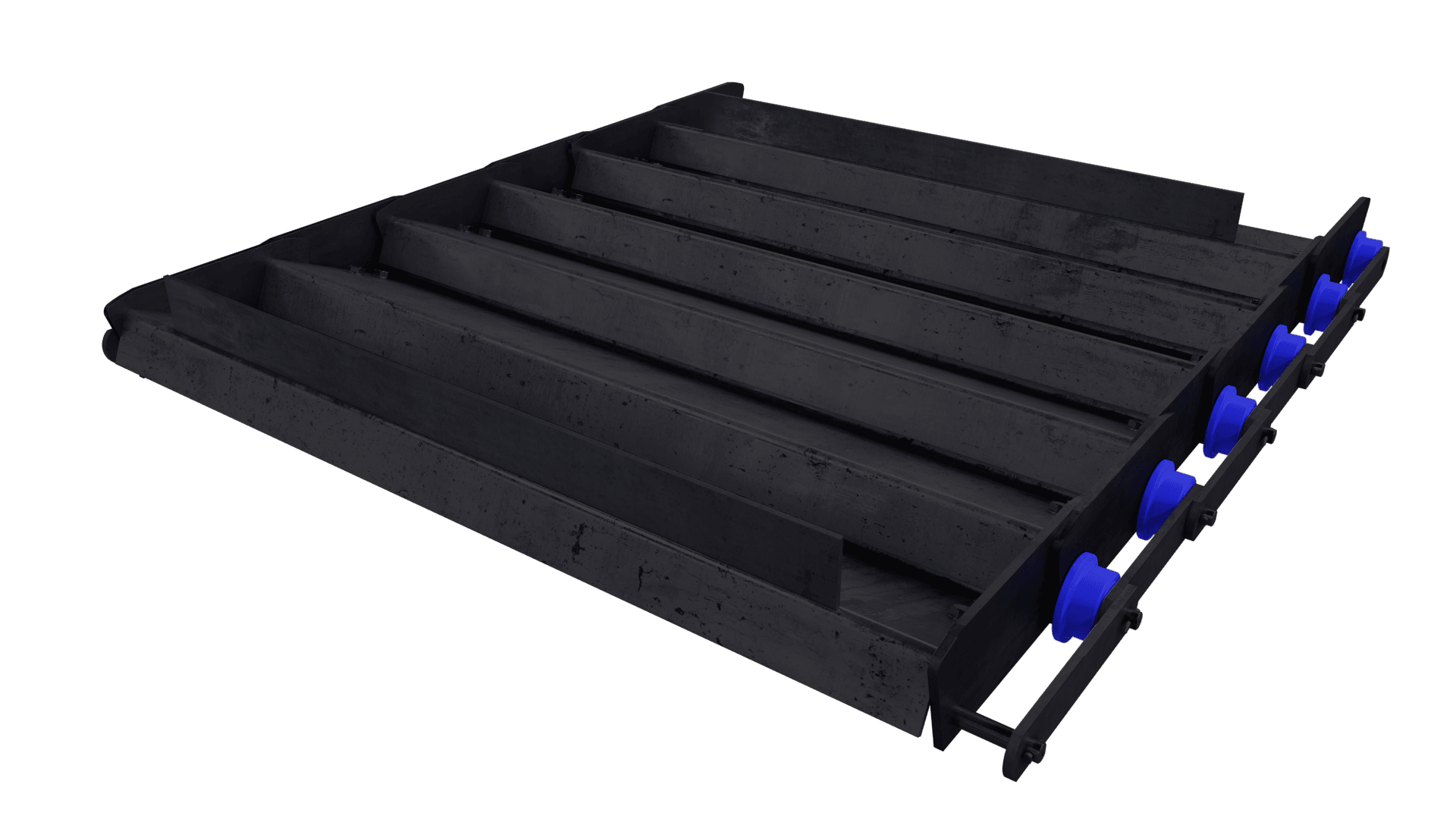

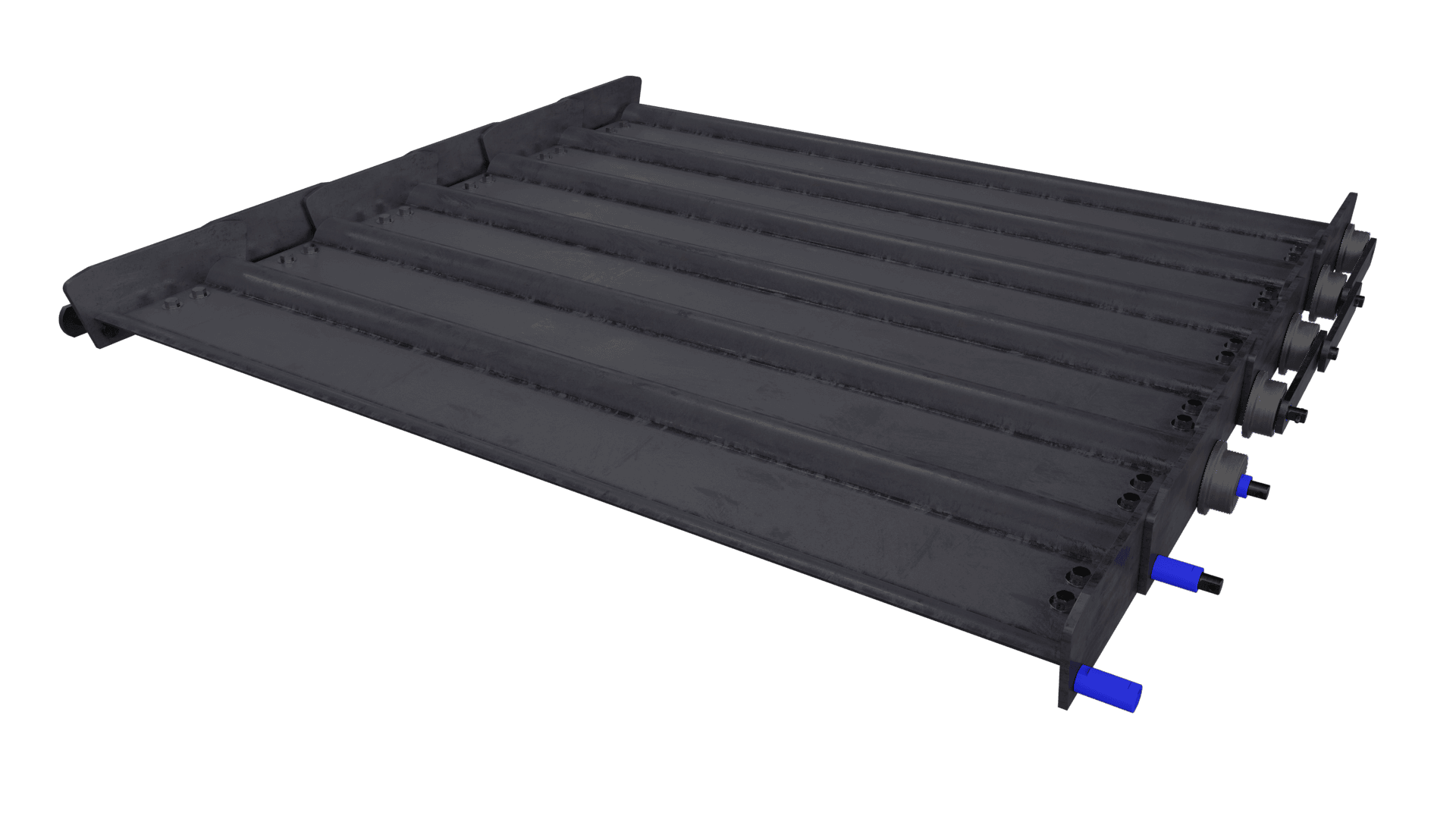

0.76–1.0" ID × 1.12–1.38" OD. Carburized, hardened to RC55–60, press-fit into inner side bars

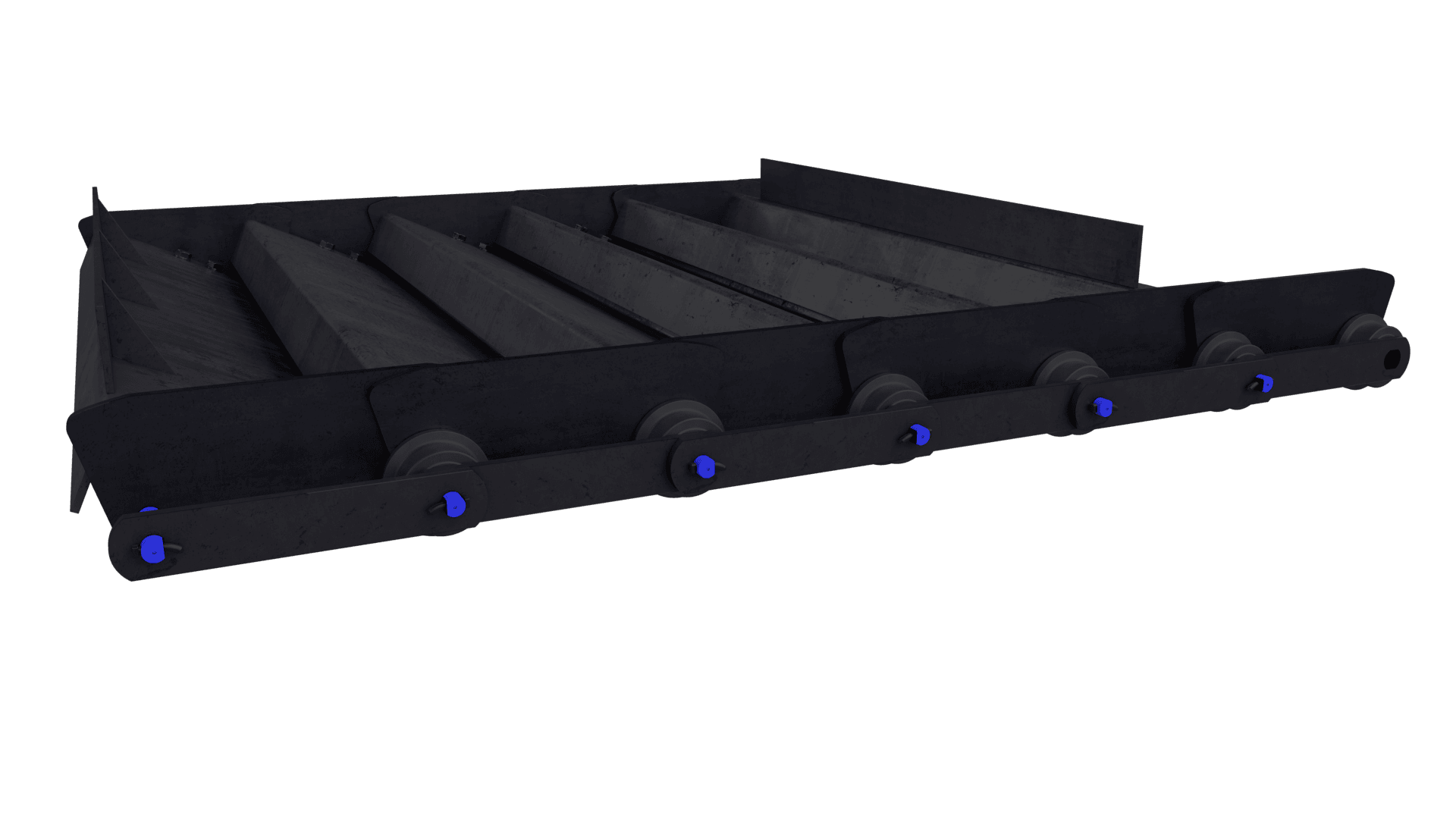

3/4, 1 inch. 4142 precision-headed, heat-treated alloy
2-1/16, 3, 3-1/2, 4, 5 inches
2, 3, 4 inches. 1/4–3/8 inch thick angle. Flat bar cleats also available

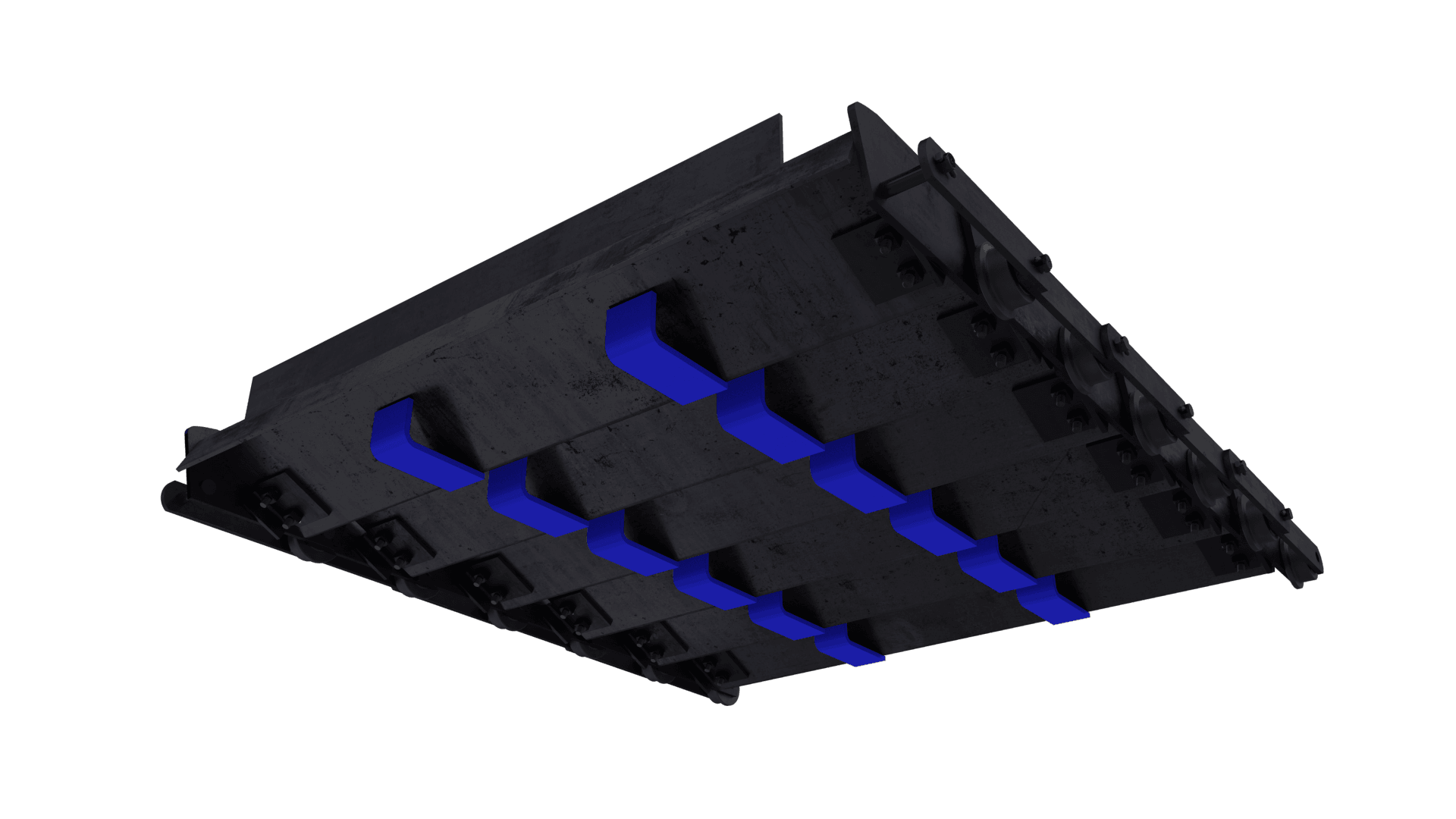

1/4, 3/8, 1/2, 1 inch formed impact shoes every other pitch

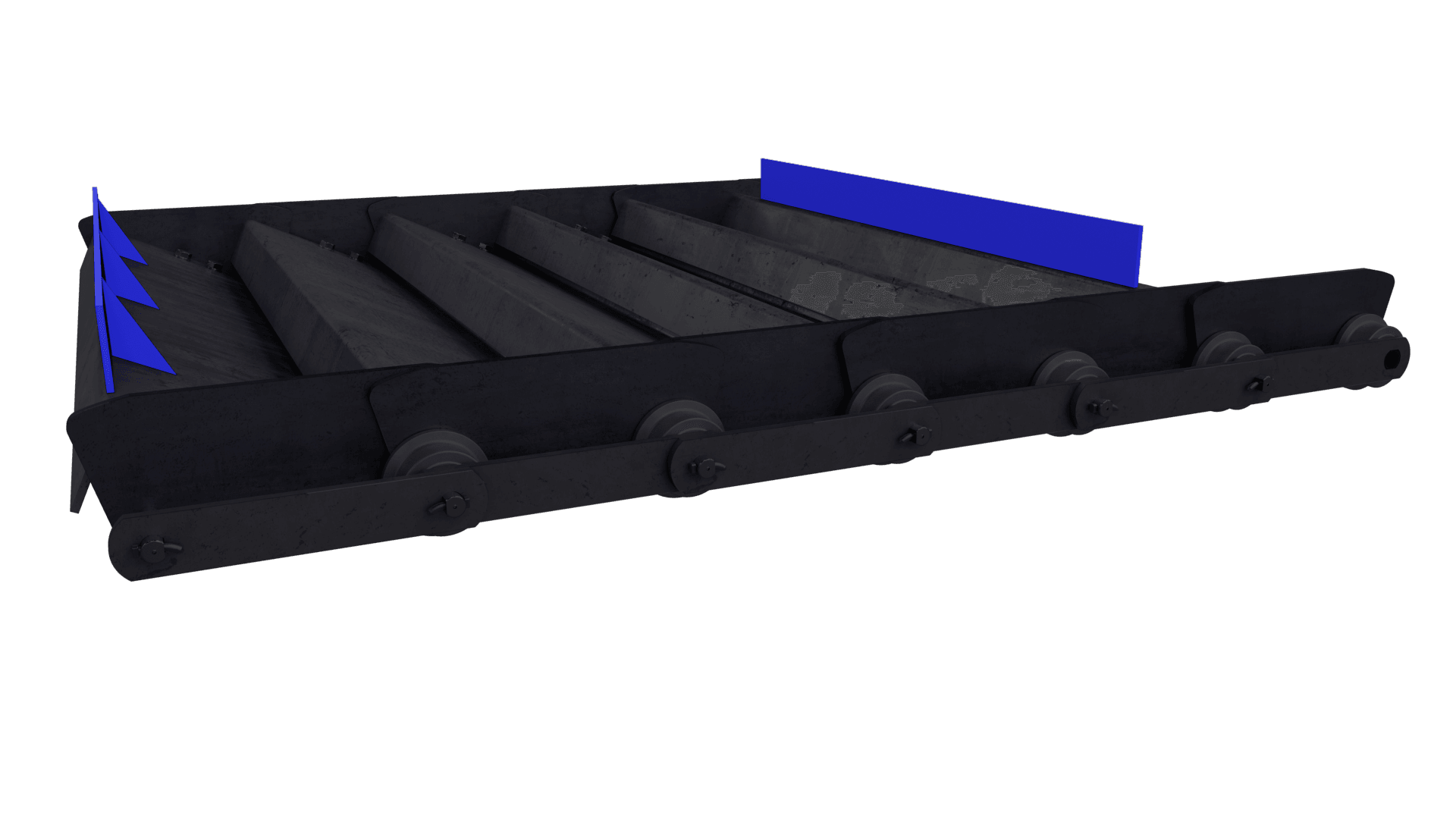

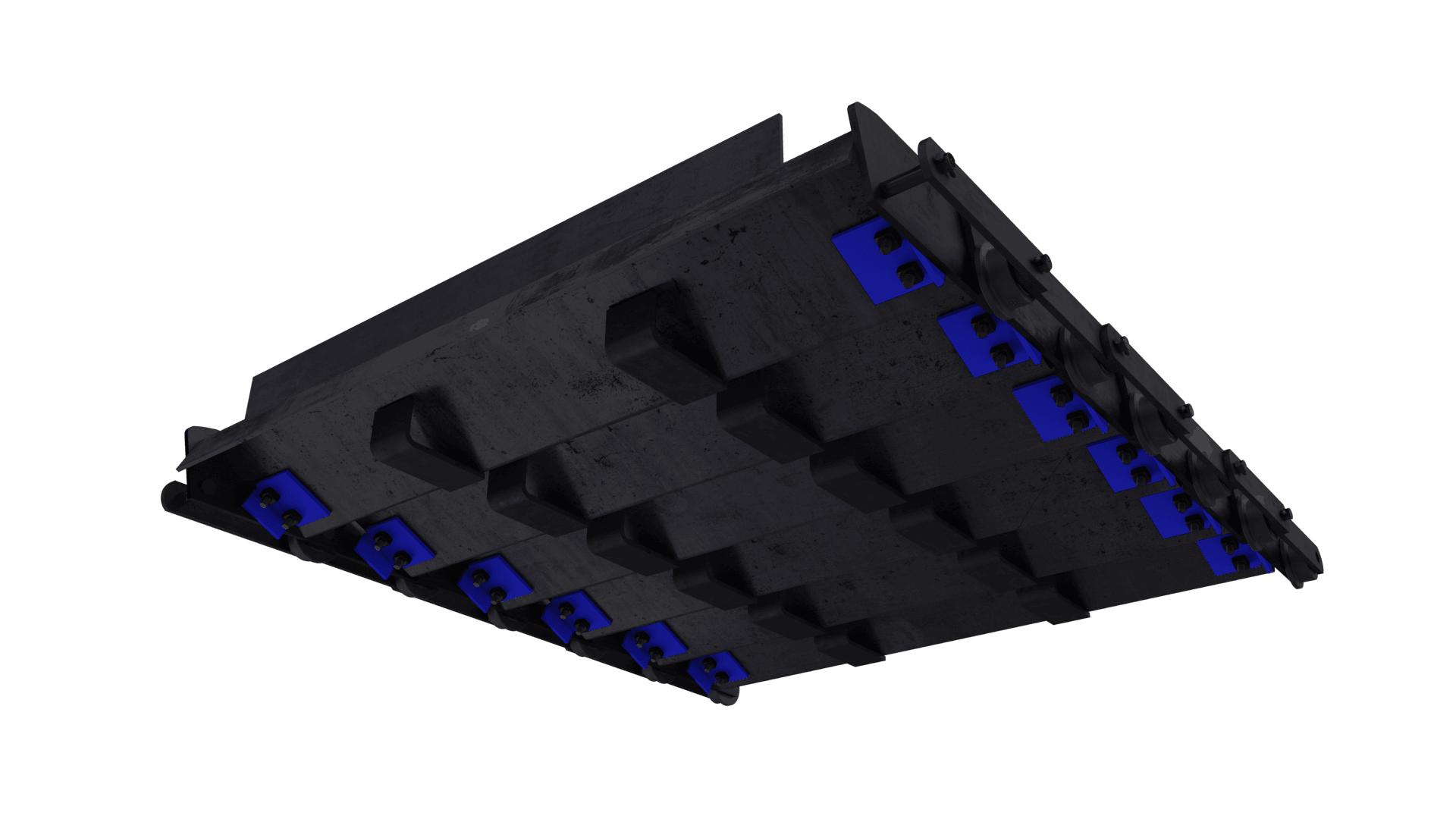

C3"×5# up to C6"×8.2# heavy-duty channel every other pitch
C1045 precision chain
C-channel, no wings, top impact shoes, formed trapezoids, inverted angle (for keeping hot material off the belt)
consistent material flow.

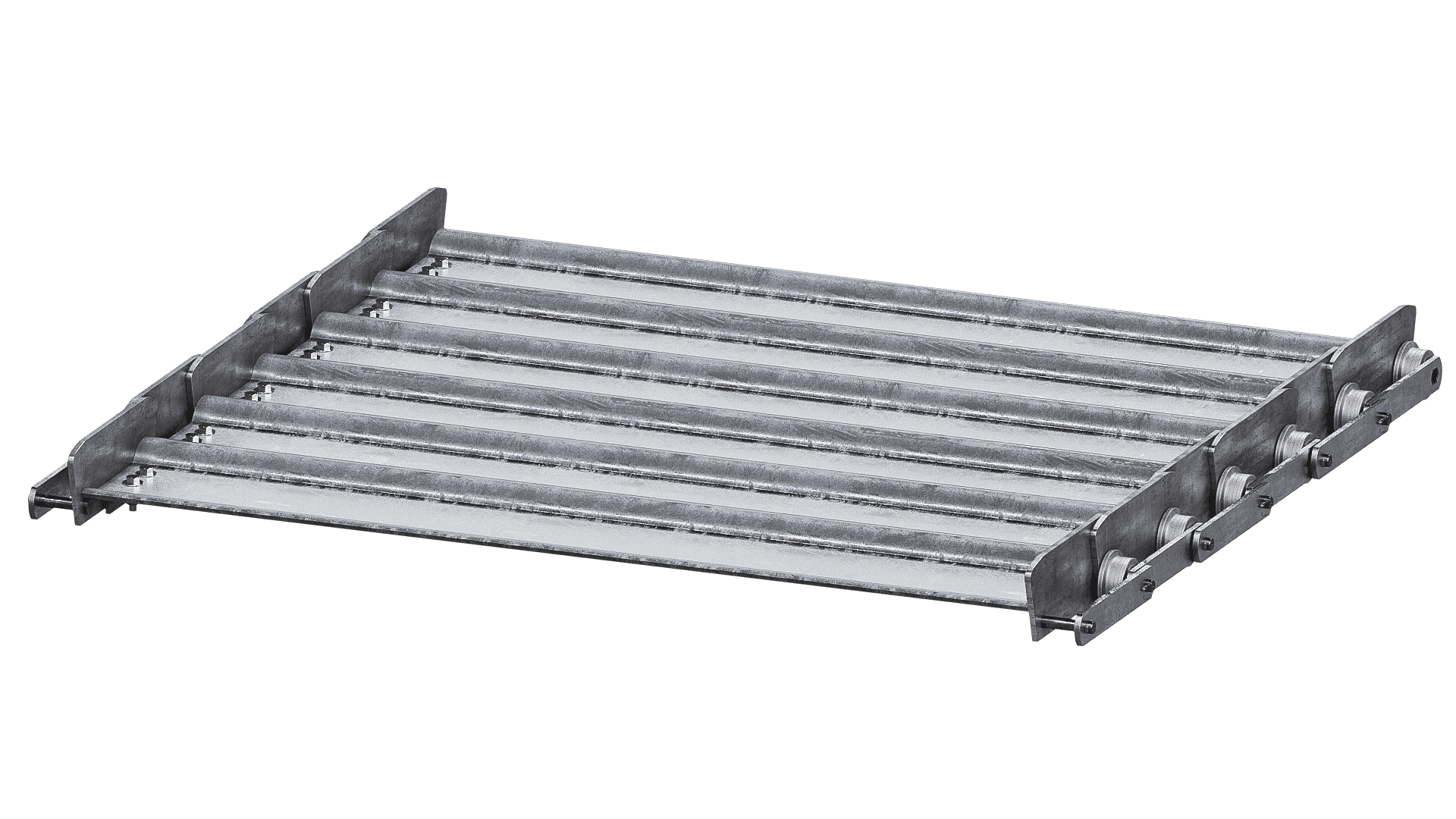

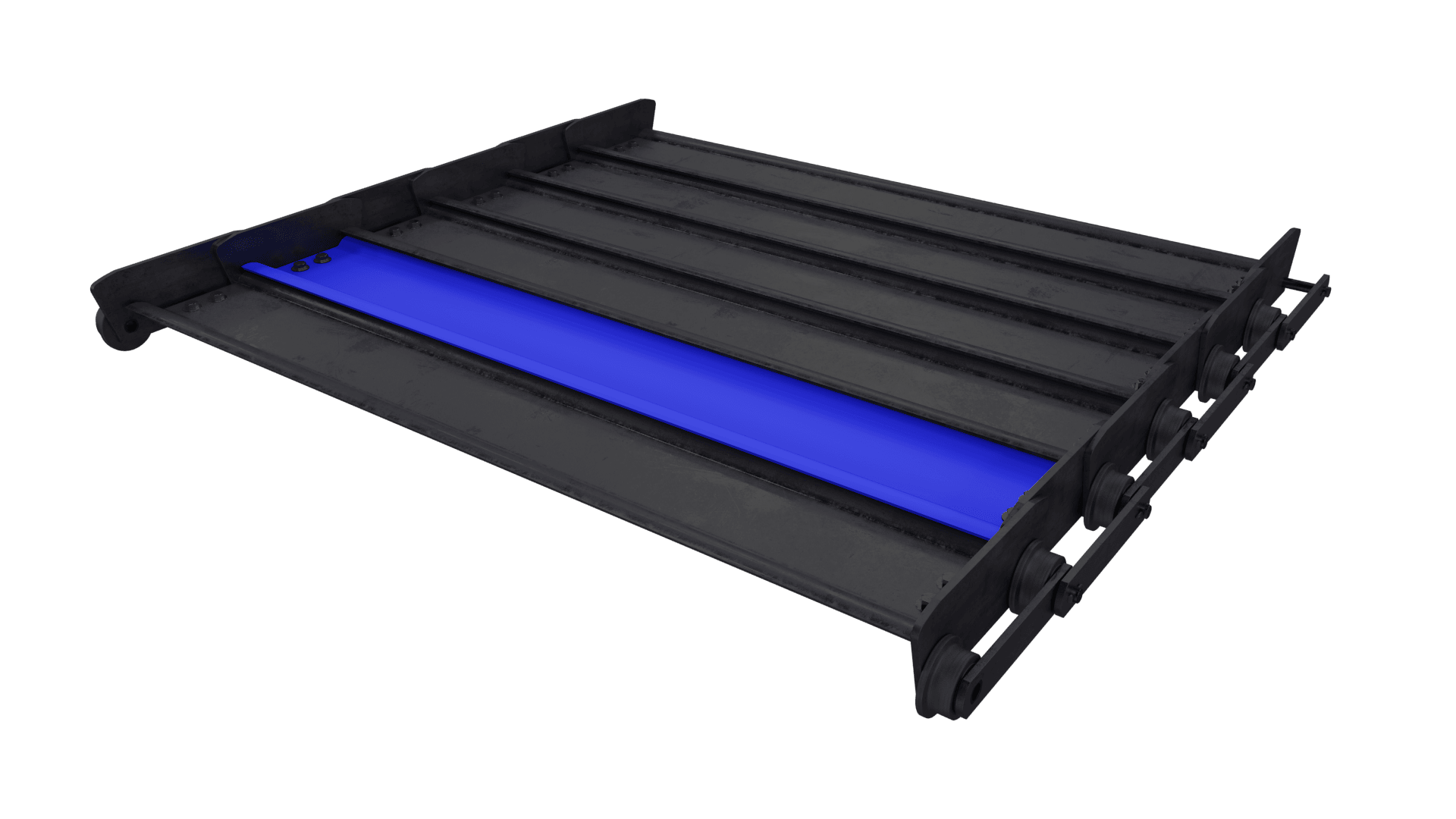

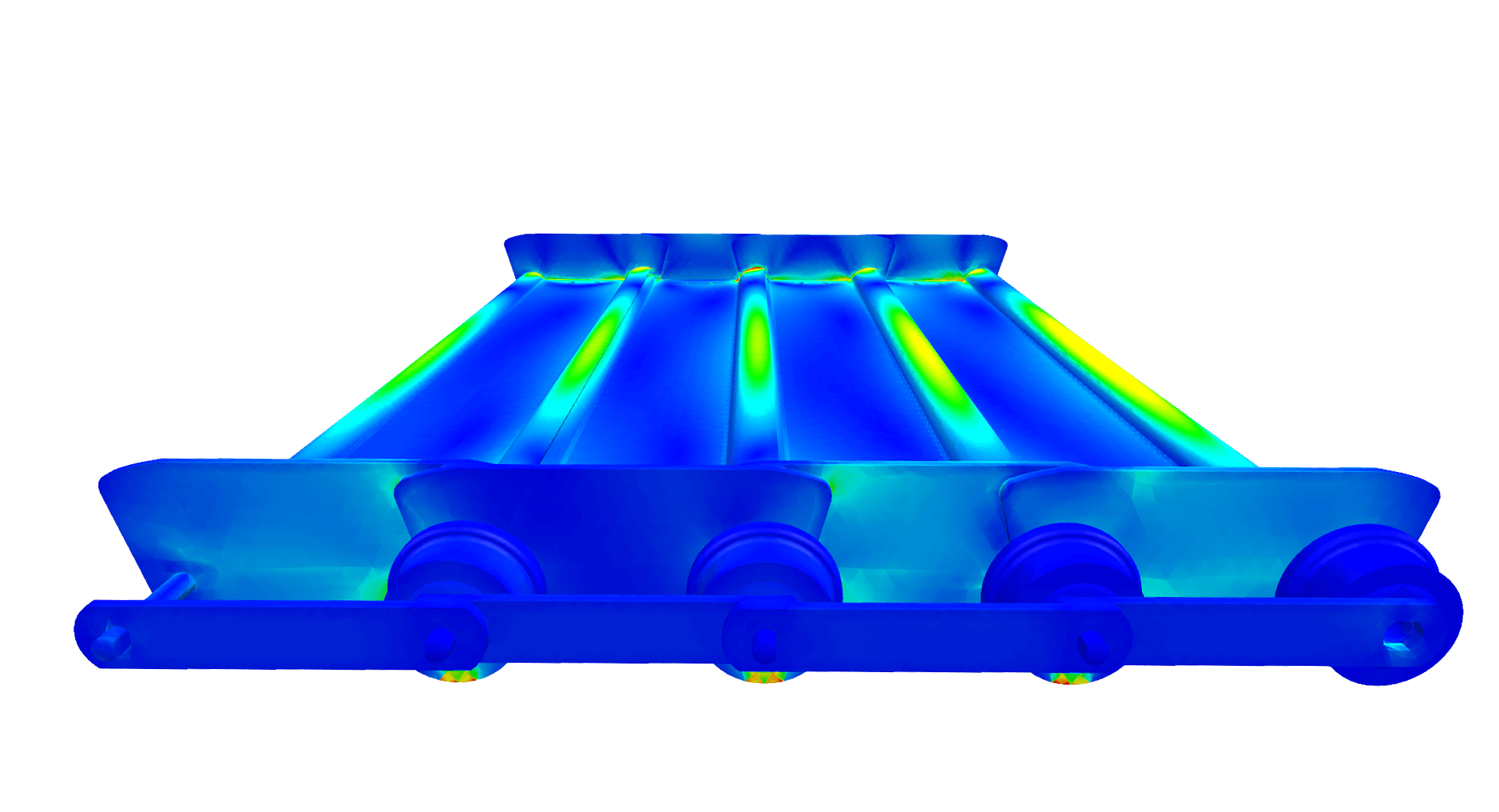

Apron pan conveyor belts are made of overlapping steel pans that mount to heavy-duty chains to form the conveying surface. The double-beaded pan geometry creates a tight conveying surface that resists spillage between pans, absorbs impact, and withstands high-temperature materials.
Apron pan belts handle heavy, large, or abrasive materials in demanding industrial environments, from sheared scrap and slag in recycling and foundry operations to large components in manufacturing facilities. Compared to other roller chain belt types, the apron pan provides the best impact absorption for high-impact infeed applications and holds fines better than Z-pan belts. For powders and fine materials where a fully sealed surface is required, rubber combination belts remain the best choice.
Apron pan is one of two belt types compatible with Fluent's Extreme Heavy-Duty (X-HD) roller chain conveyors, alongside Z-pan.
Recycling and waste management
Foundries and metal processing facilities
Food processing plants
Garbage
Aluminum and other non-ferrous metals
Heavy manufacturing components
Cement (dry materials)
Aggregates (larger bulk materials)
Metal castings (raw materials.

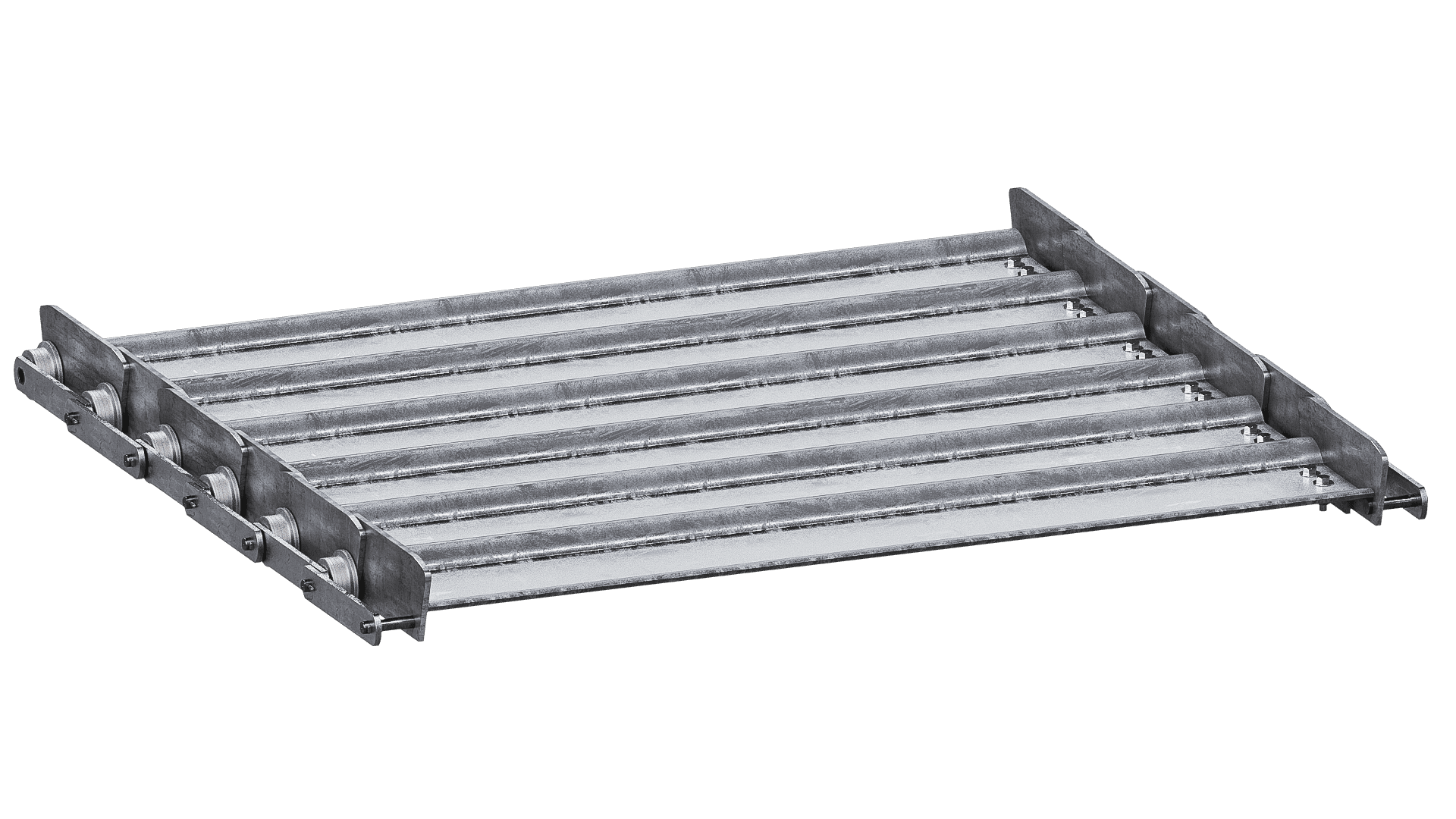

Recommended for heavy-duty continuous service and abrasive materials. The shallow profile is the workhorse choice for sustained throughput of sheared scrap, slag, and aggregates.
(deep double-beaded)
Recommended for large-capacity handling, hot materials, and inclined conveying. The deeper pan absorbs large-lump impact and retains material on incline runs.
If you're unsure which pan style matches your application, contact our engineering team with your material and throughput requirements.
Our apron pan belts include the following features:
Collect the dimensions of your apron pan belt conveyor. If you're not sure, contact our engineering team, and we can walk you through it. The full dimensioned reference, including component overview diagrams, is available on the apron pan belt dimensions guide.
Pan thickness
Belt width (inside sealing wings)
Belt width (overall width)
Roller spacing
Belt length
Roller diameter
Flange roller diameter (if applicable)
Roller width
Overall roller width (includes flanged roller)
Chain pitch
Side bar width
Side bar thickness
Single or double row
Sealing wing height
Sealing wing thickness
Cleat height (angle iron shown)
Cleat thickness
Total length
Offset from sealing wing
Support type / size
Support spacing
Support length
Wear pad thickness
Wear pad quantity
Wear pad spacing
Wear pad location
Wear pad size
We manufacture custom conveyors for the most demanding material handling environments on the planet. When you source through us, you're working with engineers who have over 100 years of combined experience troubleshooting roller chain conveyors and choosing belts for real-world performance.
