Replacement Z-pan belts for Fluent roller chain conveyors and OEM equipment. Built for sustained performance under heavy loads. Interlocking Z-shaped pans form troughs that capture loose, abrasive, and hot material on inclines.
Please note that not all belts can be configured with each option.
48, 60, 72, 84, 96, 108 inches; custom widths from 36–120 inches with all increments within that range
6, 9, and 12-inch options
1/4, 3/8, 1/2 inch
3, 4, 5, 7 inches
1/4, 3/8, 1/2 inch
2" × 1/4" thick C1045 precision die-punched sidebar standard; 3/8" and 1/2" thickness upgrades available
6,000 / 9,000 / 13,000 / 14,000 / 25,000 lbs
0.76–1.0" ID × 1.12–1.38" OD. Long 1018 solid, carburized, hardened to RC55–60, press-fit into inner side bars
3/4, 1 inch; 4142 precision-headed, heat-treated alloy
2-1/16, 3, 3-1/2, 4, 5 inches
2, 3, 4 inches; 1/4–3/8 inch thick angle; flat bar cleats also available

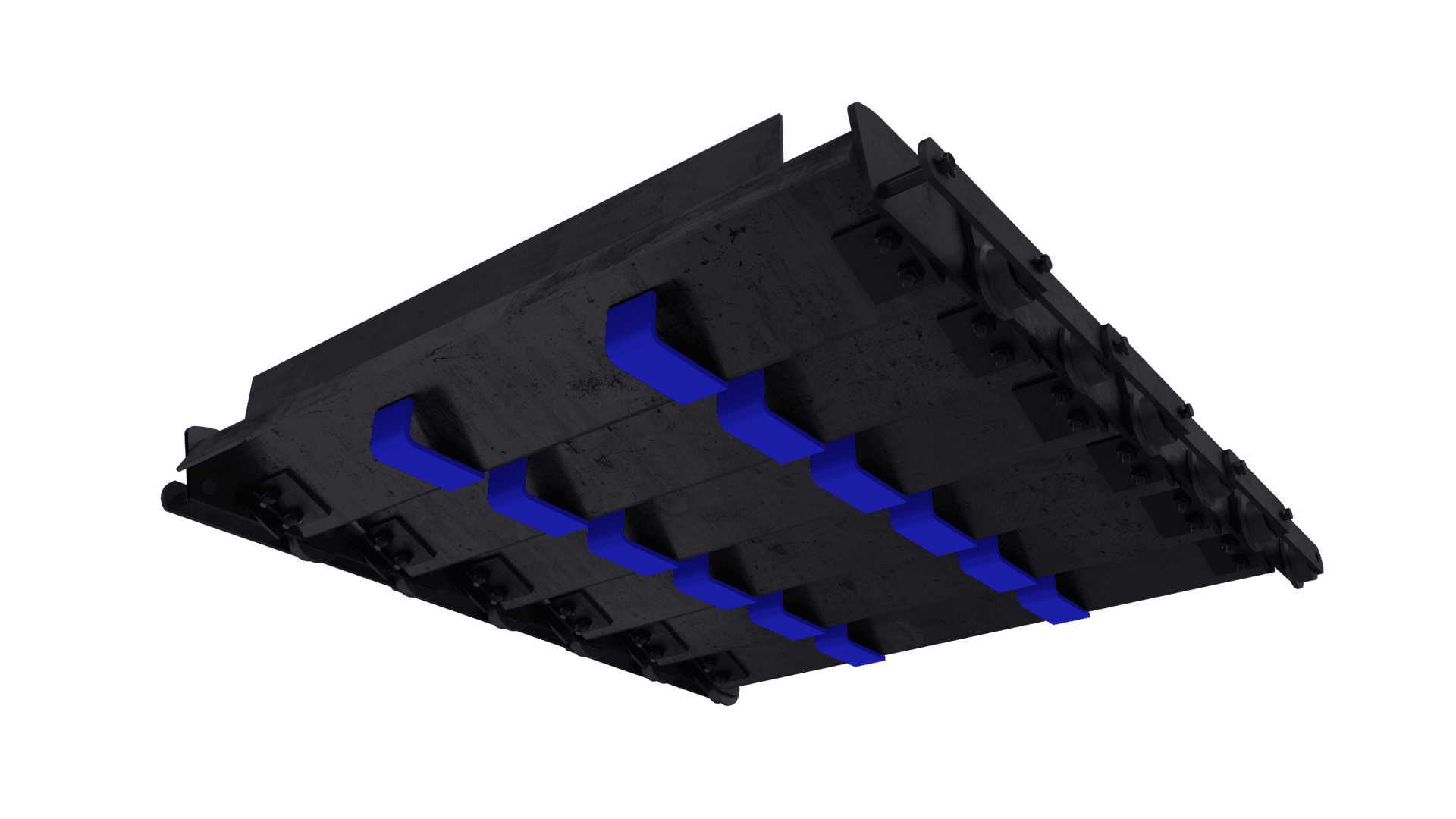

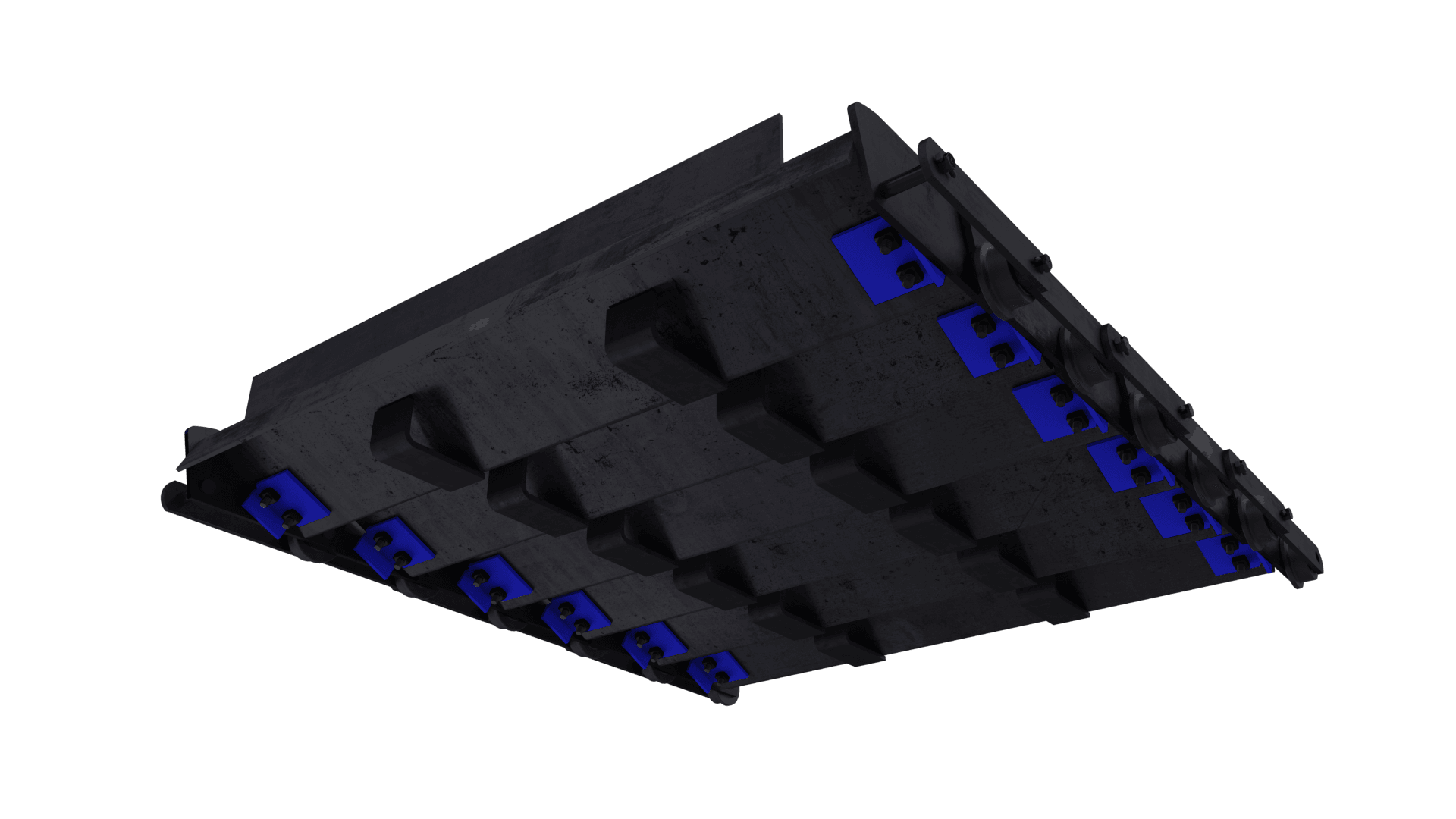

1/4, 3/8, 1/2 inch formed impact wear pads every other pitch
C-channel reinforcement available
C1045 precision chain
Flat bar cleats, impact pads
consistent material flow.

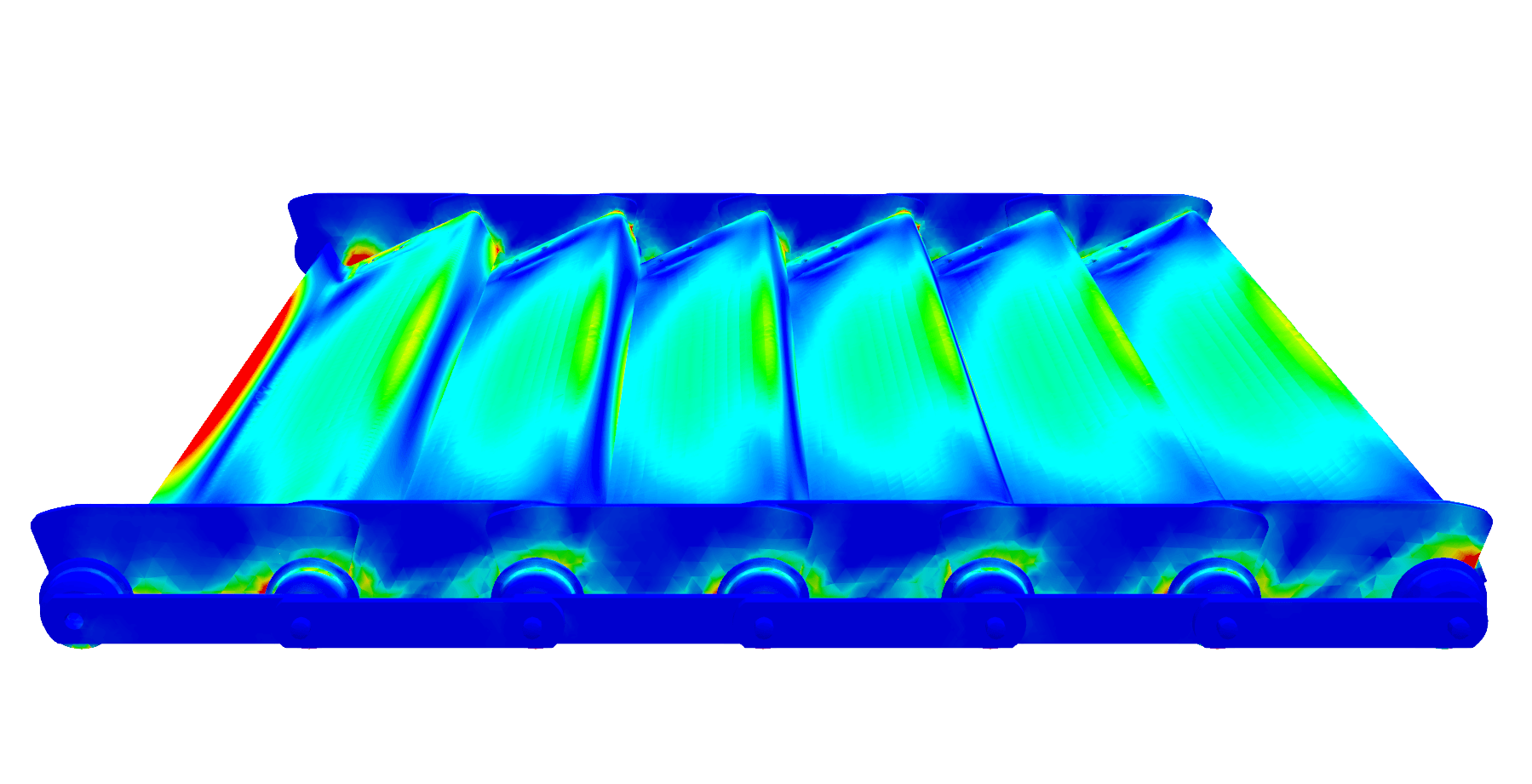

cross-section forms material-carrying troughs that capture loose material and prevent rollback on inclines. Stainless steel Z-pans withstand impact, abrasion, and extreme temperatures, making them the right call for sustained throughput of abrasive, heavy, or hot material on steep incline conveyors.

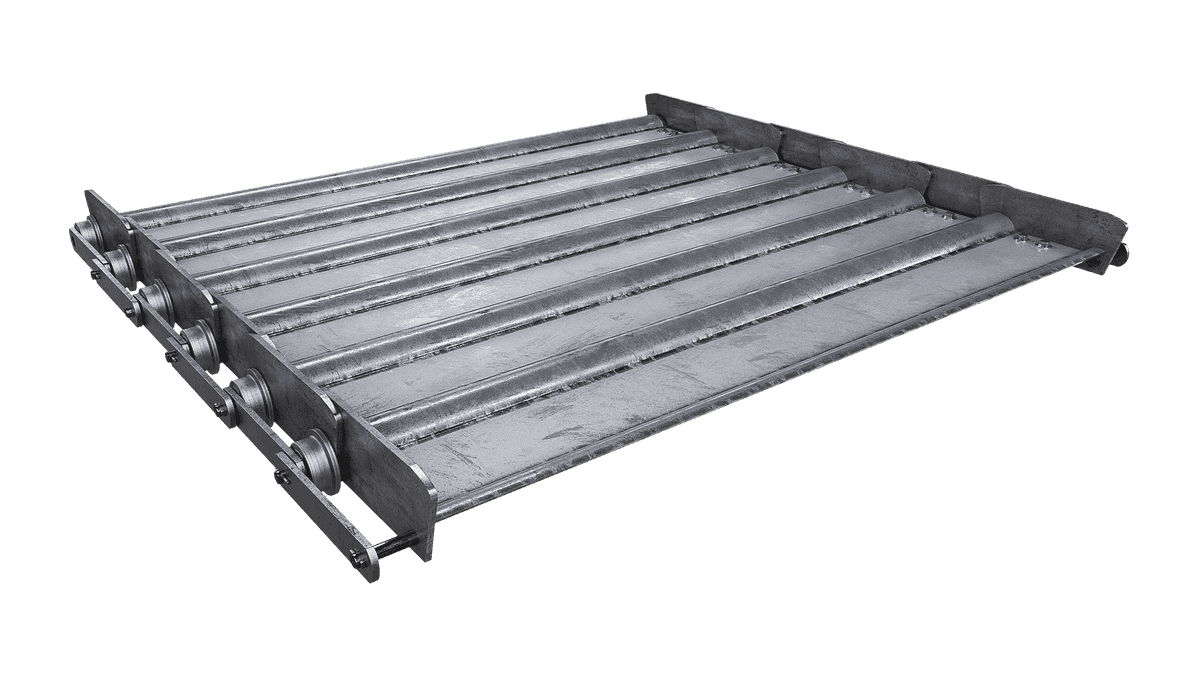

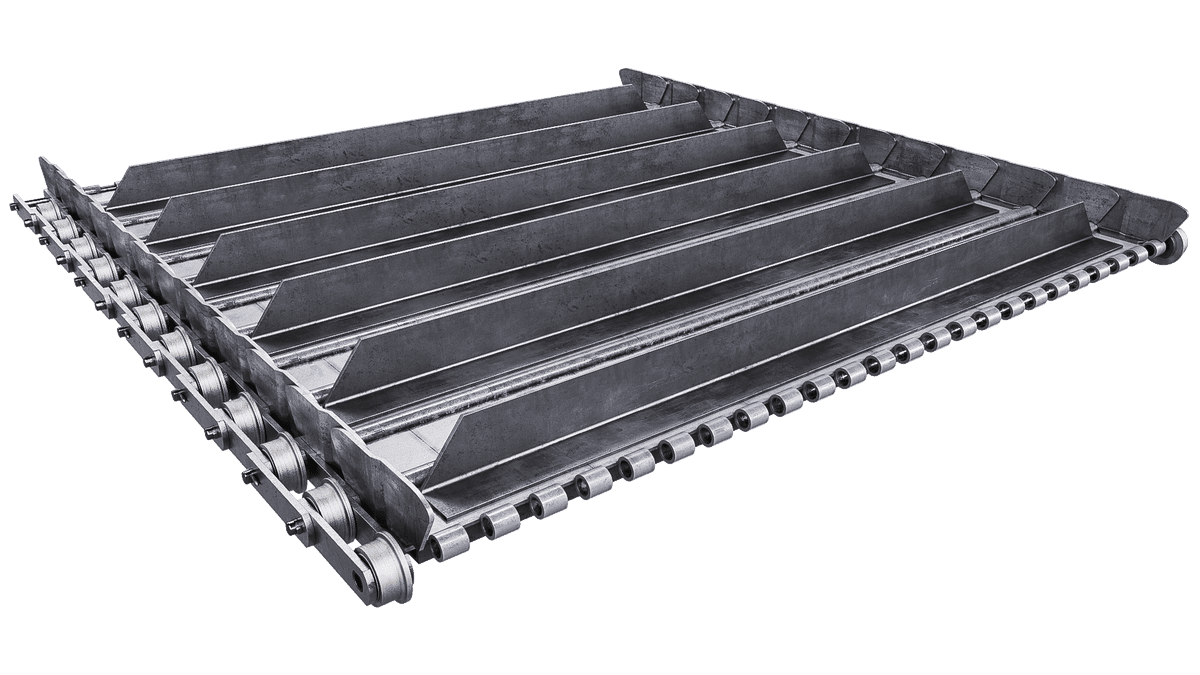

Z-pan sits alongside apron pan and hinged steel in the metal belt lineup, each optimized for a different job. Apron pan excels at high-impact infeed and fine containment. Hinged steel is the general-purpose workhorse for flat-to-incline runs. Z-pan owns the steep-incline, loose-and-abrasive material use case. See our guide on the best conveyor belt for steep inclines for the cross-belt comparison.
Z-pan is one of the only belts compatible with our Extreme Heavy-Duty (X-HD) roller chain conveyors, alongside apron pan. It's also the preferred metal belt for glass recycling applications, where the high shard content that fouls hinged steel doesn't affect the Z-pan's open trough geometry.
Food products
Aluminum and other non-ferrous metals
Heavy manufacturing components
Aggregates (smaller bulk materials)
Hot forging and slag
Wood pulp
Mining and aggregates
Recycling and waste management
Foundries and metal processing facilities
Food processing plants
Our Z-pan belts include the following:
Collect the dimensions of your Z-pan belt conveyor. If you're not sure, contact our engineering team and we can walk you through it. The full dimensioned reference, including component overview diagrams, is available on the Z-pan belt dimensions guide.
Pan thickness
Belt width (inside sealing wings)
Belt width (overall width)
Roller spacing
Belt length
Roller diameter
Flange roller diameter (if applicable)
Roller width
Overall roller width (includes flanged roller)
Chain pitch
Side bar width
Side bar thickness

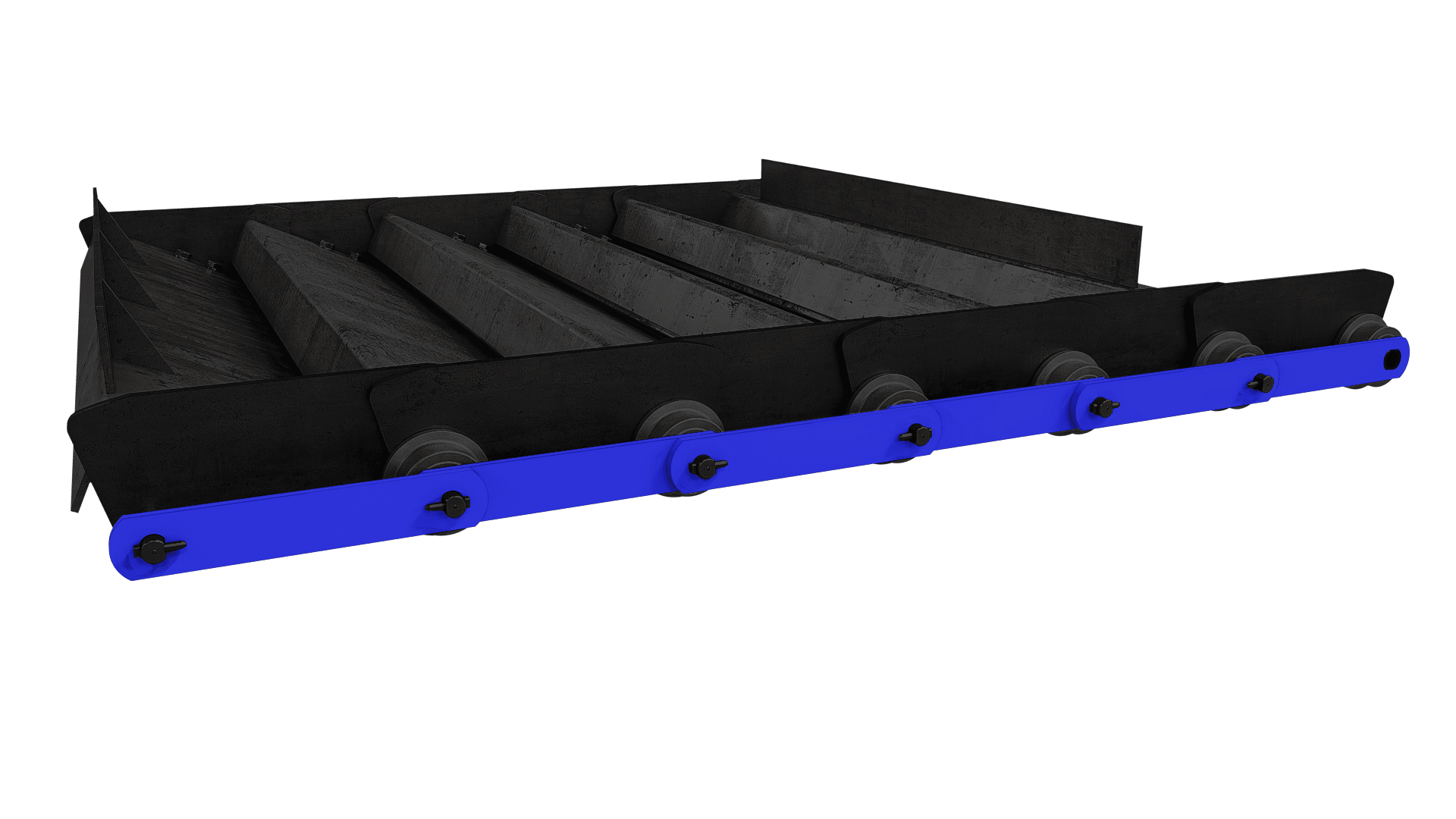

Single or double row

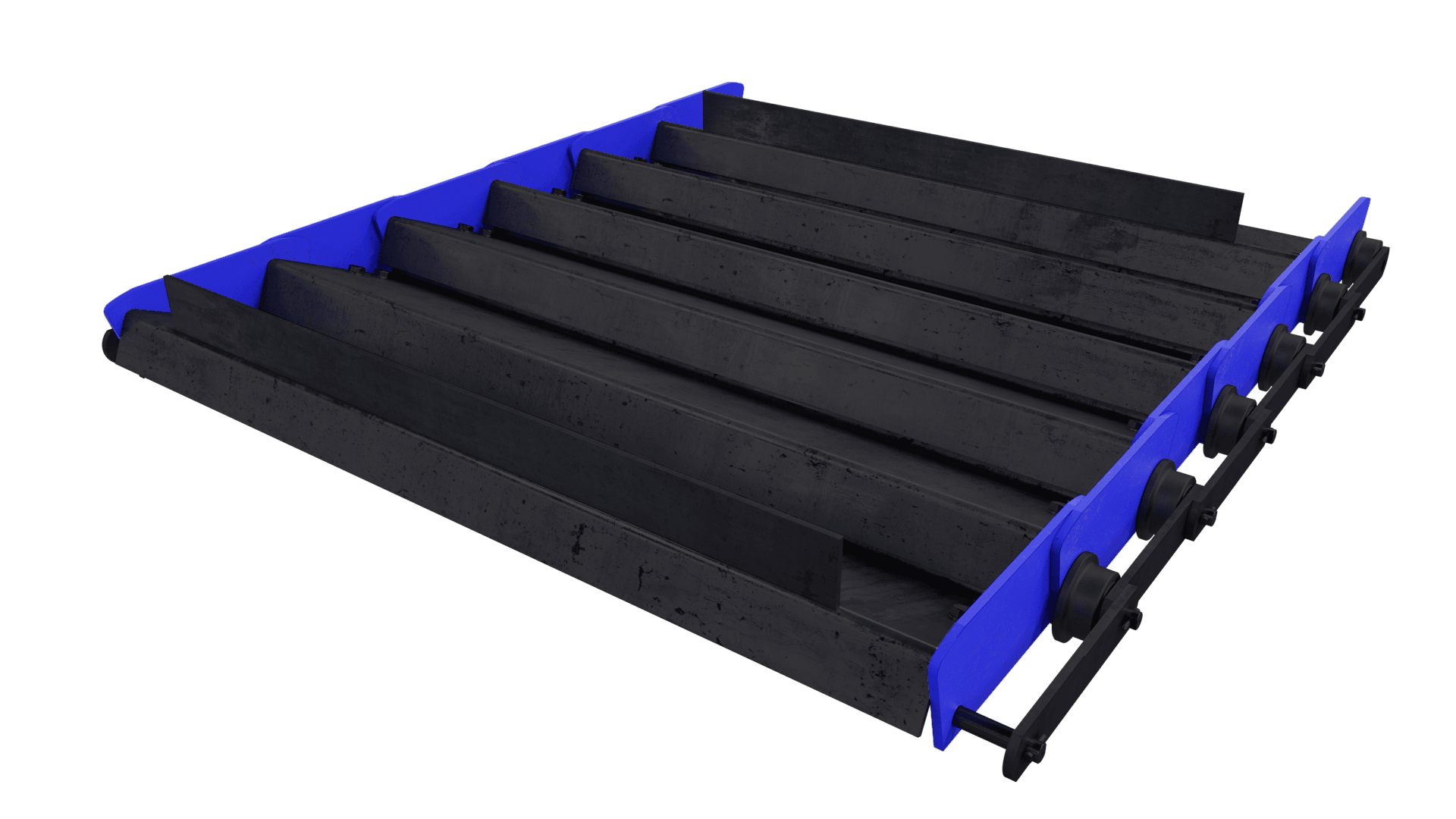

Sealing wing height
Sealing wing thickness
Cleat height (angle iron shown)
Cleat thickness
Total length
Offset from sealing wing
Wear pad thickness
Wear pad quantity
Wear pad spacing
Wear pad location
Wear pad size

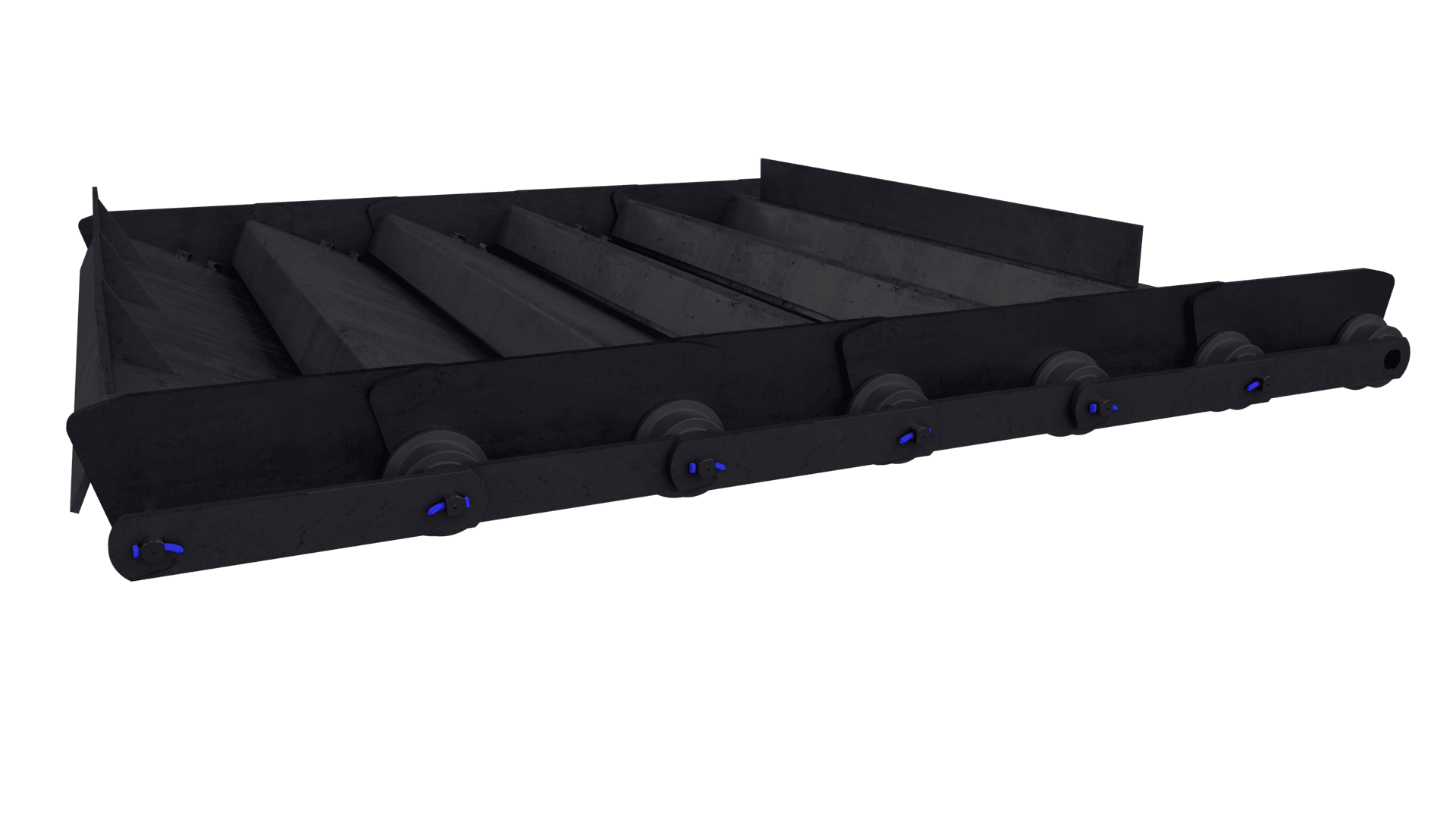

Z-pan belts are modular assemblies. Individual components wear at different rates and can be replaced independently, often extending service life before a belt replacement is warranted. We supply replacement parts for Z-pan belts, including:

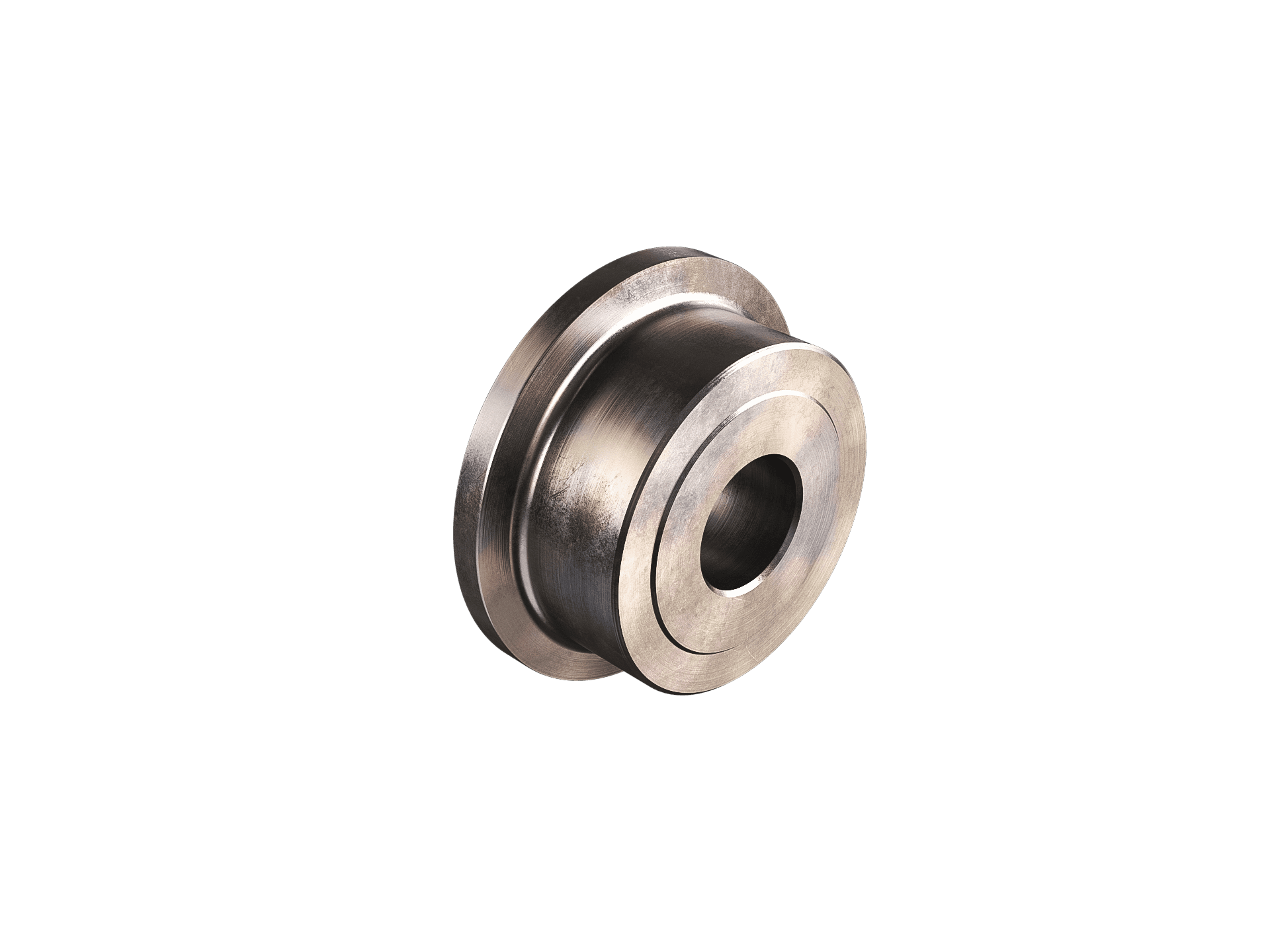

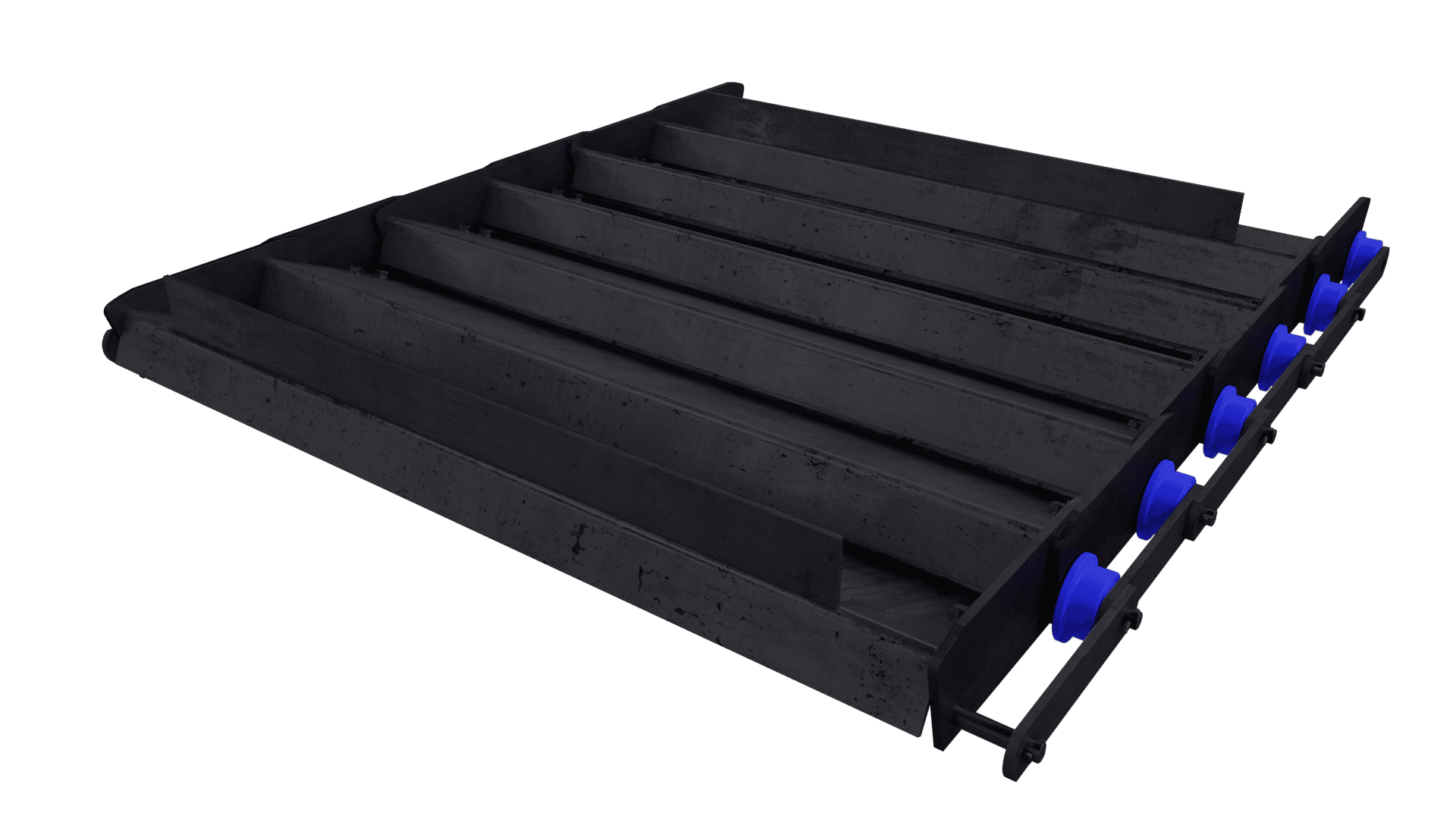

Flanged and flat-faced sintered steel
We manufacture custom conveyors for the most demanding material handling environments on the planet. When you source through us, you're working with engineers who have over 100 years of combined experience troubleshooting roller chain conveyors and choosing belts for real-world performance.
Ready to work with the experts?
We also carry the following replacement roller chain belts for your conveyors.
