Fluent supplies self-cleaning replacement wing pulleys for belt conveyors. Compatible with Fluent systems and retrofit installations. Standard, chevron, herringbone, and spiral wing patterns in CEMA, mine duty, and super duty classes for tail, bend, and return positions.
We supply the full catalog of wing pulleys from Superior Industries and PPI Global.
6"–60" (duty class dependent)
6"–72" (6"–46" in 2" increments, 51"–66" in 3" increments)

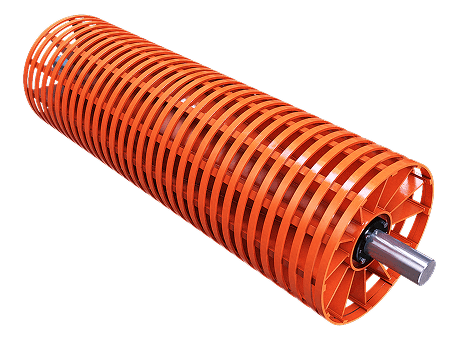

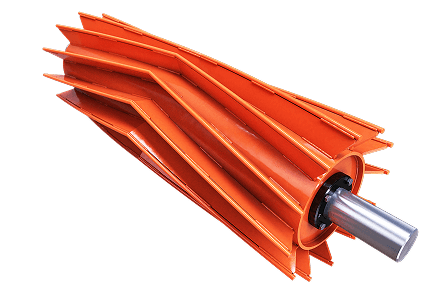

Standard, chevron, herringbone, spiral, round bar
CEMA, mine duty, super duty
QD, XT, taper-lock, keyless locking device
Flat or crowned
Abrasion-resistant (AR) steel contact bars

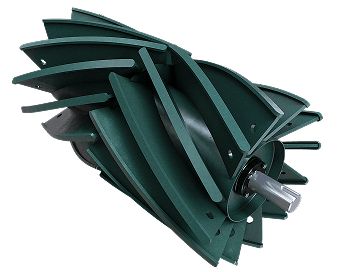

Center disc, standard on herringbone and on wings extending more than 6" from the shell
Static standard; dynamic balance available for belt speeds above 400 FPM
Wing pattern dictates how aggressively the pulley sheds material, how quietly it runs, and how it interacts with the belt. Match the pattern to material characteristics, splice type, and noise constraints.

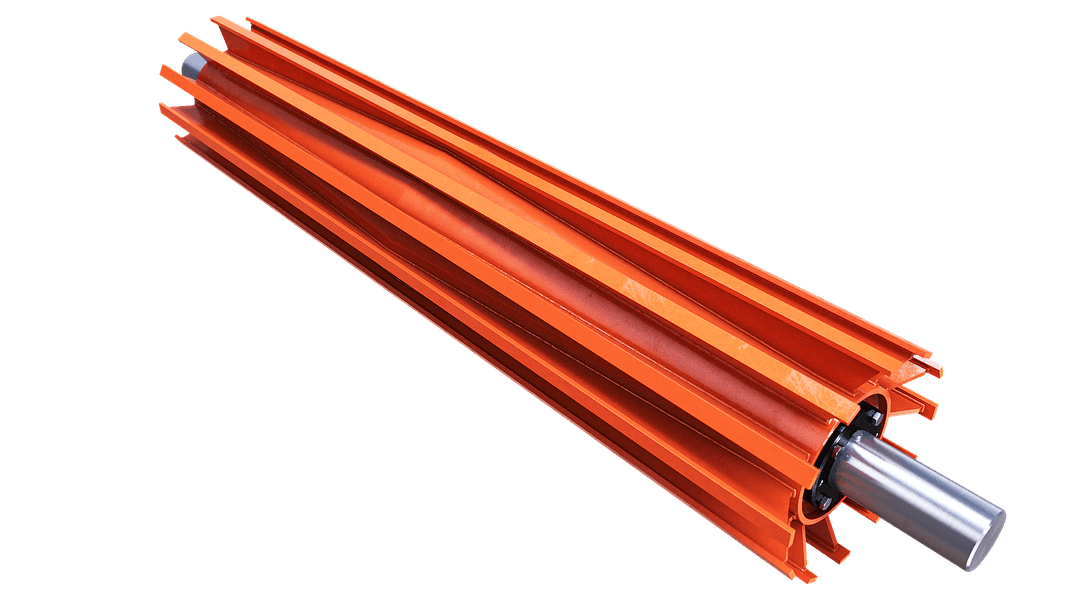

Flat radial wings welded perpendicular to the pulley shell. Wings impact the belt at intervals as the pulley rotates, dislodging carryback that would otherwise adhere to a smooth drum surface. Handle general-duty applications where material sheds easily and lodging is not a primary concern.
Best for: Single-stream recycling, paper recycling, and portable conveyor applications.
and reduce downtime.

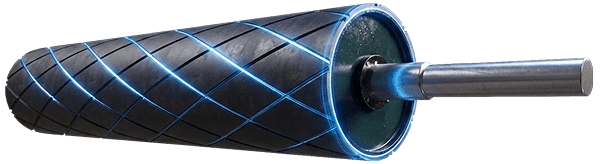

Specify drum pulleys when belts run dry and clean, when continuous full-belt support is required, when high-tension drives need the friction surface a lagged drum provides, or when intermittent wing impact would damage belt splices at high belt speed.

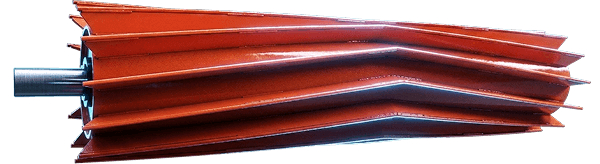

Specify wing pulleys when the conveyor handles wet materials, sticky carryback, or fine particles that cling to belt surfaces. The intermittent contact and open voids between wings allow material to fall away rather than recirculate to the drive end, where it accelerates belt wear and contaminates bearings.
Wing pulleys fail in distinct patterns from drum pulleys. Inspect wings on a duty-appropriate cadence and replace before secondary damage propagates to bearings, splices, or the belt itself.

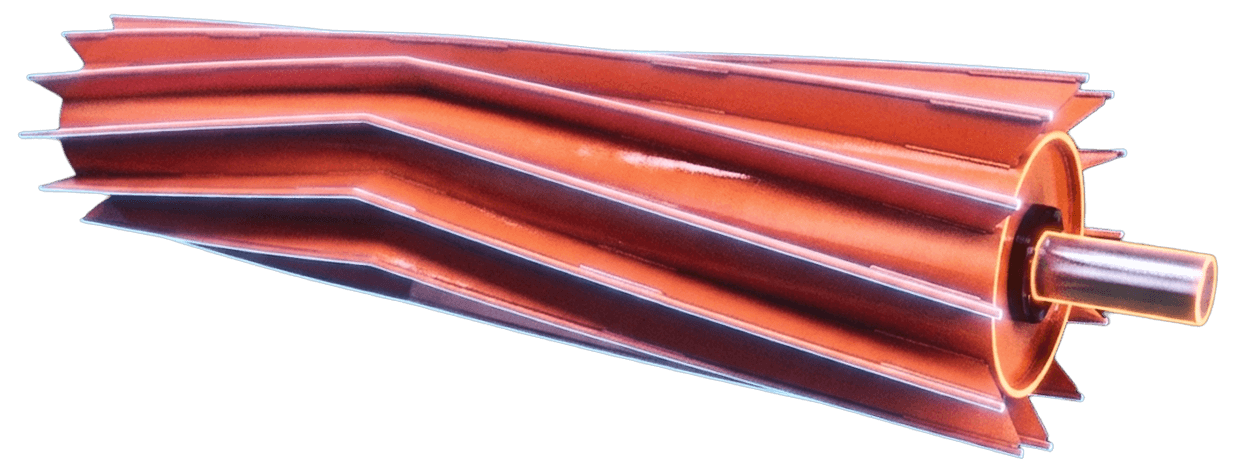

Provide the following specifications when ordering a replacement wing pulley:
Required specifications
Pulley location: tail, bend, or return
Wing pattern: standard, chevron, herringbone, spiral, or round bar
Duty class: CEMA, mine duty, or super duty
Diameter and face width
Belt width
Face profile: flat or crowned
Shaft diameter and bearing centers
Hub and bushing type: QD, XT, TL, or KLD
Application details
Material type, moisture, and abrasiveness
Carryback severity
Belt speed and tension (T1 and T2)
Operating environment: indoor or outdoor, temperature, humidity
Conveyor type: e.g., slider bed, flat idler, or trough idler
Operating schedule and shift count
Fluent Conveyors designs and builds custom conveyors for recycling, waste management, and other demanding industries. The wing pulleys we sell are the same components we install on our own systems, specified by engineers who size, replace, and troubleshoot them every day.
Genuine Superior Industries and PPI wing pulleys
Standard, chevron, herringbone, spiral, and round bar patterns in CEMA, mine duty, and super duty classes
Diameters 6"–60" and face widths 6"–72" with custom configurations available
Application-matched specification by engineers familiar with the material you're moving
Standard configurations ship in 2–4 weeks; expedited options available
