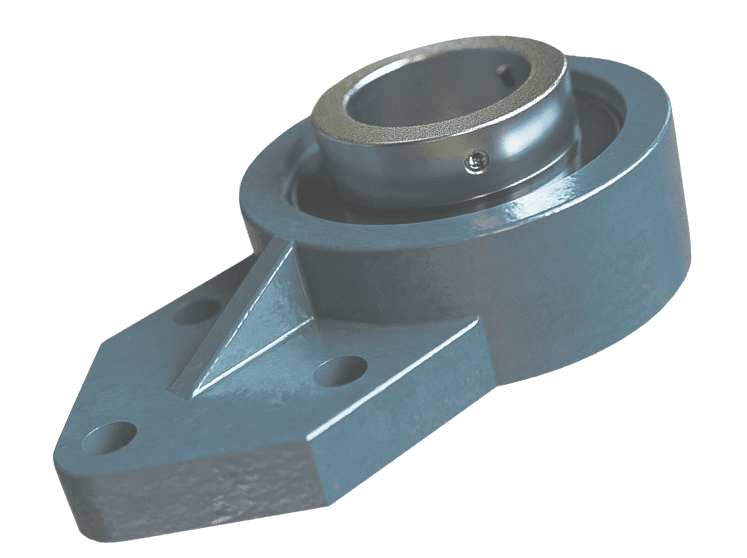

3-bolt flange bearings
for conveyors

Flat faces and accurately positioned bolt holes maintain proper alignment and load distribution.

Case-hardened rolling elements and precision-ground raceways reduce wear rates and extend L10 life ratings beyond industry standards.

Advanced sealing systems keep dust, moisture, and debris out of bearing assemblies in harsh industrial environments.

Convert between expansion and non-expansion configurations on-site without replacing the entire bearing unit.

Select Dodge Smart Sensor-ready housings are pre-drilled and tapped to accept OPTIFY vibration and temperature sensors.

Select Dodge bearing families include a limited lifetime warranty.

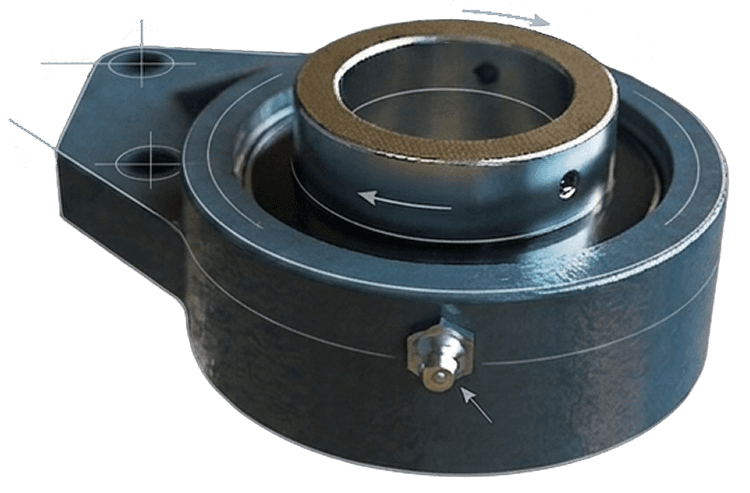

Determine if your conveyor uses a round bore or a hex bore bearing.

For a round bore, use calipers to measure the inside diameter directly across the bore. For a hex bore, place the calipers in one corner, skip a corner, and measure across to the next corner (leaving one corner in between).

Compare your measurement to common flange bearing sizes. Dodge flange bearings are available in shaft sizes from 1-1/8" to 5", depending on the series and bolt configuration.

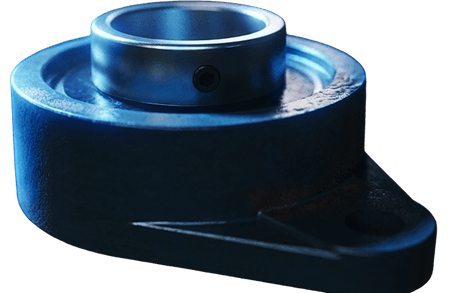

Assess your mounting surface and load requirements to select between 2-bolt (compact, light to moderate loads), 3-bolt (triangular pattern, moderate loads), or 4-bolt (maximum strength, heavy-duty applications) flange bearings.

Measure your mounting surface bolt hole spacing and flange thickness to order the right bearing model. Piloted flange bearings require a machined pilot bore for precise alignment.
