In 2022, U.S. asphalt mix producers turned out 441.9 million tons of asphalt mixture. Nearly every ton of pavement removed before repaving moves across a conveyor belt on the back of a cold planer. Integrally molded belts are the single-piece, cleated discharge belts that carry hot, abrasive millings from the cutting drum to the haul truck. This page covers how they're built, how they fail, and what drives service life.

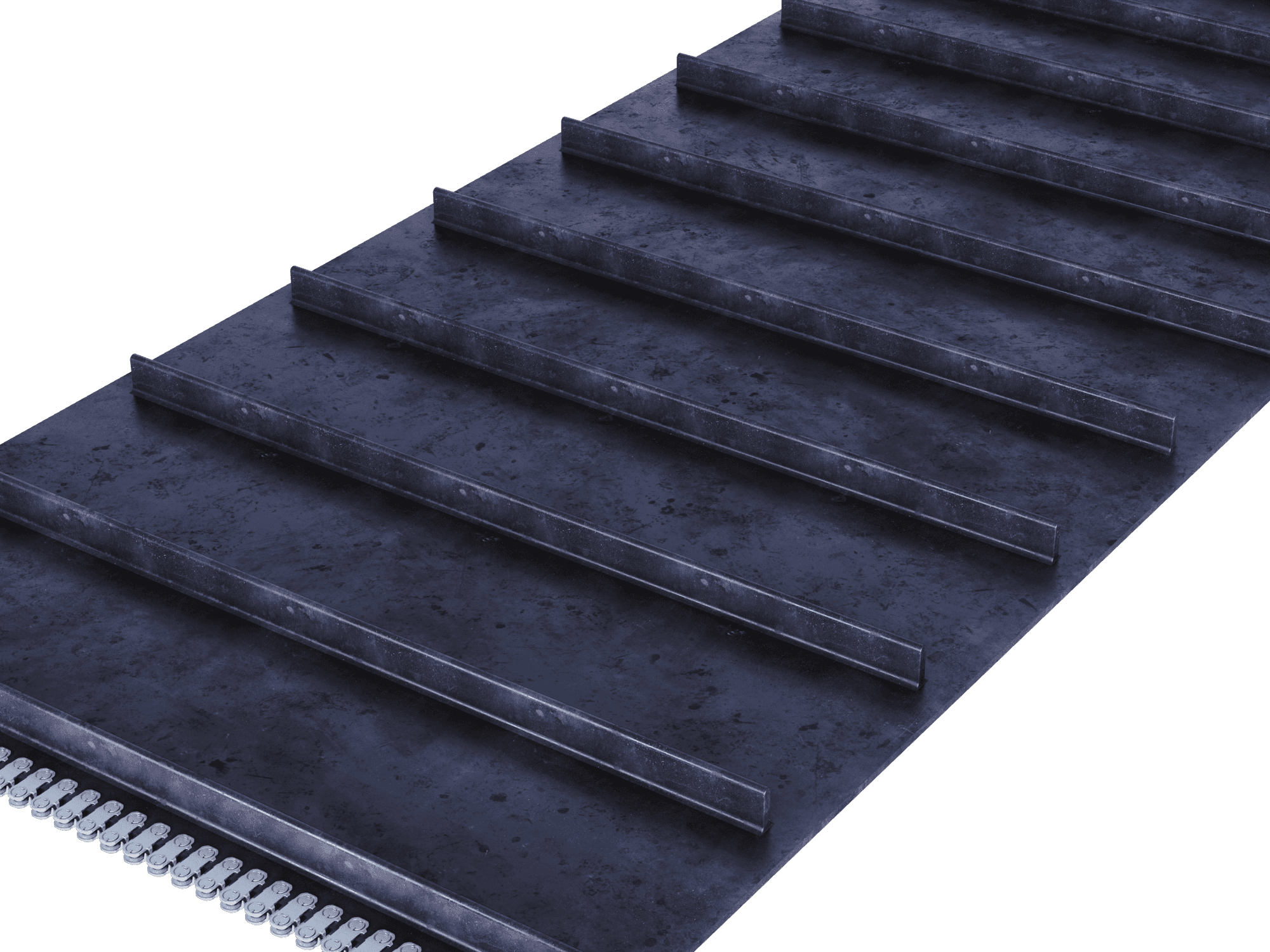

An integrally molded belt is a single cured unit. The carcass, the top and bottom covers, and the cleats are bonded into one continuous piece of material rather than assembled from a flat belt with cleats mechanically fastened or hot-vulcanized on top. Heavy-duty integrally molded belts handle applications that would rapidly degrade belts composed of assembled pieces.
Any cleat bond, splice joint, or layer interface on an assembled conveyor belt becomes a potential failure point within the first few hundred operating hours. Integrally molded construction removes failure points for better service in extreme conditions.
Milling belts have the compound chemistry and the construction to survive the impact, heat, and chemical wear.
The carcass is the load-bearing structure. It’s made of multiple plies of polyester or nylon fabric that carry tensile force down the belt and resist longitudinal stretch. Ply count and fabric weight are sized to the pulling force the belt sees at working tension (with headroom for impact spikes at loading). An undersized carcass stretches and mistracks; an oversized one adds stiffness that works against the small pulley diameters cold planers use.
The covers are the wear surfaces. The top handles impact and abrasion from the material, and the bottom handles friction against the pulleys and slider surface. Milling belts typically use a moderately oil-resistant (MOR) rubber compound that balances cut-and-gouge resistance against asphalt binder exposure.
Top cover thickness directly increases service life. Thicker top covers can take more abrasion damage, but they add weight and stiffness. Field practice on cold planers is to match top cover thickness to expected run hours between belt changes, not to specify the thickest available option.
Cleat height determines how much material the belt can carry up a given incline before the material slips back. Cleat spacing determines how fluid the discharge is. Too close, and material packs between cleats, too far, and retention drops off at the top of the run. Profile (chevron, bullhorn, plain, or proprietary shapes) determines how material flows off the belt at the discharge end. The right configuration is machine-specific and incline-specific.
An endless vulcanized splice approaches the mechanical properties of the surrounding belt material; a mechanical splice trades some service life for field-replaceability. The choice depends on how the operator wants to handle belt replacement.
